RGB & RGBW LED Strip Lights

Color-changing LED strip from classic 5050 RGB, slim 3838 and side-view RGB, RGBW (4-in-1), RGBWW and RGB+CCT (5-in-1) to dot-free COB — 41 models, with double-row boards and 24V constant-current runs to 49 ft (15 m).

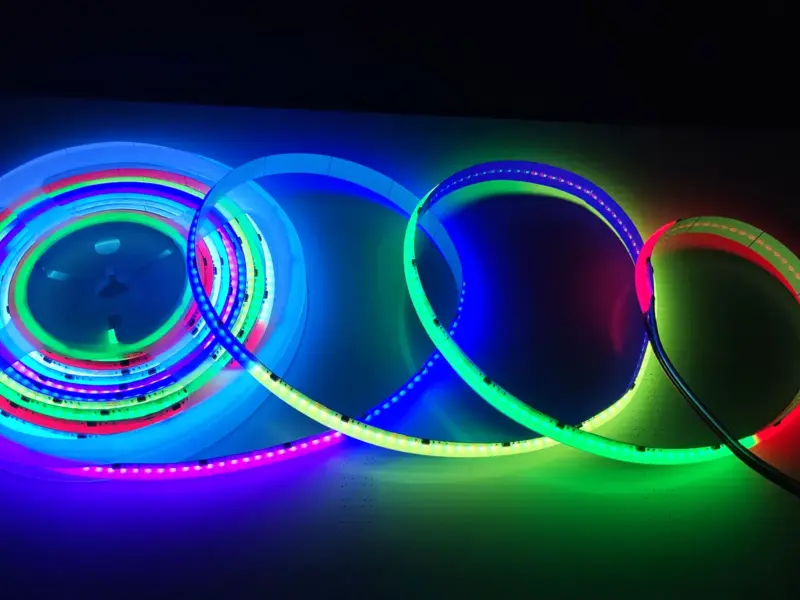

Close-up of dot-free RGB COB LED strip coils glowing in mixed colors
Color channels
RGB · RGBW · RGB+CCT
Supply range

Our color-changing strip program spans 41 models: 5050, 4040, 3838, 3535 and 2835 SMD, 020 side-view and dot-free COB constructions in RGB, RGBW (4 channels), RGBWW and RGB+CCT (5 channels) configurations, on 5V, 12V and 24V, plus double-row boards, an RGBW flexible light sheet and 24V constant-current rows that feed 49 ft (15 m) from one end. Every multicolor series uses analog color control — for pixel-level effects, see our Addressable line. Dedicated white channels render at Ra≥80 on the 5050 boards, with Ra≥90 on request at slightly lower output, and Ra≥90 on the 3838 + 2110 and COB families, and IP62 to IP68 versions are built on request; strip engineered for permanent wet locations is on our Outdoor line. UL/ETL Listed options are available, with documentation for your submittal package.

Key features

Why contractors spec our color-changing strip

Full color mixing

Saturated multicolor scenes from analog RGB channels, 5050 or single-chip 3838.

Dedicated-white RGBW options

A fourth white chip for true functional white, Ra≥80 standard and Ra≥90 on the 3838 + 2110 and COB boards.

Dot-free COB RGB

Up to 896 LEDs/m — continuous color with no visible pixels.

RGBWW & RGB+CCT

Color scenes and 2400–6500K tunable white on one strip, one 5-channel controller.

5V · 12V · 24V · 24V constant current

Voltage matched to the run — constant-current rows feed 49 ft (15 m) from one end.

UL/ETL Listed options available

Certification held by the original manufacturing partner. Documentation available upon request.

Product range

Seven color families, 41 models, one spec conversation

5050, 4040 & 3535 RGB LED Strip

Classic 5050 RGB LED strip for pure color scenes — 30 to 120 LEDs per meter at 7 to 19.2 W/m on 12V and 24V, controlled by any standard 3-channel (4-pin) RGB controller.

Model LEDs/m Color config Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Voltage
30 RGB 2.1 W/ft (7 W/m) 82 lm/ft (268 lm/m) @24V 37 lm/W 12V / 24V
60 RGB 4.4 W/ft (14.4 W/m) 193 lm/ft (634 lm/m) 44 lm/W 12V / 24V
96 RGB 7.0 W/ft (23 W/m) — — 24V
120 RGB 5.9 W/ft (19.2 W/m) 258 lm/ft (845 lm/m) 44 lm/W 12V / 24V
120 RGB 5.9 W/ft (19.2 W/m) 240 lm/ft (787 lm/m) 41 lm/W 24V
240 RGB 5.9 W/ft (19.2 W/m) 338 lm/ft (1,110 lm/m) 58 lm/W 24V

Tap a row to add that model to your quote list

Output is all three channels on (RGB white). Peak wavelengths R 625 nm · G 525 nm · B 470 nm. IP62 to IP68 versions are built on request.

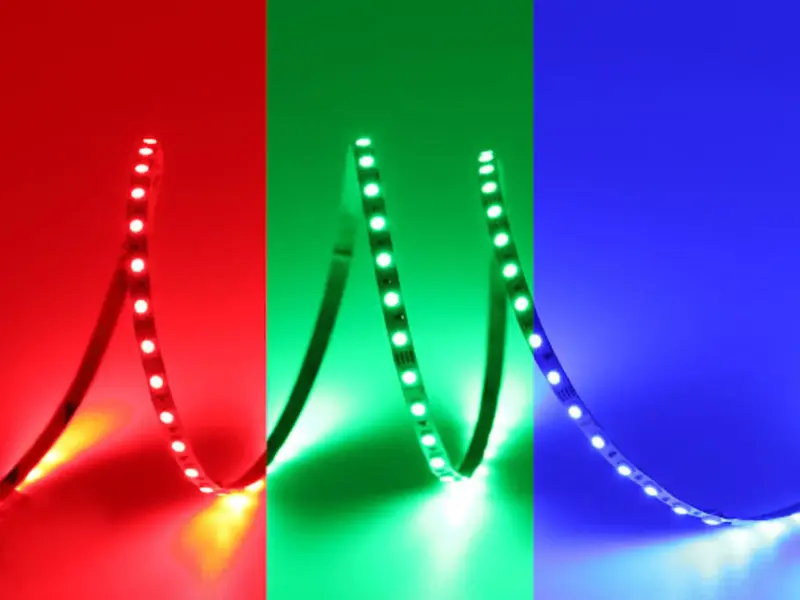

RGB 5050 LED strip shown side by side in red green and blue

Thin, Side-View & Wide-Gamut RGB LED Strip

The 3838 package puts red, green and blue in one chip, so a 120-LED strip fits on a 5 mm board for reveals and 8 to 12 mm boards for coves, at 8 to 16 W/m. A 020 side-view RGB strip emits from the edge of a 10 mm board for edge-lit panels and profiles.

Model LEDs/m Color config Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Voltage
120 RGB 2.4 W/ft (8 W/m) 110 lm/ft (360 lm/m) 45 lm/W 24V
120 RGB 2.9 W/ft (9.6 W/m) 109 lm/ft (358 lm/m) 37 lm/W 24V
120 RGB 4.3 W/ft (14 W/m) 179 lm/ft (588 lm/m) 47 lm/W 24V
120 RGB 3.7 W/ft (12 W/m) 154 lm/ft (504 lm/m) 42 lm/W 12V / 24V
120 RGB 3.7 W/ft (12 W/m) 83 lm/ft (271 lm/m) 23 lm/W 24V
240 RGB 4.9 W/ft (16 W/m) 215 lm/ft (704 lm/m) 44 lm/W 24V
60 RGB side-view 2.2 W/ft (7.2 W/m) 68 lm/ft (223 lm/m) 31 lm/W 12V / 24V

Tap a row to add that model to your quote list

Output is all three channels on. The 5 mm board is built as IP65H to IP67 on request, the others as IP62 to IP68. The 8 mm board's combined output is the manufacturer's measured all-channels figure; its green channel alone reads higher.

Slim 3838 RGB LED strip on a reel lit solid blue, 120 LEDs per meter

RGBW LED Strip (4-in-1)

A dedicated white channel alongside the color emitters — 5050 4-in-1 chips at 60 to 120 LEDs per meter, or separate white chips (5050 RGB + 2835 W, 3838 RGB + 2110 W) for spaces that switch between color scenes and functional lighting. 19.2 to 24 W/m, 12V and 24V.

Model LEDs/m Color config Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Voltage
60 RGBW 5.9 W/ft (19.2 W/m) 298–375 lm/ft (979–1229 lm/m) 51–64 lm/W 12V / 24V
84 RGBW 5.8 W/ft (19 W/m) 338 lm/ft (1,110 lm/m) 58 lm/W 24V
96 RGBW 7.3 W/ft (24 W/m) 432–505 lm/ft (1416–1656 lm/m) 59–69 lm/W 12V / 24V
120 RGBW 7.3 W/ft (24 W/m) 439–519 lm/ft (1440–1704 lm/m) 60–71 lm/W 12V / 24V
168 RGB + W (separate white chips) 5.9 W/ft (19.2 W/m) 357–405 lm/ft (1171–1328 lm/m) 61–72 lm/W 24V
240 RGB + W (separate white chips) 5.9 W/ft (19.2 W/m) 357–392 lm/ft (1171–1286 lm/m) 61–67 lm/W 24V

Tap a row to add that model to your quote list

Output is RGB plus the white channel, from RGB + 2700K to RGB + 6000K. White renders at Ra≥80 on the 5050 boards, with Ra≥90 on request at slightly lower output, and Ra≥90 on the 3838 + 2110 board. Output figures are pending on UT-RW84-12.

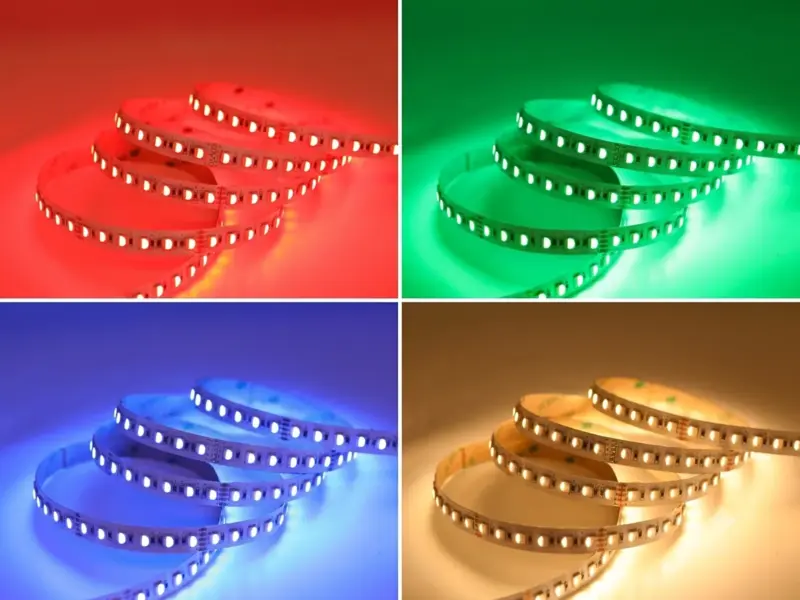

RGBW LED strip in four panels lit red green blue and warm white

COB RGB (Dot-Free)

Color changing without pixels — COB construction carries up to 896 LEDs per meter under a continuous phosphor line, so color reads as an unbroken band.

Model LEDs/m Color config Voltage
576 RGB 12V / 24V
576 RGB 5V
840 RGB 12V / 24V
630 RGB side-view 24V
784 RGBW 24V
896 RGBW 24V
840 RGBCW 24V

Tap a row to add that model to your quote list

Close-up of dot-free RGB COB LED strip coils glowing in mixed colors

RGBWW & RGB+CCT LED Strip (5-in-1)

Five channels on one strip: full RGB color plus tunable white — 5050 5-in-1 chips at 60 and 96 LEDs per meter, 5050 RGB beside 2835 CCT chips, or 3838 RGB beside 2110 CCT chips at 360 LEDs per meter. One run covers both the evening event and the workday.

Model LEDs/m Color config Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Voltage
60 RGB + tunable white 5.9 W/ft (19.2 W/m) 329 lm/ft (1078 lm/m) 56 lm/W 12V / 24V
72 RGB + tunable white 5.8 W/ft (19 W/m) — — 24V
90 RGB + tunable white 6.4 W/ft (21 W/m) — — 24V
96 RGB + tunable white 9.4 W/ft (30.74 W/m) 525 lm/ft (1723 lm/m) 56 lm/W 12V / 24V
360 RGB + tunable white (separate chips) 7.3 W/ft (24 W/m) 375 lm/ft (1229 lm/m) 51 lm/W 24V
960 RGB + tunable white 4.9 W/ft (16 W/m) 293 lm/ft (960 lm/m) 60 lm/W 24V

Tap a row to add that model to your quote list

Output is every channel on; the tunable white pair alone gives 2400–6000K on the 5050 5-in-1 boards (652 to 1,043 lm/m at 80–90 lm/W) and 2700–6000K on the 3838 + 2110 board. White Ra≥80 on 5050, Ra≥90 on request at slightly lower output; Ra≥90 on 3838 + 2110. Output figures are pending on UT-RCCT72-12 and UT-RCCT90-12.

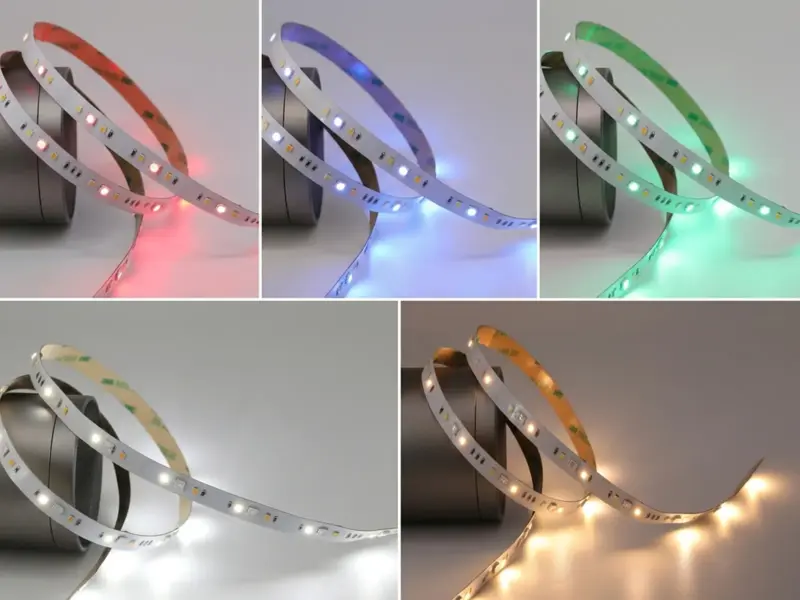

5-in-1 RGB plus CCT LED strip shown lit in five different colors

Double-Row & Triple-Row RGBW LED Strip

When one row is not enough: an 18 mm double-row board and a 36 mm triple-row board that pair a 5050 RGB row with 2835 white rows, 1,500 and 2,100 lm/m with RGB and 3000K white on together. The white rows are ordered in any of 12 CCTs from 1800K to 6500K or 10 single colors.

Model LEDs/m Color config Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Voltage
480 RGB + W (white row: any of 12 CCTs or 10 colors) 7.6 W/ft (25 W/m) 457 lm/ft (1500 lm/m) 60 lm/W 24V
360 RGB + W 10.7 W/ft (35 W/m) 640 lm/ft (2100 lm/m) 60 lm/W 24V

Tap a row to add that model to your quote list

Both boards are 24V, IP20 only; output is RGB + 3000K white.

Double-row RGBW LED strip on a reel, 5050 RGB and 2835 white chips side by side with R G B W pads

Long-Run RGB & RGBW LED Strip — 24V Constant Current

Constant-current 5050 boards that feed 49 ft (15 m) from one end with no mid-run injection and no color shift toward the far end: RGB at 11.3 and 14 W/m, RGBW at 11 and 19.2 W/m, and a 5-in-1 RGB+CCT board. One driver per corridor or cove.

Model LEDs/m Color config Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Voltage
60 RGB 3.4 W/ft (11.3 W/m) 145 lm/ft (475 lm/m) 42 lm/W 24V constant current
60 RGB 4.3 W/ft (14 W/m) 179 lm/ft (588 lm/m) 42 lm/W 24V constant current
60 RGBW 5.9 W/ft (19.2 W/m) 310–392 lm/ft (1018–1286 lm/m) 53–67 lm/W 24V constant current
60 RGBW 3.4 W/ft (11 W/m) 178–225 lm/ft (583–737 lm/m) 53–67 lm/W 24V constant current
60 RGB + tunable white 3.7 W/ft (12 W/m) 230 lm/ft (756 lm/m) 63 lm/W 24V constant current

Tap a row to add that model to your quote list

Constant-current strip runs only on a matched constant-current driver, specified on your quote; it does not run on a constant-voltage 24V supply. Cut increment 3.94 in (100 mm) on every row; IP62 to IP68 on request.

5050 RGBW 4-in-1 LED strip on a reel with +DC24V R G B W solder pads, 24V constant-current long-run board
Specifications

Master spec table

All 41 color-changing models in one table. Full photometric files and IES data ship with your quote.

Specs reviewed

How to read our model numbers: UT-R{LEDs per meter}-{PCB width mm}; prefixes: R RGB · RW RGBW (4 channels: 4-in-1 or RGB + white chips) · RCW RGBCW · RCCT RGBWW / RGB+CCT (5 channels); suffixes: SV side-view · LV 5V low-voltage · CSP chip-scale package · CC 24V constant current · CC-ECO constant current, low power · 2R / 3R double / triple row · SHEET flexible light sheet · CSP chip-scale package · WG wide color gamut · package suffix 2835 · 4040 · 3535 (45 = 4.5 mm board).

Tap a row for full specs.

Model LEDs/m Construction Color config Power W/ft (W/m) Output lm/ft (lm/m) Efficacy White CRI Voltage Cut increment Max run IP rating
30 5050 SMD RGB 2.1 W/ft (7 W/m) 82 lm/ft (268 lm/m) @24V 37 lm/W — 12V / 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20
60 5050 SMD · 10mm RGB 4.4 W/ft (14.4 W/m) 193 lm/ft (634 lm/m) 44 lm/W — 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
96 5050 SMD RGB 7.0 W/ft (23 W/m) — — — 24V 2.46 in (62.5 mm) 16 ft (5 m)/feed IP20
120 5050 SMD · 12mm RGB 5.9 W/ft (19.2 W/m) 258 lm/ft (845 lm/m) 44 lm/W — 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
120 4040 SMD · 10mm RGB 5.9 W/ft (19.2 W/m) 240 lm/ft (787 lm/m) 41 lm/W — 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
240 3535 SMD · 12mm RGB 5.9 W/ft (19.2 W/m) 338 lm/ft (1,110 lm/m) 58 lm/W — 24V 0.98 in (25 mm) 16 ft (5 m)/feed IP20
120 3838 SMD · 5mm · ultra-narrow RGB 2.4 W/ft (8 W/m) 110 lm/ft (360 lm/m) 45 lm/W — 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP65H–IP67 opt.
120 2835 SMD · 4.5mm · ultra-narrow RGB 2.9 W/ft (9.6 W/m) 109 lm/ft (358 lm/m) 37 lm/W — 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
120 3838 SMD · 8mm RGB 4.3 W/ft (14 W/m) 179 lm/ft (588 lm/m) 47 lm/W — 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
120 3838 SMD · 10mm RGB 3.7 W/ft (12 W/m) 154 lm/ft (504 lm/m) 42 lm/W — 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
120 3838 SMD · 8mm · wide color gamut RGB 3.7 W/ft (12 W/m) 83 lm/ft (271 lm/m) 23 lm/W — 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP67
240 3838 SMD · 12mm RGB 4.9 W/ft (16 W/m) 215 lm/ft (704 lm/m) 44 lm/W — 24V 0.98 in (25 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
60 020 side-view · 10mm · 0.8 mm LED height RGB side-view 2.2 W/ft (7.2 W/m) 68 lm/ft (223 lm/m) 31 lm/W — 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
60 5050 RGBW 4-in-1 · 12mm RGBW 5.9 W/ft (19.2 W/m) 298–375 lm/ft (979–1229 lm/m) 51–64 lm/W W: Ra≥80 · Ra≥90 opt. 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
84 5050 SMD RGBW 5.8 W/ft (19 W/m) 338 lm/ft (1,110 lm/m) 58 lm/W W: Ra≥90 24V 2.81 in (71.4 mm) 16 ft (5 m)/feed IP20
96 5050 RGBW 4-in-1 · 12mm RGBW 7.3 W/ft (24 W/m) 432–505 lm/ft (1416–1656 lm/m) 59–69 lm/W W: Ra≥80 · Ra≥90 opt. 12V / 24V 1.23 in (31.25 mm) @12V / 2.46 in (62.5 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
120 5050 RGBW 4-in-1 · 14mm RGBW 7.3 W/ft (24 W/m) 439–519 lm/ft (1440–1704 lm/m) 60–71 lm/W W: Ra≥80 · Ra≥90 opt. 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
168 5050 RGB + 2835 W · 12mm RGB + W (separate white chips) 5.9 W/ft (19.2 W/m) 357–405 lm/ft (1171–1328 lm/m) 61–72 lm/W W: Ra≥80 · Ra≥90 opt. 24V 3.28 in (83.33 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
240 3838 RGB + 2110 W · 10mm RGB + W (separate white chips) 5.9 W/ft (19.2 W/m) 357–392 lm/ft (1171–1286 lm/m) 61–67 lm/W W: Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
576 COB · dot-free RGB 4.3 W/ft (14 W/m) — — — 12V / 24V 1.23 in (31.25 mm) @12V / 2.46 in (62.5 mm) @24V 16 ft (5 m)/feed IP20
576 COB · dot-free RGB 2.1 W/ft (7 W/m) — — — 5V 0.82 in (20.83 mm) 6.5 ft (2 m)/feed IP20
840 COB · dot-free RGB 4.3 W/ft (14 W/m) — — — 12V / 24V 1.31 in (33.33 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20
630 COB · side-view RGB side-view 3.0 W/ft (10 W/m) — — — 24V 1.31 in (33.33 mm) 16 ft (5 m)/feed IP20
784 COB · dot-free RGBW 5.8 W/ft (19 W/m) — — W: Ra≥90 24V 2.81 in (71.42 mm) 16 ft (5 m)/feed IP20
896 COB · dot-free RGBW 5.8 W/ft (19 W/m) — — W: Ra≥90 24V 2.46 in (62.5 mm) 16 ft (5 m)/feed IP20
840 COB · dot-free RGBCW 6.4 W/ft (21 W/m) — — W: Ra≥90 24V 1.41 in (35.71 mm) 16 ft (5 m)/feed IP20
60 5050 RGB+CCT 5-in-1 · 12mm RGB + tunable white 5.9 W/ft (19.2 W/m) 329 lm/ft (1078 lm/m) 56 lm/W W: Ra≥80 · Ra≥90 opt. 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
72 5050 RGB + 2835 CCT RGB + tunable white 5.8 W/ft (19 W/m) — — W: Ra≥90 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20
90 5050 RGB + 2835 CCT RGB + tunable white 6.4 W/ft (21 W/m) — — W: Ra≥90 24V 3.28 in (83.3 mm) 16 ft (5 m)/feed IP20
96 5050 RGB+CCT 5-in-1 · 12mm RGB + tunable white 9.4 W/ft (30.74 W/m) 525 lm/ft (1723 lm/m) 56 lm/W W: Ra≥80 · Ra≥90 opt. 12V / 24V 1.23 in (31.25 mm) @12V / 2.46 in (62.5 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
360 3838 RGB + 2110 CCT · 12mm RGB + tunable white (separate chips) 7.3 W/ft (24 W/m) 375 lm/ft (1229 lm/m) 51 lm/W W: Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
960 CSP RGB+CCT · 12mm RGB + tunable white 4.9 W/ft (16 W/m) 293 lm/ft (960 lm/m) 60 lm/W W: Ra≥90 24V 1.64 in (41.67 mm) 16 ft (5 m)/feed IP20
480 2835 W + 5050 RGB · 18mm · double row RGB + W (white row: any of 12 CCTs or 10 colors) 7.6 W/ft (25 W/m) 457 lm/ft (1500 lm/m) 60 lm/W W: Ra≥80 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
360 2835 W + 5050 RGB · 36mm · triple row RGB + W 10.7 W/ft (35 W/m) 640 lm/ft (2100 lm/m) 60 lm/W W: Ra≥80 24V 1.31 in (33.3 mm) 16 ft (5 m)/feed IP20
60 5050 SMD · 10mm · constant current RGB 3.4 W/ft (11.3 W/m) 145 lm/ft (475 lm/m) 42 lm/W — 24V constant current 3.94 in (100 mm) 49 ft (15 m) single feed IP20 · IP62–IP68 opt.
60 5050 SMD · 12mm · constant current RGB 4.3 W/ft (14 W/m) 179 lm/ft (588 lm/m) 42 lm/W — 24V constant current 3.94 in (100 mm) 49 ft (15 m) single feed IP20 · IP62–IP68 opt.
60 5050 RGBW 4-in-1 · 12mm · constant current RGBW 5.9 W/ft (19.2 W/m) 310–392 lm/ft (1018–1286 lm/m) 53–67 lm/W W: Ra≥80 24V constant current 3.94 in (100 mm) 49 ft (15 m) single feed IP20 · IP62–IP68 opt.
60 5050 RGBW 4-in-1 · 12mm · constant current · low power RGBW 3.4 W/ft (11 W/m) 178–225 lm/ft (583–737 lm/m) 53–67 lm/W W: Ra≥80 24V constant current 3.94 in (100 mm) 49 ft (15 m) single feed IP20 · IP62–IP68 opt.
60 5050 RGB+CCT 5-in-1 · 15mm · constant current RGB + tunable white 3.7 W/ft (12 W/m) 230 lm/ft (756 lm/m) 63 lm/W W: Ra≥80 24V constant current 3.94 in (100 mm) 49 ft (15 m) single feed IP20 · IP62–IP68 opt.
840 CSP · chip-scale · high-density · 12mm RGBW 6.4 W/ft (21 W/m) — — W: Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
800 2835 RGBW · flexible sheet 18.9 × 9.4 in (480 × 240 mm) RGBW 12.8 W/ft (42 W/m) — — W: Ra≥90 24V 1.89 in (48 mm) grid — IP20

Tap a row to add that model to your quote list

Output is every channel on: RGB white for RGB rows, RGB plus white (2700K to 6000K range) for RGBW rows, all five channels for RGB+CCT rows. Rows showing a dash are awaiting photometric data. IP62 to IP68 versions of the IP20 models are built on request.

Waterproof versions

IP options

The same strip, sealed for damp, wet or submerged locations. Pick the rating and we build the sealed version to order.

Cross-sections are illustrative; the same IP code can be built more than one way. The IP20 models in the tables are built in IP62 to IP68 versions on request. IP65H is the heat-shrink version. Sealing adds width and height and can shift color slightly, so the sealed size is confirmed with your quote.
Applications

Where color-changing strip earns its keep

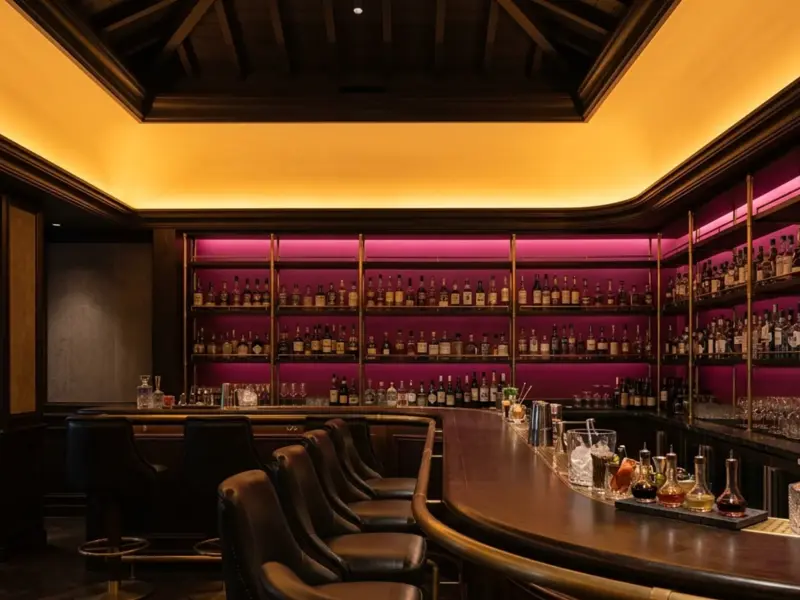

Bar cove and backbar lit in amber and magenta by RGBW LED strip

Hospitality Mood Lighting

Bars, lobbies, and restaurants where saved color scenes shift the room by daypart.

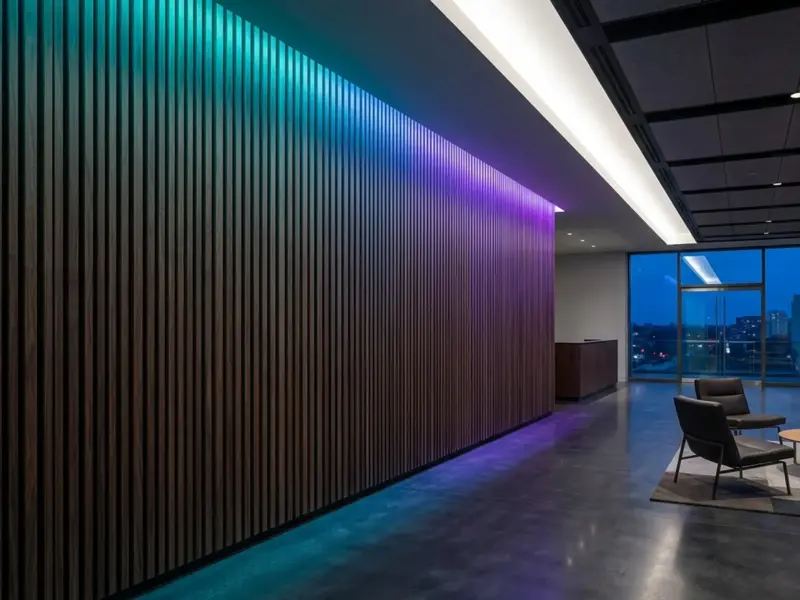

Slat wood feature wall washed in teal to violet RGB LED strip light

Feature Walls & Coves

Coves and feature walls that move through the full spectrum plus a dedicated white channel.

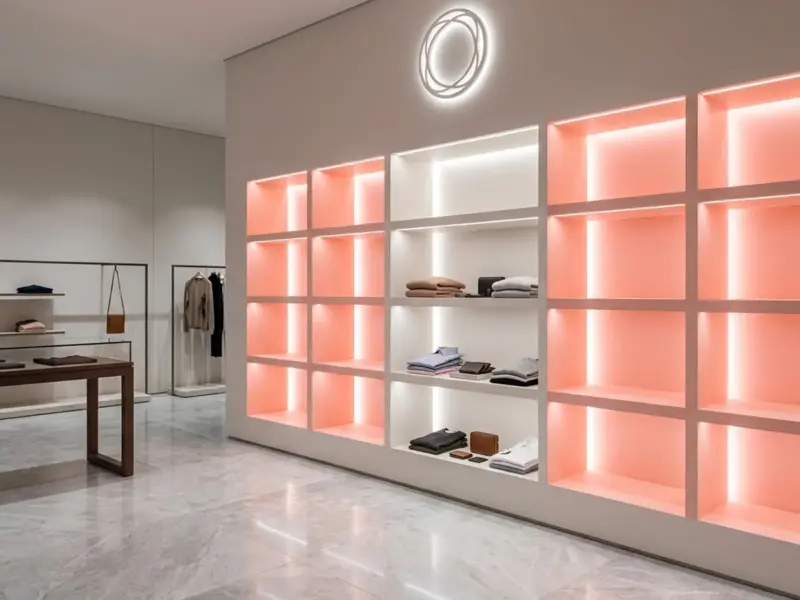

Boutique niches backlit in pastel coral and clean white by RGBW LED strip

Retail Brand Color

Displays and storefronts tuned to brand color, with RGBW for clean pastels and true white.

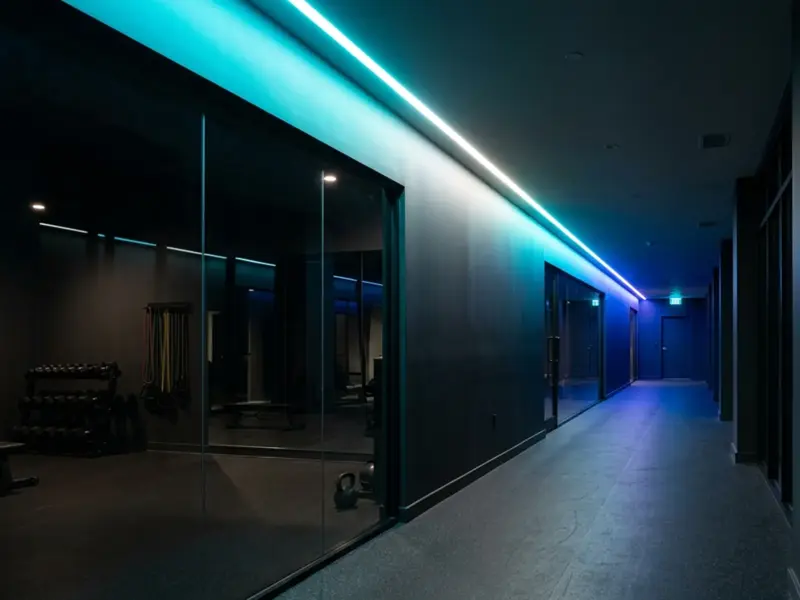

Fitness studio corridor traced by a cyan to blue RGB LED strip line

Entertainment & Leisure

Clubs, gyms, and leisure venues needing dynamic color on a continuous, diffused line.

Compliance

Certifications

Products are sourced from qualified manufacturing partners, are CE Marked, and are available with UL Listed, ETL Listed, FCC compliant, RoHS compliant and other applicable configurations. Certification coverage varies by model. Certification is held by the original manufacturing partner. Documentation and listing information are available upon request.

UL ETL LM-80 CE RoHS

Projects outside North America: products are CE Marked, with RoHS compliant options and drivers matched to local mains. International orders

FAQ

RGB & RGBW questions

Can RGB LED strip make white light?

Technically yes, but RGB-mixed white is a cool, tinted blend with poor color rendering. For functional white lighting, specify RGBW, RGBWW or RGBCW — the dedicated white chip delivers true white at Ra≥80, or Ra≥90 on the 3838 + 2110 and COB boards. RGB-only strip is best reserved for pure color scenes.

What is the difference between RGB and RGBW?

RGBW adds a fourth, dedicated white chip to the red, green, and blue emitters. That fourth channel produces true white, Ra≥80 on the 5050 boards and Ra≥90 on the 3838 + 2110 and COB boards, instead of a tinted RGB blend. Installations that alternate between color scenes and everyday white lighting should always spec RGBW, RGBWW or RGBCW.

Read the RGB vs RGBW vs RGB+CCT guide

What is RGBWW LED strip, and how is it different from RGB+CCT?

Both are five-channel strips: red, green and blue plus a warm white and a cool white, so the white point tunes from about 2400K to 6500K while color scenes stay available. RGBWW puts all five emitters in one 5050 chip; RGB+CCT pairs an RGB chip with separate tunable white chips, 5050 + 2835 or 3838 + 2110. They run on the same 5-channel (6-pin) controllers, and both sit in the RGBWW & RGB+CCT series above.

Compare RGB, RGBW and RGB+CCT

Should I choose 12V or 24V RGB strip?

24V for most installations: it halves the current for the same wattage, so wire and connectors carry less and colors stay even along the run. 12V suits short accents and systems that already run on 12V. The 5V COB RGB series is for short detail runs up to 6.5 ft (2 m), and the 24V constant-current series feeds 49 ft (15 m) from one end for corridors and long coves.

Why long RGB runs turn pink

How do I cut RGB LED strip?

Cut only at the marked points, straight across the printed line. Cut units range from 0.82 in (20.83 mm) on 5V COB RGB to 3.94 in (100 mm) on 5050 RGB and the constant-current rows — check the spec table for each model. Use 4-, 5-, or 6-pin connectors matched to the color configuration when rejoining.

Do I need a controller — and which one?

Yes — every color-changing strip needs a controller matched to its channel count: 3 channels (4 pins) for RGB, 4 channels (5 pins) for RGBW and RGBCW, 5 channels (6 pins) for RGBWW and RGB+CCT. Constant-current rows add a matched constant-current driver. We pair the controller and driver at quote time from our Drivers, Controllers & Connectors line.

How do I size the power supply for RGBW strip?

Use the W/ft in the spec table, which is the figure with every channel at full output, multiply by the run length, and keep the load at or below 80% of the driver's rating. Each run still follows the table's max run per feed.

Read the power supply sizing guide

Is waterproof RGB strip available?

Yes — RGB and RGBW configurations are available in IP65–IP68 constructions through our Outdoor & Waterproof line. The strip, connectors, and driver are specified together as one system, and the wet location marking is confirmed per model at quote.

Do the constant-current RGB rows need a special driver?

Yes. The CC rows in the Long-Run series regulate current on the strip and run only on a matched constant-current driver; on a constant-voltage 24V supply they do not light correctly. In return they feed 49 ft (15 m) from one end with no injection and no pink shift at the far end. The driver is specified on the same quote as the strip.

Why long RGB runs drift in color

Why won't my brand color match on RGBW LED strip?

A brand swatch is ink that subtracts light, while a strip adds light, so the two never read the same. The RGB value is only a drive level, and chip wavelengths vary between chips and between reels. The surface color and room light change the result too. Approve the match lit, on the real finish, instead of trusting a number, and keep the approved sample for later reels.

Read the brand color match guide

Request a quote

Spec your RGB/RGBW project

Send your project details — an engineer replies with matched strip, drivers, and documentation.

main-inquiry

We typically respond within 24 hours. No spam, ever.
