Tunable White LED Strip Lights

CCT-adjustable white from 2700K to 6500K, plus dim-to-warm strip that sinks to 1800K candlelight — 36 models in SMD and dot-free COB, from a 4 mm ultra-narrow board to a 158 lm/W high-efficacy series, with 2-wire and 3-wire control options.

CCT SMD LED strip shown lit in cool white and warm white halves
CCT range
2700–6500 K · dim to 1800 K
Supply range

Our tunable white program covers the full 2700–6500K range on dual WW + CW channels across 36 models: 2835, 3528, 3527, 3014, 5050 and 3838 SMD boards, a high-efficacy 2835 series at 148–158 lm/W, 4 mm ultra-narrow and dot-free 2110 and 2216 boards, dot-free COB, and a flexible tunable light sheet. Color rendering is Ra≥80 on the standard SMD families, with Ra≥90 bins on request at slightly lower output, and Ra≥90 on the 2110, 2216, dim-to-warm and COB families. Two control architectures are offered: 2-wire, which carries dimming and CCT over the power line and drops into retrofits without new control wiring, and 3-wire, with a dedicated CCT channel for 0-10V, DALI, and DMX systems. Strips run on 5V, 12V, or 24V, including dim-to-warm series that shift warmer as they dim, the way incandescent does, and IP62 to IP68 versions are built on request. UL/ETL Listed options are available, with documentation for your submittal package.

Key features

Why contractors spec our tunable white strip

Full 2700–6500K range

Any white point on one run from dual WW + CW channels, in six SMD packages and dot-free COB.

Dim-to-warm to 1800K

Sinks to candlelight as it dims — incandescent behavior, native, at Ra≥90.

High-efficacy to 158 lm/W

ErP-class 2835 boards at 9.6–19.2 W/m where lighting power density drives the spec.

2-wire & 3-wire control

Dim and tune over the power line for retrofits, or a dedicated CCT channel for 0-10V, DALI and DMX.

Dot-free COB options

One continuous line of light with no visible diodes at any CCT.

UL/ETL Listed options available

Certification held by the original manufacturing partner. Documentation available upon request.

Product range

Six tunable families, 36 models, one spec conversation

Tunable White LED Strip (SMD)

Dual-channel WW + CW strip in 2835, 3528, 5050 and 3838 packages, 60 to 240 LEDs per meter and 9.6 to 24 W/m, on 12V and 24V with 2-channel CCT control. The straightforward tunable spec for coves, offices and guestrooms; Ra≥80 standard with Ra≥90 on request, 2700–6500K on the 2835, 3528 and 5050 boards and 3000–6500K on the single-package 3838.

Model LEDs/m Construction Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI Voltage
UT-T120-8 120 2835 WW+W · 8mm 2.9 W/ft (4.8+4.8) (9.6 W/m) — — Ra≥90 12V/24V
UT-T120-10 120 2835 WW+CW · 10mm 4.4 W/ft (7.2+7.2) (14.4 W/m) 417 lm/ft (1,368 lm/m) both channels 90–100 lm/W Ra≥90 24V
UT-T120-10-HO 120 2835 WW+CW · 10mm · high output 7.3 W/ft (12+12) (24 W/m) 622 lm/ft (2040 lm/m) 83–91 lm/W Ra≥80 · Ra≥90 opt. 12V / 24V
UT-T168-10 168 2835 WW+W · 10mm 4.3 W/ft (7+7) (14 W/m) — — Ra≥90 24V
UT-T224-10 224 2835 WW+CW · 10mm 5.9 W/ft (9.6+9.6) (19.2 W/m) 607 lm/ft (1,990 lm/m) both channels 99–113 lm/W Ra≥90 24V
UT-T240-10 240 2835 WW+CW · 10mm 7.3 W/ft (12+12) (24 W/m) 695 lm/ft (2,280 lm/m) both channels 90–100 lm/W Ra≥90 24V
UT-T240-12 240 2835 WW+CW · 12mm 7.3 W/ft (12+12) (24 W/m) 640 lm/ft (2100 lm/m) 83–92 lm/W Ra≥80 · Ra≥90 opt. 24V
UT-T240-8-3014 240 3014 WW+CW · 8mm 3.0 W/ft (5+5) (10 W/m) 293 lm/ft (960 lm/m) both channels 92–100 lm/W Ra≥90 24V
UT-T60-10-3528 60 3528 CCT · 10mm 2.9 W/ft (4.8+4.8) (9.6 W/m) 278 lm/ft (912 lm/m) 90–102 lm/W Ra≥80 · Ra≥90 opt. 12V / 24V
UT-T120-10-3528 120 3528 CCT · 10mm 5.9 W/ft (9.6+9.6) (19.2 W/m) 544 lm/ft (1784 lm/m) 91–104 lm/W Ra≥80 · Ra≥90 opt. 12V / 24V
UT-T120-10-3527 120 3527 WW+CW · 10mm 4.4 W/ft (7.2+7.2) (14.4 W/m) 366 lm/ft (1,200 lm/m) both channels 81–88 lm/W Ra≥90 24V
UT-T60-10-5050 60 5050 CCT · 10mm 5.9 W/ft (9.6+9.6) (19.2 W/m) 556 lm/ft (1824 lm/m) 89–102 lm/W Ra≥80 · Ra≥90 opt. 12V / 24V
UT-T120-10-3838 120 3838 bi-color · 10mm 4.3 W/ft (7+7) (14 W/m) 373 lm/ft (1225 lm/m) 86–89 lm/W Ra≥80 · Ra≥90 opt. 12V / 24V
UT-T240-10-3838 240 3838 bi-color · 10mm 4.9 W/ft (8+8) (16 W/m) 434 lm/ft (1424 lm/m) 88–90 lm/W Ra≥80 · Ra≥90 opt. 12V / 24V

Output is both channels at full; a single channel at pure 2700K or 6500K gives about half, and the efficacy range is that single channel from warm to cool. Output figures are pending on UT-T120-8 and UT-T168-10. Ra≥90 bins are available on every row at slightly lower output. IP62 to IP68 versions are built on request.

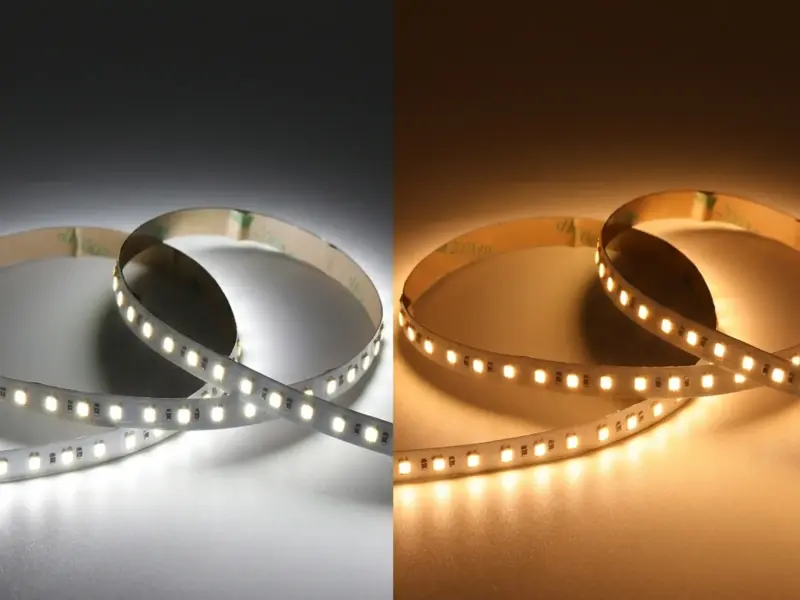

CCT SMD LED strip shown lit in cool white and warm white halves

High-Efficacy Tunable White LED Strip

Three 24V 2835 boards built to the EU ErP efficiency classes: 148–158 lm/W per channel at 9.6, 12 and 19.2 W/m, so a 128-LED strip gives 1,460 lm/m with both channels on. The tunable pick where lighting power density drives the spec.

Model LEDs/m Construction Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI Voltage
UT-T128-10-HE 128 2835 WW+CW · 10mm · high efficacy 2.9 W/ft (4.8+4.8) (9.6 W/m) 446 lm/ft (1463 lm/m) 148–157 lm/W Ra≥80 · Ra≥90 opt. 24V
UT-T160-10-HE 160 2835 WW+CW · 10mm · high efficacy 3.7 W/ft (6+6) (12 W/m) 558 lm/ft (1830 lm/m) 147–158 lm/W Ra≥80 · Ra≥90 opt. 24V
UT-T256-12-HE 256 2835 WW+CW · 12mm · high efficacy 5.9 W/ft (9.6+9.6) (19.2 W/m) 895 lm/ft (2936 lm/m) 148–158 lm/W Ra≥80 · Ra≥90 opt. 24V

All three are 24V, Ra≥80 with Ra≥90 on request at slightly lower output, IP20 with IP62 to IP68 on request; cut increments 2.46 to 4.92 in (62.5 to 125 mm).

High-efficacy 2835 tunable white LED strip on a reel, alternating warm and cool white chips on a 12 mm board

2110, 2216 & 2219 Tunable White LED Strip

Small-package tunable white at Ra≥90: a 4 mm ultra-narrow 2110 board for reveals and handrails, and 240-LED 2110 and 2216 boards that read dot-free behind a shallow diffuser. 8 to 22 W/m on 12V and 24V.

Model LEDs/m Construction Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI Voltage
UT-T280-4-2110 280 2110 WW+CW · 4mm · ultra-narrow 2.4 W/ft (4+4) (8 W/m) 238 lm/ft (780 lm/m) 95–100 lm/W Ra≥90 24V
UT-T240-10-2110 240 2110 WW+CW · 10mm 3.2 W/ft (5.3+5.3) (10.56 W/m) 288 lm/ft (945 lm/m) 82–97 lm/W Ra≥90 12V / 24V
UT-T240-10-2216 240 2216 WW+CW · 10mm 6.7 W/ft (11+11) (22 W/m) 513 lm/ft (1683 lm/m) 73–80 lm/W Ra≥90 12V / 24V
UT-T240-10-2219 240 2219 WW+CW · 10mm 5.9 W/ft (9.6+9.6) (19.2 W/m) 497 lm/ft (1,632 lm/m) both channels 80–85 lm/W Ra≥90 24V

The 4 mm board is IP20 only; the 10 mm boards are built as IP62 to IP68 on request.

Small-package tunable white LED strip on a reel, dense warm and cool white chips with 24V solder pads

COB Tunable White

Dot-free tunable — one continuous line of light with no visible diodes at any color temperature. Six models across 2-wire and 3-wire control architectures.

Model LEDs/m Control CCT Voltage
UT-T480-7 480 2-wire dim+CCT · solder-free 2700-6500K 12V
UT-T576-8 576 2-wire dim+CCT 2700-6500K 24V
UT-T608-8 608 3-wire CCT 2700-6500K 12V/24V
UT-T624-8 624 3-wire CCT 2700-6500K 24V
UT-T640-10 640 3-wire CCT 2700-6500K 24V
UT-T640-10-HO 640 3-wire CCT 2700-6500K 24V
UT-T640-10-LV 640 3-wire CCT 2700-6500K 5V

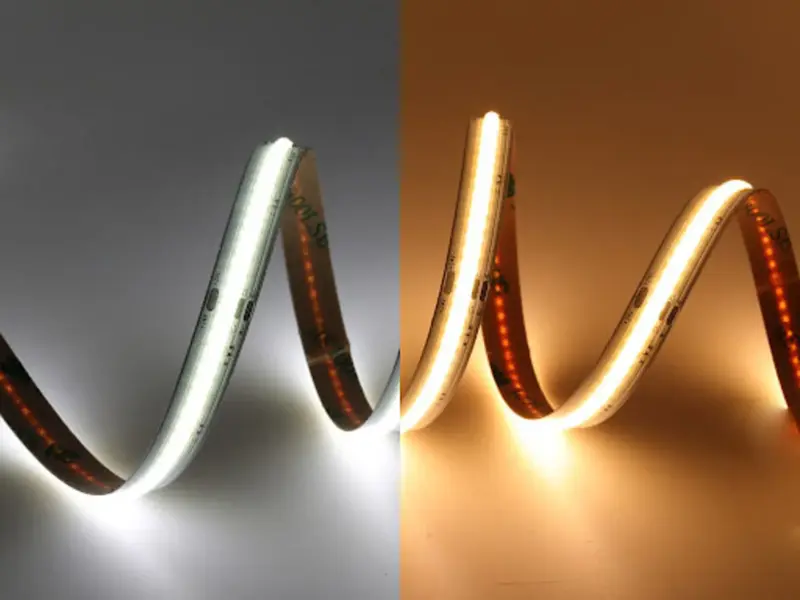

Tunable white COB LED strip coils lit side by side in cool and warm white

Dim-to-Warm LED Strip

The strip does the incandescent curve natively: dim it on a 2-wire dimmer and the color sinks from 3000K to 1800K candlelight — no programming, no scenes. Dot-free COB, a 24 W/m 2835 board and an 18 W/m 2216 board, all Ra≥90 with R9 above 40.

Model LEDs/m Construction Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Behavior
UT-T672-10-DTW 672 COB 3.4 W/ft (11 W/m) — — dims 3000K → 1800K
UT-T120-10-DTW 120 2835 SMD · 10mm 7.3 W/ft (24 W/m) 427 lm/ft (1401 lm/m) 78.3 lm/W dims 3000K → 1800K
UT-T224-10-2216-DTW 224 2216 SMD · 10mm 5.5 W/ft (18 W/m) 467 lm/ft (1532 lm/m) 85 lm/W dims 3000K → 1800K

Output is the 3000K full-brightness value; on the 2216 board the catalogue curve runs 79 lm/m at 1800K, 305 at 2200K, 492 at 2500K and 1,532 at 3000K. Output figures are pending on UT-T672-10-DTW.

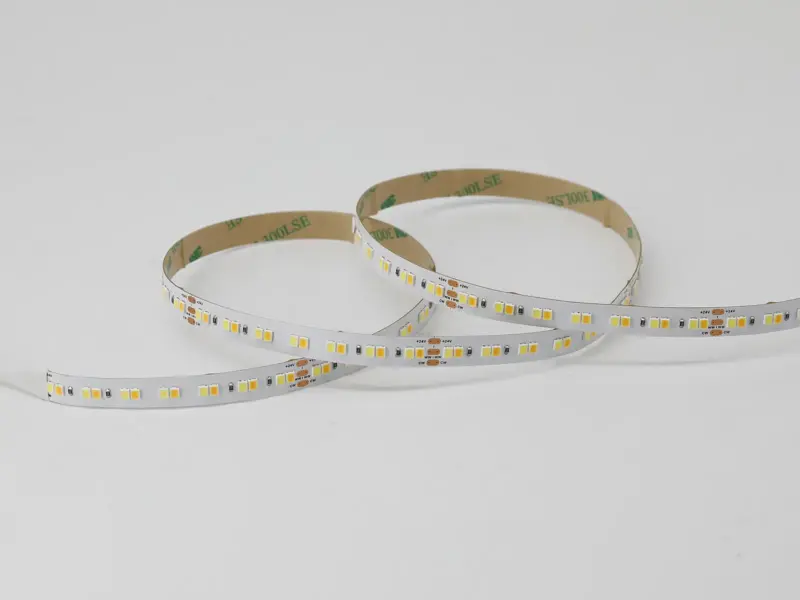

unlit dim-to-warm LED strip coils on a clean white background

ON/OFF Tunable

CCT stepping from a standard wall switch — flick power to cycle white points. No controller, no new wiring: the simplest tunable retrofit there is.

Model LEDs/m Control CCT Voltage
UT-T240-10-OF 240 wall-switch step tuning · no controller needed 2700-6500K step 24V

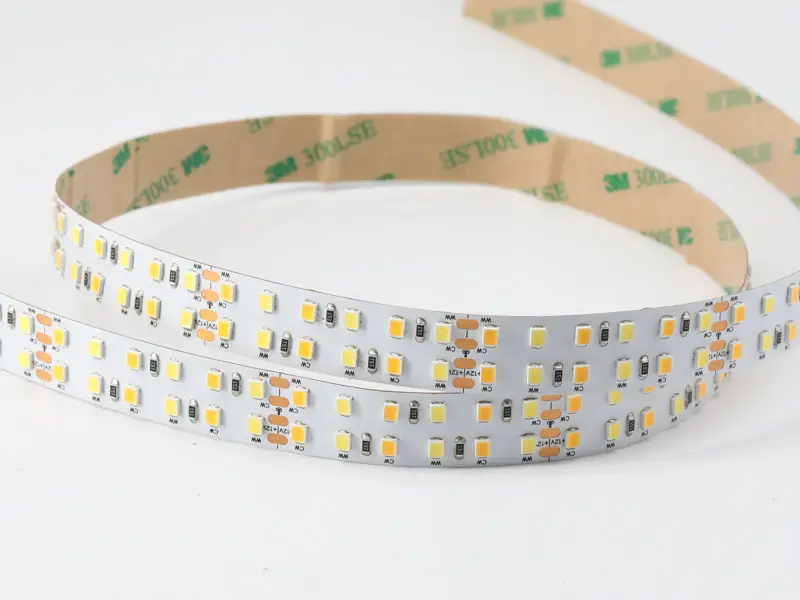

Macro of unlit tunable white LED strip with 3M adhesive backing visible
Specifications

Master spec table

All 36 tunable models in one table. Full photometric files and IES data ship with your quote.

Specs reviewed

How to read our model numbers: UT-T{LEDs per meter}-{PCB width mm}; package suffix 3528 · 5050 · 3838 · 2110 · 2216 · 3014 · 3527 · 2219 (2835 and COB carry none); suffixes: HE high efficacy · HO high output · DTW dim-to-warm · OF ON/OFF step · LV 5V low-voltage · FC full-color · FC-N full-color neon-encased · CSP chip-scale package · SHEET flexible light sheet.

Tap a row for full specs.

Model LEDs/m Construction Control Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI CCT range Voltage Cut increment Max run IP rating
UT-T120-8 120 2835 WW+W · 8mm 2-channel CCT 2.9 W/ft (4.8+4.8) (9.6 W/m) — — Ra≥90 2700-6500K 12V/24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-T120-10 120 2835 WW+CW · 10mm 2-channel CCT 4.4 W/ft (7.2+7.2) (14.4 W/m) 417 lm/ft (1,368 lm/m) both channels 90–100 lm/W Ra≥90 2700–6500K 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20
UT-T120-10-HO 120 2835 WW+CW · 10mm · high output 2-channel CCT 7.3 W/ft (12+12) (24 W/m) 622 lm/ft (2040 lm/m) 83–91 lm/W Ra≥80 · Ra≥90 opt. 2700–6500K 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T168-10 168 2835 WW+W · 10mm 2-channel CCT 4.3 W/ft (7+7) (14 W/m) — — Ra≥90 2700-6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-T224-10 224 2835 WW+CW · 10mm 2-channel CCT 5.9 W/ft (9.6+9.6) (19.2 W/m) 607 lm/ft (1,990 lm/m) both channels 99–113 lm/W Ra≥90 2700–6500K 24V 2.81 in (71.4 mm) 16 ft (5 m)/feed IP20
UT-T240-10 240 2835 WW+CW · 10mm 2-channel CCT 7.3 W/ft (12+12) (24 W/m) 695 lm/ft (2,280 lm/m) both channels 90–100 lm/W Ra≥90 2700–6000K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-T240-12 240 2835 WW+CW · 12mm 2-channel CCT 7.3 W/ft (12+12) (24 W/m) 640 lm/ft (2100 lm/m) 83–92 lm/W Ra≥80 · Ra≥90 opt. 2700–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T240-8-3014 240 3014 WW+CW · 8mm 2-channel CCT 3.0 W/ft (5+5) (10 W/m) 293 lm/ft (960 lm/m) both channels 92–100 lm/W Ra≥90 2700–6000K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-T60-10-3528 60 3528 CCT · 10mm 2-channel CCT 2.9 W/ft (4.8+4.8) (9.6 W/m) 278 lm/ft (912 lm/m) 90–102 lm/W Ra≥80 · Ra≥90 opt. 2700–6500K 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T120-10-3528 120 3528 CCT · 10mm 2-channel CCT 5.9 W/ft (9.6+9.6) (19.2 W/m) 544 lm/ft (1784 lm/m) 91–104 lm/W Ra≥80 · Ra≥90 opt. 2700–6500K 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T120-10-3527 120 3527 WW+CW · 10mm 2-channel CCT 4.4 W/ft (7.2+7.2) (14.4 W/m) 366 lm/ft (1,200 lm/m) both channels 81–88 lm/W Ra≥90 2700–6000K 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20
UT-T60-10-5050 60 5050 CCT · 10mm 2-channel CCT 5.9 W/ft (9.6+9.6) (19.2 W/m) 556 lm/ft (1824 lm/m) 89–102 lm/W Ra≥80 · Ra≥90 opt. 2700–6500K 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T120-10-3838 120 3838 bi-color · 10mm 2-channel CCT 4.3 W/ft (7+7) (14 W/m) 373 lm/ft (1225 lm/m) 86–89 lm/W Ra≥80 · Ra≥90 opt. 3000–6500K 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T240-10-3838 240 3838 bi-color · 10mm 2-channel CCT 4.9 W/ft (8+8) (16 W/m) 434 lm/ft (1424 lm/m) 88–90 lm/W Ra≥80 · Ra≥90 opt. 3000–6500K 12V / 24V 0.49 in (12.5 mm) @12V / 0.98 in (25 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T128-10-HE 128 2835 WW+CW · 10mm · high efficacy 2-channel CCT 2.9 W/ft (4.8+4.8) (9.6 W/m) 446 lm/ft (1463 lm/m) 148–157 lm/W Ra≥80 · Ra≥90 opt. 2700–6500K 24V 4.92 in (125 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T160-10-HE 160 2835 WW+CW · 10mm · high efficacy 2-channel CCT 3.7 W/ft (6+6) (12 W/m) 558 lm/ft (1830 lm/m) 147–158 lm/W Ra≥80 · Ra≥90 opt. 2700–6500K 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T256-12-HE 256 2835 WW+CW · 12mm · high efficacy 2-channel CCT 5.9 W/ft (9.6+9.6) (19.2 W/m) 895 lm/ft (2936 lm/m) 148–158 lm/W Ra≥80 · Ra≥90 opt. 2700–6500K 24V 2.46 in (62.5 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T280-4-2110 280 2110 WW+CW · 4mm · ultra-narrow 2-channel CCT 2.4 W/ft (4+4) (8 W/m) 238 lm/ft (780 lm/m) 95–100 lm/W Ra≥90 2700–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-T240-10-2110 240 2110 WW+CW · 10mm 2-channel CCT 3.2 W/ft (5.3+5.3) (10.56 W/m) 288 lm/ft (945 lm/m) 82–97 lm/W Ra≥90 2700–6500K 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T240-10-2216 240 2216 WW+CW · 10mm 2-channel CCT 6.7 W/ft (11+11) (22 W/m) 513 lm/ft (1683 lm/m) 73–80 lm/W Ra≥90 2700–6500K 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T240-10-2219 240 2219 WW+CW · 10mm 2-channel CCT 5.9 W/ft (9.6+9.6) (19.2 W/m) 497 lm/ft (1,632 lm/m) both channels 80–85 lm/W Ra≥90 2700–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-T480-7 480 COB · 6.6mm · solder-free 2-wire dim+CCT · solder-free 4.3 W/ft (7+7) (14 W/m) — — Ra≥90 2700-6500K 12V 0.49 in (12.5 mm) 10 ft (3 m)/feed IP20
UT-T576-8 576 COB · 8mm 2-wire dim+CCT 6.1 W/ft (10+10) (20 W/m) — — Ra≥90 2700-6500K 24V 1.64 in (41.66 mm) 16 ft (5 m)/feed IP20
UT-T608-8 608 COB · 8mm 3-wire CCT 3.7 W/ft (6+6) (12 W/m) — — Ra≥90 2700-6500K 12V/24V 0.52 in (13.16 mm) @12V / 1.04 in (26.31 mm) @24V 16 ft (5 m)/feed IP20
UT-T624-8 624 COB · 8mm 3-wire CCT 4.3 W/ft (7+7) (14 W/m) — — Ra≥90 2700-6500K 24V 0.76 in (19.23 mm) 16 ft (5 m)/feed IP20
UT-T640-10 640 COB · 10mm 3-wire CCT 4.9 W/ft (8+8) (16 W/m) — — Ra≥90 2700-6500K 24V 0.98 in (25 mm) 16 ft (5 m)/feed IP20
UT-T640-10-HO 640 COB · 10mm 3-wire CCT 6.1 W/ft (10+10) (20 W/m) 512 lm/ft (1,678 lm/m) both channels 76–98 lm/W Ra≥90 2700-6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-T640-10-LV 640 COB · 10mm 3-wire CCT 3.0 W/ft (5+5) (10 W/m) — — Ra≥90 2700-6500K 5V 0.49 in (12.5 mm) 6.5 ft (2 m)/feed IP20
UT-T672-10-DTW 672 COB 2-wire dim-to-warm 3.4 W/ft (11 W/m) — — Ra≥90 1800-3000K (dims warmer) 24V 2.81 in (71.42 mm) 16 ft (5 m)/feed IP20
UT-T120-10-DTW 120 2835 SMD · 10mm 2-wire dim-to-warm 7.3 W/ft (24 W/m) 427 lm/ft (1401 lm/m) 78.3 lm/W Ra≥90 · R9>40 1800–3000K (dims warmer) 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T224-10-2216-DTW 224 2216 SMD · 10mm 2-wire dim-to-warm 5.5 W/ft (18 W/m) 467 lm/ft (1532 lm/m) 85 lm/W Ra≥90 · R9>40 1800–3000K (dims warmer) 24V 2.46 in (62.5 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-T240-10-OF 240 3527 WW+W · 10mm wall-switch step tuning · no controller needed 5.8 W/ft (19 W/m) — — Ra≥90 2700-6500K step 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-T640-10-CSP 640 CSP · 10mm 2-channel CCT 4.9 W/ft (8+8) (16 W/m) — — Ra≥90 2700-6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-T336-12-FC 336 Full-color · bare strip Full-color CCT 3.7 W/ft (12 W/m) — — Ra≥90 1800-12000K 24V 2.46 in (62.5 mm) On request IP20
UT-T336-12-FC-N 336 Full-color · neon-encased Full-color CCT 3.7 W/ft (12 W/m) — — Ra≥90 1800-10000K 24V 2.46 in (62.5 mm) On request IP66
UT-T784-SHEET 784 2835 WW+CW · flexible sheet 18.9 × 9.4 in (480 × 240 mm) 2-channel CCT 9.8 W/ft (16+16) (32 W/m) 780 lm/ft (2560 lm/m) 78–83 lm/W Ra≥90 2700–6500K 24V 0.67 in (17.1 mm) grid — IP20

Output is both white channels at full (2700K + 6500K); efficacy is the single-channel range from 2700K to 6500K. Rows showing a dash are awaiting photometric data. IP62 to IP68 versions of the IP20 models are built on request.

Waterproof versions

IP options

The same strip, sealed for damp, wet or submerged locations. Pick the rating and we build the sealed version to order.

Cross-sections are illustrative; the same IP code can be built more than one way. The IP20 models in the tables are built in IP62 to IP68 versions on request. IP65H is the heat-shrink version. Sealing adds width and height and can shift color slightly, so the sealed size is confirmed with your quote.
Applications

Where tunable white earns its keep

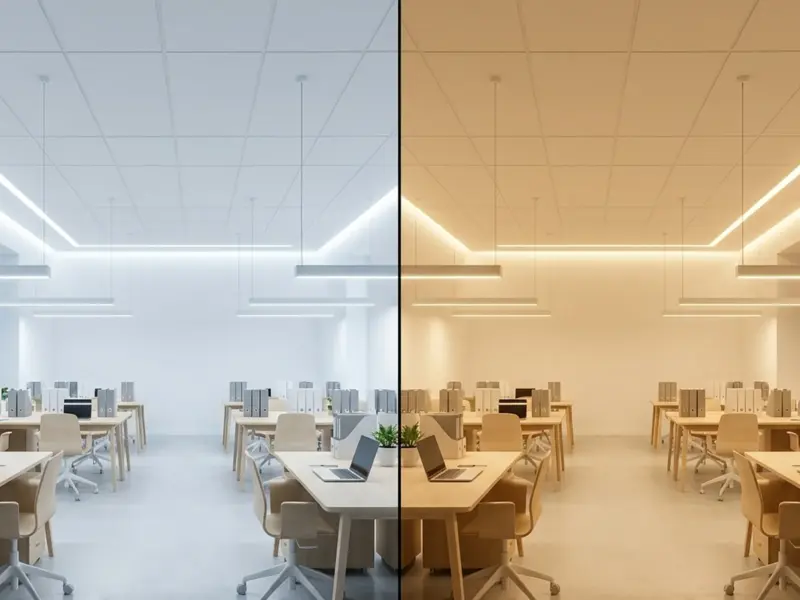

Split view of one office cove lit cool daylight and warm white

Workplace & Circadian

Offices and workspaces that shift 2700–6500K across the day to support focus and circadian rhythm.

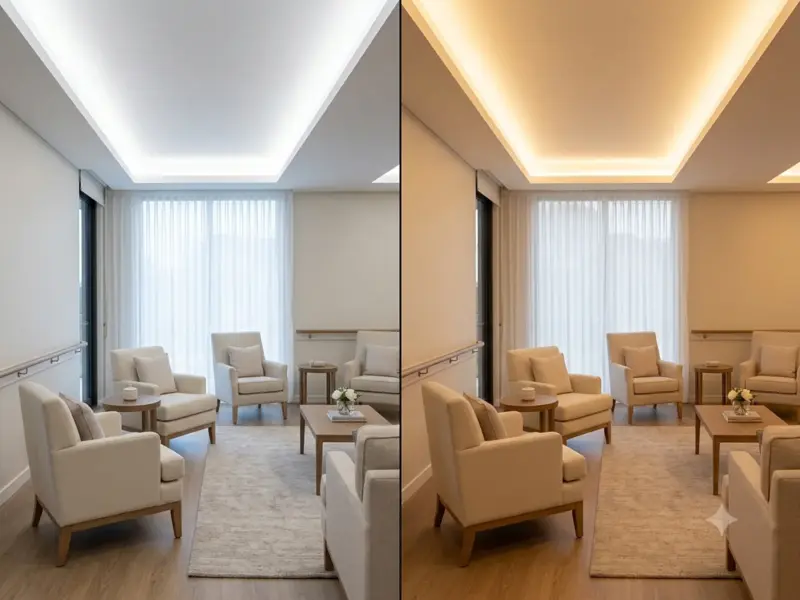

Senior living lounge shown in cool clarity and warm evening tunable white

Healthcare & Senior Living

Patient and care settings where warmer evenings and cooler days aid rest and orientation.

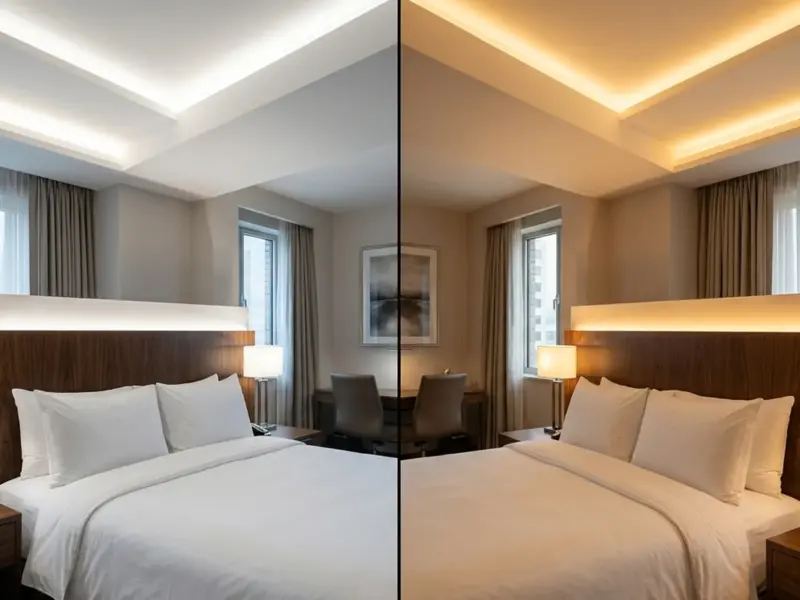

Hotel guestroom split between crisp task white and warm relaxation lighting

Hospitality Guestrooms

Guestroom scenes from warm relaxation to crisp task light on a single dimmable line.

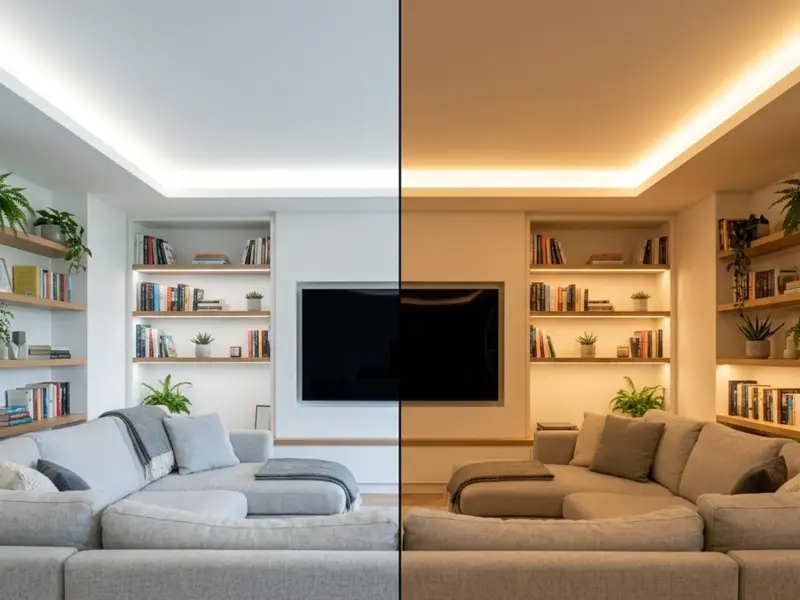

Living room cove tuned from bright daytime white to cozy warm evening

Residential Living

Living spaces tuned from bright daytime white to warm evening ambiance.

Compliance

Certifications

Products are sourced from qualified manufacturing partners, are CE Marked, and are available with UL Listed, ETL Listed, FCC compliant, RoHS compliant and other applicable configurations. Certification coverage varies by model. Certification is held by the original manufacturing partner. Documentation and listing information are available upon request.

UL ETL LM-80 CE RoHS

Projects outside North America: products are CE Marked, with RoHS compliant options and drivers matched to local mains. International orders

FAQ

Tunable white questions

What is the difference between tunable white and dim-to-warm?

Tunable white lets you set any color temperature between 2700K and 6500K independently of brightness. Dim-to-warm ties the two together: the strip automatically shifts warmer as it dims, ending near 1800K — the way an incandescent lamp behaves on a dimmer. Specify tunable white for scene control, dim-to-warm for incandescent-style ambiance.

Read the dim-to-warm LED strip guide

2-wire vs 3-wire tunable strip — which do I need?

2-wire carries dimming and CCT commands over the power line itself — ideal for retrofits where pulling new control wire is impractical. 3-wire adds a separate CCT channel for 0-10V, DALI, and DMX control systems, the standard for new commercial construction. The SMD tunable boards in the tables are 3-pin, common-anode 2-channel strips that run on either architecture through the matching controller; both cover 2700-6500K.

0-10V vs TRIAC vs DALI control

Do I need a special controller?

Yes — tunable strip needs a CCT-capable controller matched to its architecture: a 2-wire push-dim or power-line controller, or a 3-wire 0-10V/DALI/DMX interface. The ON/OFF tunable series is the exception — it steps CCT from a standard wall switch. We pair the controller at quote time from our Drivers, Controllers & Connectors line.

Test the driver and dimmer pair first

Does color temperature change affect brightness?

At the extremes, slightly — full output requires both white channels driven together. Power is listed as total WW+CW: a 24W (12+12) strip delivers half its wattage at pure 2700K or pure 6500K and full output at mid mix, which is why the tables list output with both channels on. Good CCT controllers compensate to keep perceived brightness constant.

Read the LED strip color temperature guide

What CRI do the tunable white strips have?

Ra≥80 on the standard 2835, 3528, 5050 and 3838 boards and on the high-efficacy series, where the photometric tables are rated at CRI>80. Ra≥90 with R9 above 40 on the dim-to-warm boards, and Ra≥90 on the 2110 and 2216 boards, the tunable light sheet and every COB model. Specify the Ra≥90 families where skin tones and finishes matter; the standard boards are also built in Ra≥90 bins on request, at slightly lower output.

Read the high CRI LED strip guide

Can tunable white match incandescent dimming?

That behavior is exactly what the dim-to-warm series is for — it shifts from 3000K down to 1800K candlelight as it dims, no programming required. Standard tunable white can approximate the curve with a programmed controller, but dim-to-warm does it natively on a 2-wire dimmer.

How dim-to-warm strip works

Can I get tunable white strip in IP65 or IP67?

Yes. The SMD models in the tables are IP20 boards, and each is also built as IP62, IP65, IP65H, IP66, IP67 or IP68 on request with the same photometrics; the 4 mm 2110 board and the light sheet are IP20 only. For strip engineered for permanent outdoor and wet locations, see the Outdoor & waterproof page.

See outdoor & waterproof LED strip

Is tunable white worth it in a conference room?

Tunable white pays off in rooms that switch between daytime video calls and evening events. UT-T224-10 runs 2700–6500K at Ra≥90 on 24V, so the same cove can sit at 4000K for a call and 3000K for a reception. It needs a two-channel controller or a DALI DT8 decoder. During a call, keep every source in the room at one color temperature.

Read the conference room lighting guide

Request a quote

Spec your tunable white project

Send your project details — an engineer replies with matched strip, drivers, and documentation.
