LED Wall Washer Lights for Architectural Wall Washing
Six wall washer families, from 10° × 60° grazing to 60° wash — lens-optic bars, silicone directional strip, PU-potted flexible, constant-current 32 ft runs, plus DMX512 RGBW and addressable SPI. IP20 through IP67.
Our wall wash lighting program covers six LED wall washer families: interchangeable-lens bars in 27 × 27 mm extruded silicone, silicone strip with built-in 30° and 45° optics, PU-potted flexible strip that replaces bar-type washers, constant-current strip holding a 32 ft single run without voltage drop, plus DMX512 RGBW and addressable SPI RGB. Output runs 440 to 2,214 lm/m at 8 to 27 W/m, with Color Rendering Index, 0–100: how truthfully the light shows colors next to a reference source. Ra≥90 is the usual bar for interiors. to Ra90 and warm-to-daylight CCTs selectable per family. Ingress ratings run IP20 through Dust-tight, and protected against temporary immersion in water. The usual rating for wet or outdoor runs that are not submerged all the time.. Lead times, run lengths and lens selection are confirmed at quotation.
Why contractors spec our wall washers
10° × 60° grazing to 60° wash
Three lens options on the bar families plus built-in silicone optics cover tight grazing through broad wash — the lens is specified independently of color temperature.
Wash heights up to 23 ft (7 m)
30×21 mm high-output modules throw an even wash up the full wall.
Silicone bodies that bend on both axes
The lens bars and the 70 LED/m silicone build follow curves and corners on both axes; the higher-output 140 LED/m versions bend on one.
RGBW · SPI pixel · DMX512 control
Dedicated-white color, per-segment effects, and show-grade control.
IP20 to IP67 across the program
Bare board for aluminum profile through fully sealed silicone and PU-potted construction — indoor coves to exterior facades on one platform.
32 ft (10 m) single run on constant-current families
On-board constant-current drivers hold brightness flat end to end, against roughly 16 ft (5 m) on conventional constant-voltage strip before a mid-run feed is needed.
6 families, one spec conversation

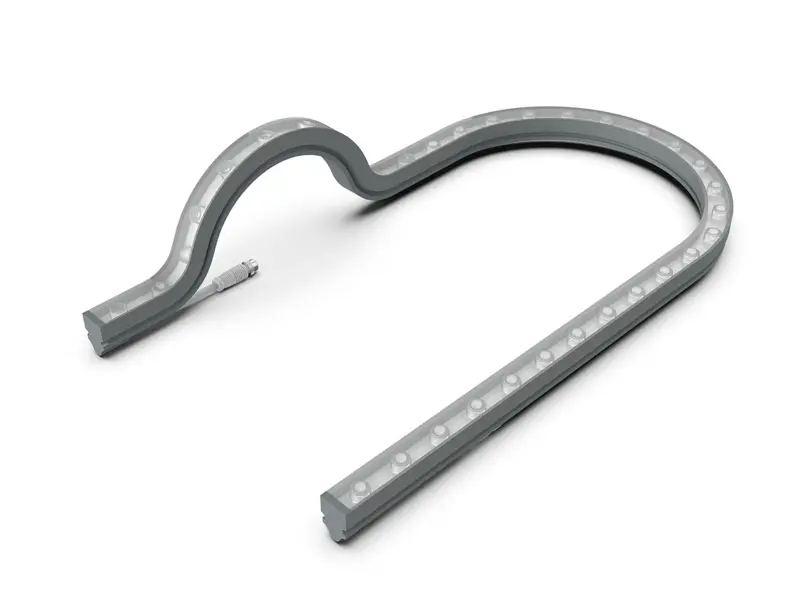

Interchangeable-lens wall washer bar — white
A 27 × 27 mm extruded silicone bar supplied in 1040 mm sections, 24 LEDs per meter at 27 W/m, rated IP67 and IK07. Three lens options cover the range from tight grazing to broad washing, and the lens is specified independently of color temperature. The body is extruded silicone rather than a metal housing, so it bends on both axes and follows curved walls and corners. Custom lengths are cut in 250 mm increments.
| Model | Beam angle | LEDs/m | Power W/ft (W/m) | Output lm/ft | Cut increment | IP rating |
|---|---|---|---|---|---|---|
| UT-WB27-1060 | 10° × 60° | 24 | 8.2 W/ft (27 W/m) | 494 lm/ft | 9.84 in (250 mm) | IP67 |
| UT-WB27-2030 | 20° × 30° | 24 | 8.2 W/ft (27 W/m) | 675 lm/ft | 9.84 in (250 mm) | IP67 |
| UT-WB27-45 | 45° | 24 | 8.2 W/ft (27 W/m) | 551 lm/ft | 9.84 in (250 mm) | IP67 |

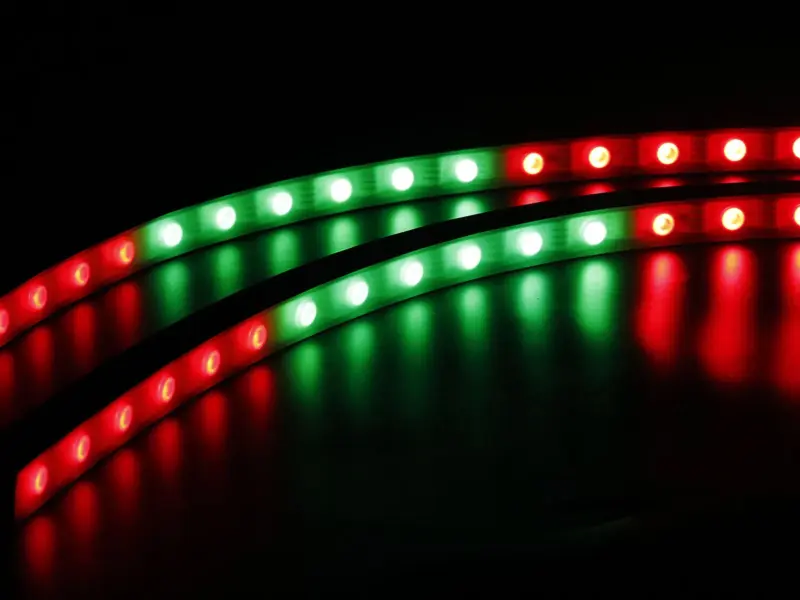

DMX512 RGBW wall washer bar
The same 27 × 27 mm body, mounting hardware and profiles as the white bar, rebuilt around 3535 packages and DMX512 control. Because the housing and brackets are shared, a project can run white and color sections off one installation detail. Three lens options match the white version.
| Model | Beam angle | LEDs/m | Power W/ft (W/m) | Output lm/ft | Cut increment | IP rating |
|---|---|---|---|---|---|---|
| UT-WB27-2030-DMX | 20° × 30° | 24 | 8.2 W/ft (27 W/m) | 360 lm/ft | 9.84 in (250 mm) | IP67 |
| UT-WB27-45-DMX | 45° | 24 | 8.2 W/ft (27 W/m) | 305 lm/ft | 9.84 in (250 mm) | IP67 |
| UT-WB27-1060-DMX | 10° × 60° | 24 | 8.2 W/ft (27 W/m) | 288 lm/ft | 9.84 in (250 mm) | IP67 |

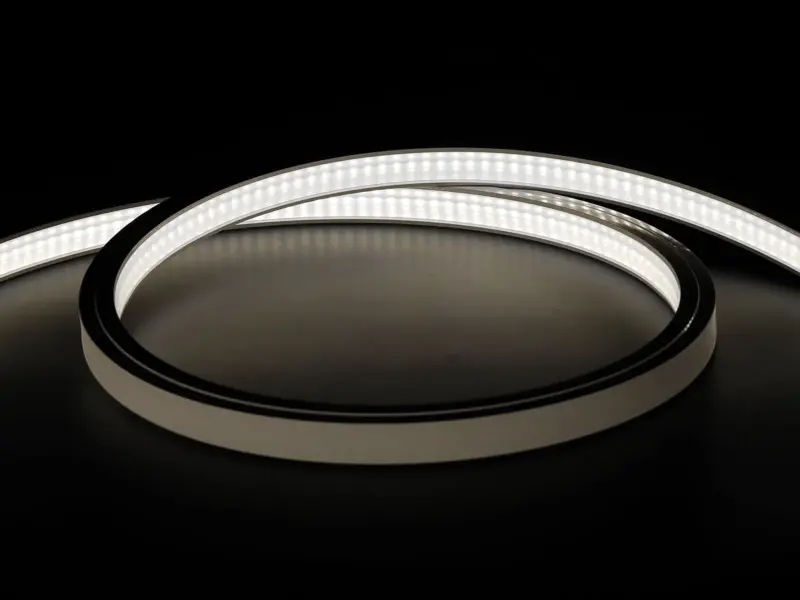

Silicone wall washer with built-in beam control
Single-piece extruded silicone with the optic built into the body, so no external lens is needed. Rated IP67 and supplied on 5 m reels. The 70 LED/m version is the only one in this family that bends on both axes — it trades output for three-dimensional shaping, which is why it is specified for curved and compound runs rather than straight ones.
| Model | Beam angle | LEDs/m | Power W/ft (W/m) | Output lm/ft | Cut increment | IP rating |
|---|---|---|---|---|---|---|
| UT-WS18-45 | 45° | 140 | 4.4 W/ft (14.4 W/m) | 562 lm/ft | 1.97 in (50 mm) | IP67 |
| UT-WS20-30 | 30° | 140 | 4.9 W/ft (16 W/m) | 527 lm/ft | 1.97 in (50 mm) | IP67 |
| UT-WS20-30-3D | 30° | 70 | 3.0 W/ft (10 W/m) | 347 lm/ft | 3.94 in (100 mm) | IP67 |

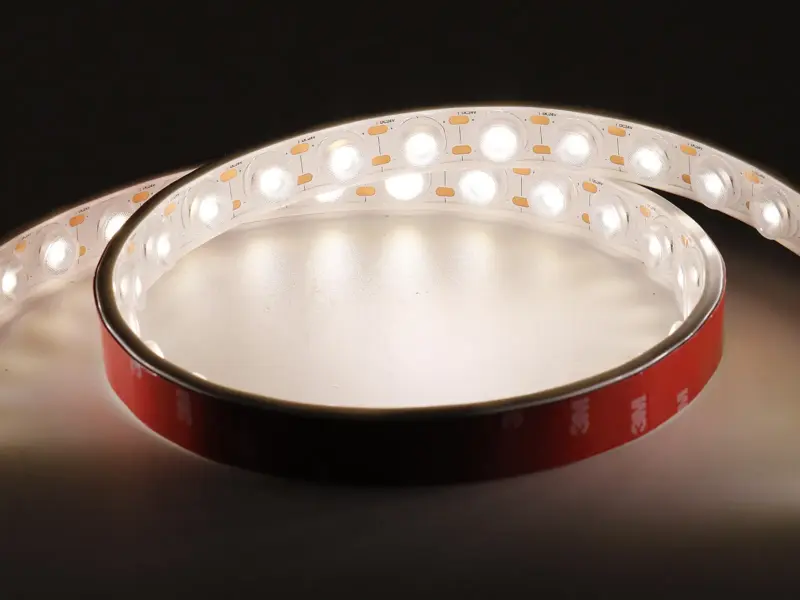

PU-potted flexible wall washer
A TPU jacket filled with PU potting compound, 23.81 × 18 mm, 42 LEDs per meter at 20 W/m, rated IP65. It is specified as a direct replacement for bar-type wall washers where the run is not straight: smaller, lighter, and it follows the surface. The white version carries Ra90, the highest CRI in the wall washer program.
| Model | Beam angle | LEDs/m | Power W/ft (W/m) | Output lm/ft | Cut increment | IP rating |
|---|---|---|---|---|---|---|
| UT-WP24-WHT | 30° / 45° / 30° × 45° | 42 | 6.1 W/ft (20 W/m) | 452 lm/ft | 0.94 in (23.81 mm) | IP65 |
| UT-WP24-RGB | 30° / 65° / 25° × 45° | 42 | 6.1 W/ft (20 W/m) | 239 lm/ft | 6.56 in (166.67 mm) | IP65 |
| UT-WP24-RGBW | 30° / 65° / 25° × 45° | 42 | 6.1 W/ft (20 W/m) | 335 lm/ft | 6.56 in (166.67 mm) | IP65 |
| UT-WP24-RGB-DMX | 30° / 65° / 25° × 45° | 42 | 6.1 W/ft (20 W/m) | — | 6.56 in (166.67 mm) | IP65 |

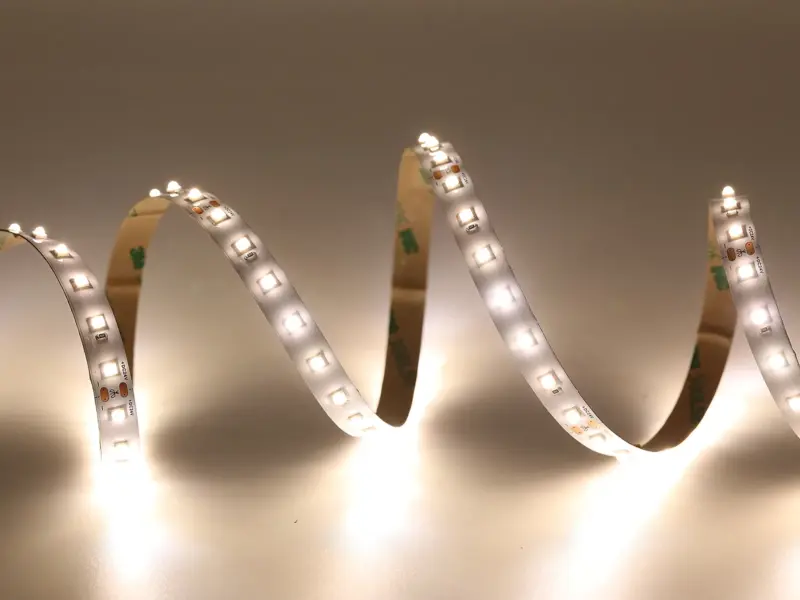

Constant-current wall washer strip — 32 ft single run
On-board constant-current drivers hold brightness flat across a 32 ft (10 m) single run. A conventional constant-voltage strip is limited to roughly 16 ft (5 m) before the ends read brighter than the middle, which forces mid-run feeds and additional drivers. Supplied as bare board for aluminum profile; IP67 construction is available.
| Model | Beam angle | LEDs/m | Power W/ft (W/m) | Output lm/ft | Cut increment | IP rating |
|---|---|---|---|---|---|---|
| UT-WC84 | 36° | 84 | 2.4 W/ft (8 W/m) | 312 lm/ft | 3.28 in (83.33 mm) | IP20 |
| UT-WC112 | 36° | 112 | 2.9 W/ft (9.6 W/m) | 389 lm/ft | 2.81 in (71.4 mm) | IP20 |
| UT-WC126 | 36° | 126 | 4.6 W/ft (15 W/m) | 488 lm/ft | 2.19 in (55.5 mm) | IP20 |
Addressable SPI RGB wall washer
Pixel-addressable control for chase, gradient and animated effects, 60 LEDs per meter in a 16 × 16 mm body. This is a different control path from DMX512, not a higher grade of it: DMX drives a whole section to one color from a standard console, while SPI addresses each segment individually and needs a dedicated controller. Driver IC is selectable.
| Model | Beam angle | LEDs/m | Power W/ft (W/m) | Output lm/ft | Cut increment | IP rating |
|---|---|---|---|---|---|---|
| UT-WA16-SPI | 60° | 60 | 4.1 W/ft (13.5 W/m) | 134 lm/ft | 3.94 in (100 mm) | IP20 |
Master spec table
Representative models across all six families. Full photometric files and IES data ship with your quote.
How to read our model numbers: UT-WB27 27 × 27 mm lens-optic bar · UT-WS silicone-extruded directional · UT-WP24 PU-potted flexible · UT-WC constant-current · UT-WA16 addressable SPI
Tap a row for full specs.
| Model | LEDs/m | Construction | Beam angle | Power W/ft (W/m) | CRI | Color / CCT | Voltage | Cut increment | Max run | IP rating |
|---|---|---|---|---|---|---|---|---|---|---|
| UT-WB27-1060 | 24 | extruded silicone · optical lens · 27 × 27 mm | 10° × 60° | 8.2 W/ft (27 W/m) | Ra80 | Single color · 2700/3000/4000/6500K | 24V | 9.84 in (250 mm) | 16.4 ft (5 m) | IP67 |
| UT-WB27-2030 | 24 | extruded silicone · optical lens · 27 × 27 mm | 20° × 30° | 8.2 W/ft (27 W/m) | Ra80 | Single color · 2700/3000/4000/6500K | 24V | 9.84 in (250 mm) | 16.4 ft (5 m) | IP67 |
| UT-WB27-45 | 24 | extruded silicone · optical lens · 27 × 27 mm | 45° | 8.2 W/ft (27 W/m) | Ra80 | Single color · 2700/3000/4000/6500K | 24V | 9.84 in (250 mm) | 16.4 ft (5 m) | IP67 |
| UT-WB27-2030-DMX | 24 | extruded silicone · optical lens · 27 × 27 mm | 20° × 30° | 8.2 W/ft (27 W/m) | Ra80 (W) | DMX RGBW · 2700/3000/4000/6500K | 24V | 9.84 in (250 mm) | 16.4 ft (5 m) | IP67 |
| UT-WB27-45-DMX | 24 | extruded silicone · optical lens · 27 × 27 mm | 45° | 8.2 W/ft (27 W/m) | Ra80 (W) | DMX RGBW · 2700/3000/4000/6500K | 24V | 9.84 in (250 mm) | 16.4 ft (5 m) | IP67 |
| UT-WB27-1060-DMX | 24 | extruded silicone · optical lens · 27 × 27 mm | 10° × 60° | 8.2 W/ft (27 W/m) | Ra80 (W) | DMX RGBW · 2700/3000/4000/6500K | 24V | 9.84 in (250 mm) | 16.4 ft (5 m) | IP67 |
| UT-WS18-45 | 140 | extruded silicone · 18 × 11 mm | 45° | 4.4 W/ft (14.4 W/m) | Ra80 | Single color · 2700/3000/4000/5000/6000K | 24V | 1.97 in (50 mm) | 16.4 ft (5 m) | IP67 |
| UT-WS20-30 | 140 | extruded silicone · 20 × 16 mm | 30° | 4.9 W/ft (16 W/m) | Ra80 | Single color · 2700/3000/4000/5000/6000K | 24V | 1.97 in (50 mm) | 16.4 ft (5 m) | IP67 |
| UT-WS20-30-3D | 70 | 20 × 16 mm | 30° | 3.0 W/ft (10 W/m) | Ra80 | Single color · 2700/3000/4000/5000/6500K | 24V | 3.94 in (100 mm) | 16.4 ft (5 m) | IP67 |
| UT-WP24-WHT | 42 | 23.81 × 18 mm | 30° / 45° / 30° × 45° | 6.1 W/ft (20 W/m) | Ra90 | Single color · 2700/3000/4000/5000/6500K | 24V | 0.94 in (23.81 mm) | 16.4 ft (5 m) | IP65 |
| UT-WP24-RGB | 42 | 23.81 × 18 mm | 30° / 65° / 25° × 45° | 6.1 W/ft (20 W/m) | — | RGB | 24V | 6.56 in (166.67 mm) | 16.4 ft (5 m) | IP65 |
| UT-WP24-RGBW | 42 | 23.81 × 18 mm | 30° / 65° / 25° × 45° | 6.1 W/ft (20 W/m) | Ra90 (W) | RGBW · 2700/3000/4000/5000/6500K | 24V | 6.56 in (166.67 mm) | 16.4 ft (5 m) | IP65 |
| UT-WP24-RGB-DMX | 42 | 23.81 × 18 mm | 30° / 65° / 25° × 45° | 6.1 W/ft (20 W/m) | — | DMX RGB | 24V | 6.56 in (166.67 mm) | 16.4 ft (5 m) | IP65 |
| UT-WC84 | 84 | 10 mm PCB | 36° | 2.4 W/ft (8 W/m) | Ra80 | Single color · 2700/3000/4000/5000/6500K | 24V | 3.28 in (83.33 mm) | 32 ft (10 m) | IP20 |
| UT-WC112 | 112 | 10 mm PCB | 36° | 2.9 W/ft (9.6 W/m) | Ra80 | Single color · 2700/3000/4000/5000/6500K | 24V | 2.81 in (71.4 mm) | 32 ft (10 m) | IP20 |
| UT-WC126 | 126 | 10 mm PCB | 36° | 4.6 W/ft (15 W/m) | Ra80 | Single color · 2700/3000/4000/5000/6500K | 24V | 2.19 in (55.5 mm) | 32 ft (10 m) | IP20 |
| UT-WA16-SPI | 60 | 16 × 16 mm | 60° | 4.1 W/ft (13.5 W/m) | — | Addressable RGB (SPI) | 24V | 3.94 in (100 mm) | 16.4 ft (5 m) | IP20 |
The 27 × 27 mm figure is the bar body. Allow 38 mm total depth including the wiring base at the rear when detailing recesses and coves. Available CCTs differ by family. The 3030 and 3535 lens bars are built in 2700K, 3000K, 4000K and 6500K; the 140 LED/m silicone family tops out at 6000K. Confirm CCT at order.
Where wall washers earn their keep

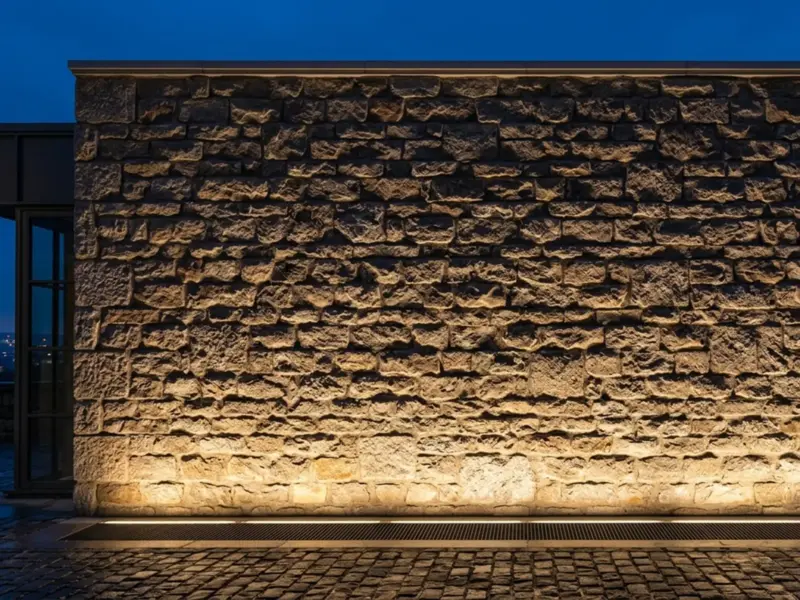

Facade Grazing
Floor-to-parapet grazing that rakes light up textured facades to reveal material and depth.

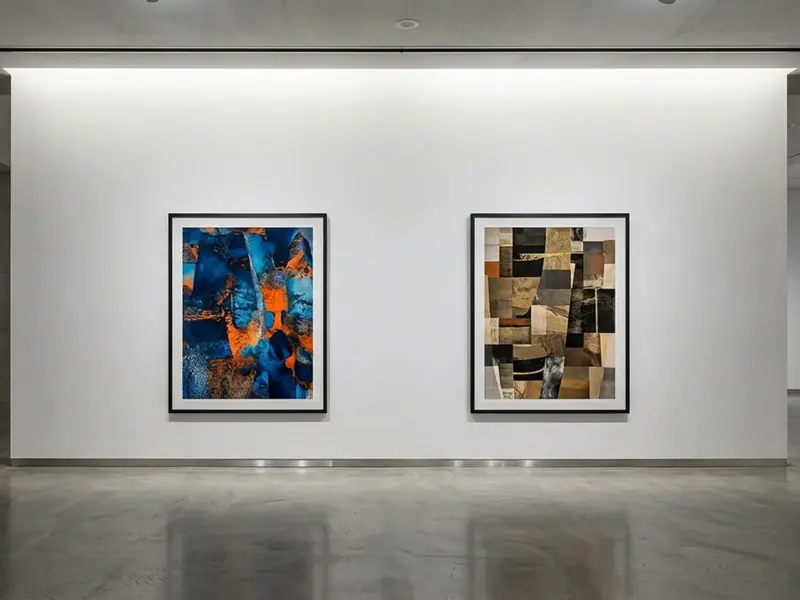

Gallery & Museum Wash
Even vertical wall wash for art, signage, and feature walls with controlled beam spread.

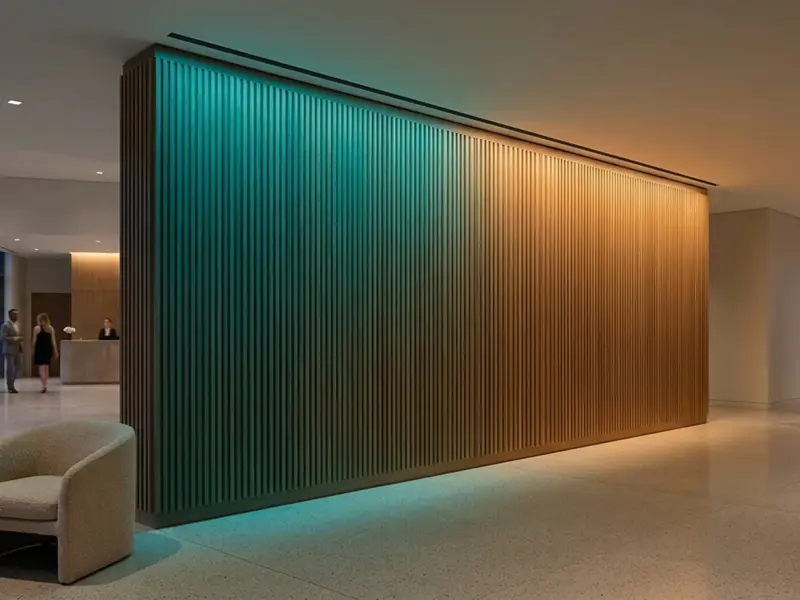

Feature & Accent Walls
RGBW accent walls that shift scene by scene, with a dedicated white channel keeping material and grain readable.

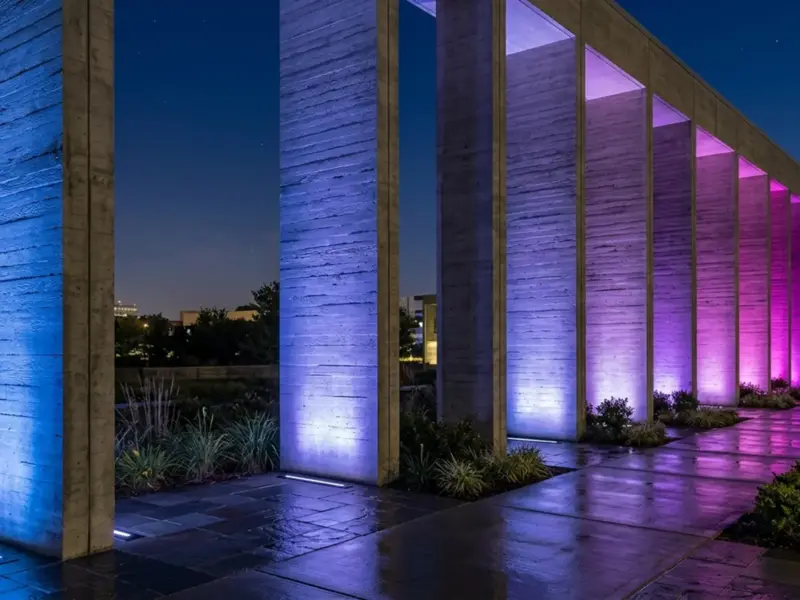

Columns & Landscape
Exterior column grazing on IP67 DMX512 bars — each column runs as its own zone, holding its own color from a standard console.
Certifications
Products are sourced from qualified manufacturing partners and are available with UL Listed, ETL Listed, FCC compliant, RoHS compliant and other applicable configurations. Certification coverage varies by model. Certification is held by the original manufacturing partner. Documentation and listing information are available upon request.
CE-compliant options available for buyers outside North America — contact us for EU specifications.
Related guides
Specification, power and installation guides for this range.
Wall washer questions
Wall washer vs wall grazer — which do I need?
Choose a wall washer to hide texture and a grazer to emphasize it. Washers mount 6–12 inches off the wall and flood the surface evenly; grazers sit within 6 inches so light rakes across stone, brick, or fluting. If the wall has flaws to conceal, wash it.
What warranty do the wall washers carry?
All wall washer families carry a 5-year warranty on indoor installations and a 3-year warranty on outdoor installations, from date of shipment. The term follows the installation environment, not the model — the same fixture used indoors and outdoors carries different terms.
What beam angle should I choose?
Match the optic to wall height and offset: 10° × 60° for close-offset grazing of tall walls, 20° × 30° and 30° for mid-throw washing, and 45° or 60° for wide coverage at greater setbacks. On the bar families the lens is specified independently of color temperature, so the optic can change without reworking the rest of the schedule.
How long a run can I make without visible voltage drop?
The constant-current families hold a 32 ft (10 m) single run flat. Conventional constant-voltage strip is limited to roughly 16 ft (5 m) before the ends read brighter than the middle, which forces a mid-run feed and a second driver.
How much depth do I need to detail for the 27 × 27 mm bar?
The bar body is 27 × 27 mm, but the wiring base at the rear brings total depth to 38 mm. Detail recesses and coves to 38 mm to avoid reworking the channel on site.
Do these products support 0-10V or PWM dimming?
Dimming is handled by the driver or controller, not by the strip itself. Any single-color family here runs on 0-10V, PWM or TRIAC dimming when paired with the matching driver, so specify the dimming protocol at the driver.
Is the constant-current strip available sealed?
Bare board rated IP20 is the standard build for installation in aluminum profile. An IP67 construction is available on request for damp and wet locations.
Can the white wall washer bar be supplied with DMX512 control?
Yes — the 3030 white bar can be built with DMX512 control to order. It is a made-to-order build, so allow lead time and confirm quantities when you request a quote.
Which SPI driver IC is used in the addressable wall washer?
SM16703PB, FW1935 and FL1903B are all supported. Tell us which your controller expects and we will match it, or we will recommend one if the controller is not yet selected.
What is wall wash lighting?
Wall wash lighting is a linear source set 6 to 12 in off a wall and aimed so the whole surface is lit evenly from top to bottom, with no visible scallops or hot band. It flattens texture and makes the wall read as one plane of light; wall grazing is the opposite move, within 6 in of the wall, to bring texture out.
How far apart should LED wall washers be spaced?
Linear wall washer bars and strip run continuously, so the spacing question becomes setback and beam angle: 6 to 12 in from the wall with a 30° or 45° optic for a wash, within 6 in with a 10° × 60° optic for a graze. Where bars are broken into pieces, keep the gap at a cut point and feed each piece within its rated run so the ends stay the same brightness.
