Single Color SMD LED Strip Lights

White and single-color SMD strip from 2835 workhorses to CRI 98 full-spectrum — 60 to 960 LEDs per meter, efficacy up to 200 lm/W, double-row boards, and 48V runs to 164 ft (50 m).

Unlit 2835 SMD LED strip on a black reel showing chip rows and cut marks
Supply range

Our single-color SMD LED strip light program spans nine packages — 2835, 3528, 5050, 5630, 2110, 2216, 3014, 2022 and 3838 — at 60 to 960 LEDs per meter. Color quality comes in four tiers: Ra≥80 standard, Ra≥90, Ra≥97 with R9 95, and Ra≥98 full-spectrum, with the PRO series reaching 200 where energy codes drive the spec. Choose 12V or 24V, or 48V and constant-current designs for single feeds to 164 ft (50 m), plus double-row and triple-row boards, a flexible LED light sheet, and S-shape, side-view, and 3–6 mm ultra-narrow form factors. Every model comes in 12 CCTs from 1800K to 6500K and 10 single colors, and IP62 to IP68 versions are built on request. UL/ETL Listed options are available, with documentation for your submittal package.

Cross-section
Top view
Key features

Why contractors spec our SMD tape light

CRI 80 to 98, four tiers

Ra≥80 standard, Ra≥90, Ra≥97 with R9 95, and Ra≥98 full-spectrum.

PRO series to 200 lm/W

Energy-code-driven specs met without sacrificing CRI — 180 lm/W at Ra≥90.

2835 · 3528 · 5050 · 5630 · 2110 · 2216

Nine packages, 60 to 960 LEDs per meter, double-row boards and an LED light sheet.

Slim, side-view & S-shape options

3–6 mm boards for narrow reveals; zigzag PCB for curves and letters; edge emission for profiles.

48V & constant-current long runs

Single feeds of 49–164 ft (15–50 m) — one driver per corridor, no mid-run injection.

UL/ETL Listed options available

Certification held by the original manufacturing partner. Documentation available upon request.

When to spec something else

A dot-free line with no diffuser

SMD packages sit at a fixed pitch, and the pitch sets how visible the dots are.

COB LED strip, a continuous dot-free line

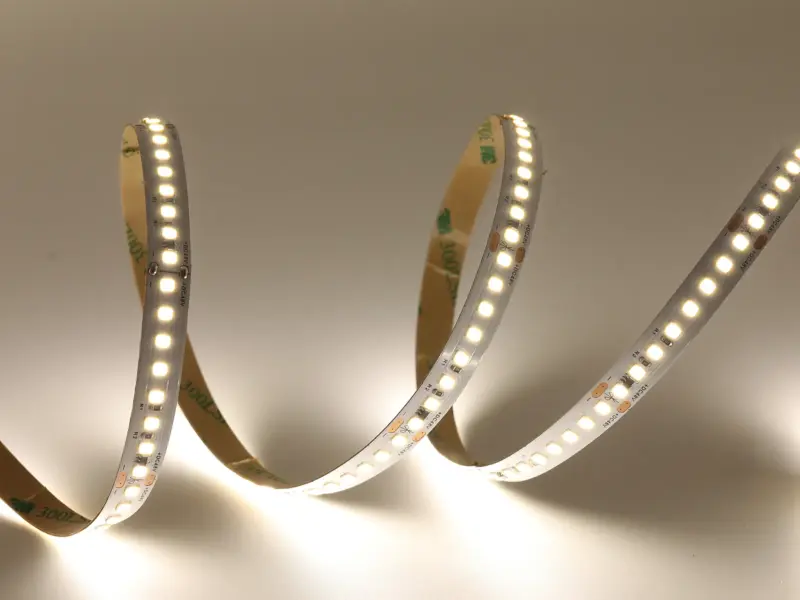

One feed for a long run

Standard 12V/24V strip runs 16 ft (5 m) per feed before voltage drop becomes visible.

Long-Run series: 48V to 82 ft (25 m), 48V constant current to 164 ft (50 m), 24V constant current to 82 ft (25 m)

A standard power supply on CC strip

Our constant-current models (UT-S2835-120-CC, UT-S2835-140-CC, UT-S5630-128-CC and the 48V-CC boards) do not run on a constant-voltage 24V or 48V supply.

A matched constant-current driver, specified on your quote

Wet or outdoor locations

The models in the tables are IP20; IP62 to IP68 versions are built on request, but strip engineered for permanent outdoor and wet locations is on the Outdoor page.

Outdoor & waterproof strip, IP65–IP68

Color scenes or pixel effects

The strips on this page are single-color.

RGB & RGBW or addressable strip

Bending flat around a curve

Standard PCB bends up and down, not sideways.

S-shape zigzag PCB, bends flat around curves and letterforms
Product range

Fourteen SMD families, 98 models, one spec conversation

2835 LED Strip

The workhorse single-color package in 12V and 24V — 60 to 240 LEDs per meter on 6, 8 or 10 mm boards, plus a 24 W/m high-output version. Ra≥80 standard, Ra≥90 on request.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) CRI Voltage
UT-S2835-60 60 2835 · 8 / 10mm 1.5 W/ft (4.8 W/m) 119–149 lm/ft (390–490 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
UT-S2835-120 120 2835 · 6 / 8 / 10mm 2.9 W/ft (9.6 W/m) 263–316 lm/ft (864–1037 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
UT-S2835-180 180 2835 · 8 / 10mm 4.4 W/ft (14.4 W/m) 408–492 lm/ft (1339–1613 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
UT-S2835-240 240 2835 · 10mm 5.9 W/ft (19.2 W/m) 574–685 lm/ft (1882–2246 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
UT-S2835-140-HO 140 2835 · 10mm · high output 7.3 W/ft (24 W/m) 688–819 lm/ft (2256–2688 lm/m) Ra≥80 · Ra≥90 opt. 24V

Every model: 12 CCTs from 1800K to 6500K, 10 single colors (red, orange, yellow, green, cyan, blue, purple, pink, Tiffany blue, Marrs green), 3-step SDCM single bin, LM-80 chips, 60,000 h rated life, PWM / 0-10V / DALI / TRIAC dimmable. IP62 to IP68 versions of every model on request.

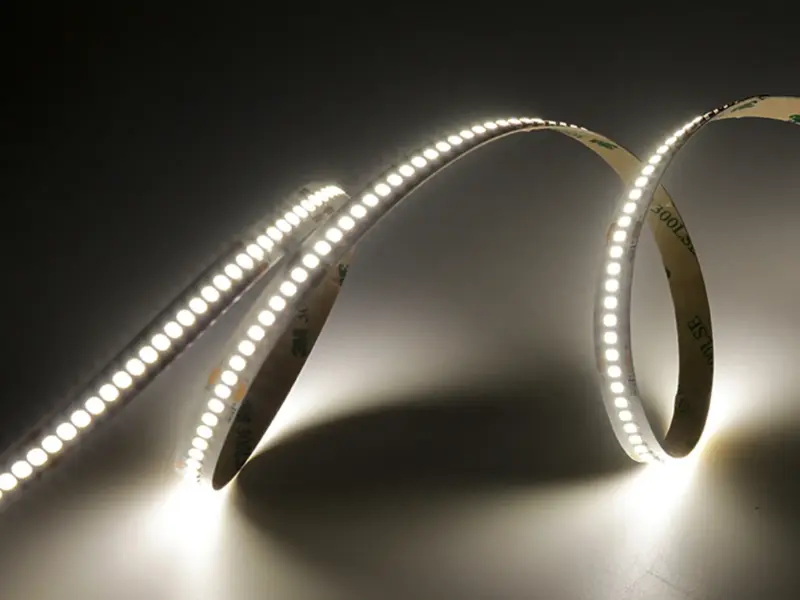

High-density 2835 SMD LED strip with 240 chips per meter glowing cool white

2835 High-Efficacy LED Strip

Nine 24V densities built to the EU ErP efficiency classes: 110–130 lm/W at Ra≥90 and up to 150 lm/W at Ra≥80, from a 1.5 W/ft cove strip to a 28 W/m board on 5 oz copper. Lower watts per foot for the same light where energy codes drive the spec.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI
UT-S2835-64-HE 64 2835 · 8mm · high efficacy 1.5 W/ft (4.8 W/m) 161–190 lm/ft (528–624 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt.
UT-S2835-70-HE 70 2835 · 8mm · high efficacy 1.5 W/ft (4.8 W/m) 146–168 lm/ft (480–552 lm/m) 100–115 lm/W Ra≥90 · Ra≥80 opt.
UT-S2835-80-HE 80 2835 · 8mm · high efficacy 1.5 W/ft (4.8 W/m) 161–190 lm/ft (528–624 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt.
UT-S2835-128-HE 128 2835 · 10mm · high efficacy 2.9 W/ft (9.6 W/m) 322–380 lm/ft (1056–1248 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt.
UT-S2835-140-HE 140 2835 · 10mm · high efficacy 2.9 W/ft (9.6 W/m) 293–336 lm/ft (960–1104 lm/m) 100–115 lm/W Ra≥90 · Ra≥80 opt.
UT-S2835-160-HE 160 2835 · 10mm · high efficacy 2.9 W/ft (9.6 W/m) 322–380 lm/ft (1056–1248 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt.
UT-S2835-210-HE 210 2835 · 10mm · high efficacy 4.4 W/ft (14.4 W/m) 439–505 lm/ft (1440–1656 lm/m) 100–115 lm/W Ra≥90 · Ra≥80 opt.
UT-S2835-240-HE 240 2835 · 10mm · high efficacy 4.4 W/ft (14.4 W/m) 483–571 lm/ft (1584–1872 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt.
UT-S2835-304-HE 304 2835 · 10mm · high efficacy · 5 oz copper PCB 8.5 W/ft (28 W/m) 939–1109 lm/ft (3080–3640 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt.

Output and efficacy are the Ra≥90 figures; the Ra≥80 version runs about 15% higher. R9 ≥40 on the Ra≥90 version.

Lit 2835 high-efficacy SMD LED strip coil in warm white showing its chip rows and DC24V cut marks

2835 PRO LED Strip — up to 200 lm/W

Our highest-efficacy single-color strip: 150–180 lm/W at Ra≥90 and 170–200 lm/W at Ra≥80 (EU ErP class C). Four 24V densities from 90 to 270 LEDs per meter — the strip to spec when lighting power density is the constraint.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI
UT-S2835-90-PRO 90 2835 · 8mm · PRO efficacy 1.5 W/ft (4.8 W/m) 219–263 lm/ft (720–864 lm/m) 150–180 lm/W Ra≥90 · Ra≥80 opt.
UT-S2835-180-PRO 180 2835 · 10mm · PRO efficacy 2.9 W/ft (9.6 W/m) 439–527 lm/ft (1440–1728 lm/m) 150–180 lm/W Ra≥90 · Ra≥80 opt.
UT-S2835-234-PRO 234 2835 · 10mm · PRO efficacy 3.7 W/ft (12 W/m) 549–658 lm/ft (1800–2160 lm/m) 150–180 lm/W Ra≥90 · Ra≥80 opt.
UT-S2835-270-PRO 270 2835 · 10mm · PRO efficacy 4.4 W/ft (14.4 W/m) 658–790 lm/ft (2160–2592 lm/m) 150–180 lm/W Ra≥90 · Ra≥80 opt.

Figures are the Ra≥90 version; the Ra≥80 version reaches 200 lm/W at 4000K–6000K. Same 12 CCTs and 10 single colors as the 2835 series.

2835 PRO SMD LED strip coils lit in warm white with dense chip rows on a white PCB

2835 High CRI LED Strip — Ra≥97, R9 95

Color-critical work without the full-spectrum premium: Ra≥97 with R9 95 at 130–149 lm/W, so retail, galleries and food display get honest reds at the efficacy of a standard strip. Four 24V densities.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI
UT-S2835-90-CRI97 90 2835 · 8mm 1.5 W/ft (4.8 W/m) 190–218 lm/ft (624–715 lm/m) 130–149 lm/W Ra≥97 · R9 95
UT-S2835-180-CRI97 180 2835 · 10mm 2.9 W/ft (9.6 W/m) 380–436 lm/ft (1248–1430 lm/m) 130–149 lm/W Ra≥97 · R9 95
UT-S2835-234-CRI97 234 2835 · 10mm 3.7 W/ft (12 W/m) 475–545 lm/ft (1560–1788 lm/m) 130–149 lm/W Ra≥97 · R9 95
UT-S2835-270-CRI97 270 2835 · 10mm 4.4 W/ft (14.4 W/m) 571–654 lm/ft (1872–2146 lm/m) 130–149 lm/W Ra≥97 · R9 95

UT-S2835-270-CRI97 output is derived from the listed efficacy and 14.4 W/m; the other three are listed values.

High CRI 2835 SMD LED strip coiled and lit in warm white on a reflective surface

Full Spectrum LED Strip (CRI 95–98)

The premium full-spectrum tier — CRI ≥95 with R1–R15 ≥90, and TM-30-15 fidelity Rf 94–95 / gamut Rg 101, plus the 480-LED Ra≥98 board. For retail, galleries, studios, and food display. CCT 2700K / 3000K / 4000K.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI
UT-SFS80-8 80 2835 · 8mm · full spectrum 1.5 W/ft (4.8 W/m) 160–183 lm/ft (528–600 lm/m) 110–125 lm/W Ra≥95 · Rf 94–95
UT-SFS160-8 160 2835 · 8mm · full spectrum 2.9 W/ft (9.6 W/m) 307–365 lm/ft (1008–1200 lm/m) 105–125 lm/W Ra≥95 · Rf 94–95
UT-SFS80-10 80 2835 · 10mm · full spectrum 4.4 W/ft (14.4 W/m) 439–483 lm/ft (1440–1584 lm/m) 100–110 lm/W Ra≥95 · Rf 94–95
UT-SFS160-8-HO 160 2835 · 8mm · full spectrum 5.9 W/ft (19.2 W/m) 585–702 lm/ft (1920–2304 lm/m) 100–120 lm/W Ra≥95 · Rf 94–95
UT-S2835-480-FS 480 2835 · 10mm · full spectrum 5.5 W/ft (18 W/m) — — Ra≥98

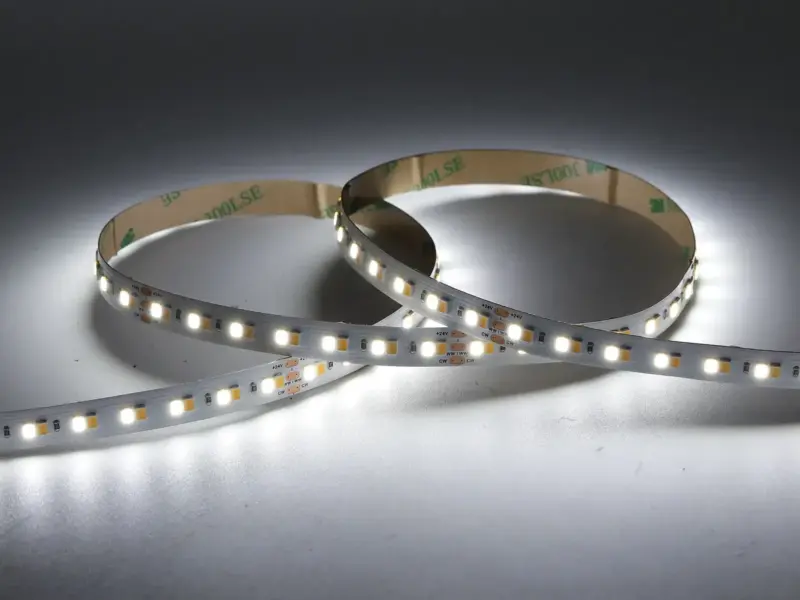

Full-spectrum SMD LED strip coiled to show dense chip rows on a clean white PCB

2110 & 2216 High Density LED Strip

Small packages at a tight pitch — 180 to 700 LEDs per meter at Ra≥90 — for the near-dot-free look through a shallow diffuser, in 24V and 12V/24V versions with cut points down to 0.39 in (10 mm).

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) CRI Voltage
UT-S2110-180 180 2110 · 6mm 2.4 W/ft (8 W/m) 193–224 lm/ft (632–736 lm/m) Ra≥90 24V
UT-S2110-240 240 2110 · 10mm 4.3 W/ft (14 W/m) 333–388 lm/ft (1092–1274 lm/m) Ra≥90 12V / 24V
UT-S2110-300 300 2110 · 10mm 5.5 W/ft (18 W/m) 417–527 lm/ft (1368–1728 lm/m) Ra≥90 24V
UT-S2110-350 350 2110 · 10mm 5.5 W/ft (18 W/m) 510–598 lm/ft (1674–1962 lm/m) Ra≥90 24V
UT-S2110-700 700 2110 · 10mm 5.9 W/ft (19.2 W/m) 568–661 lm/ft (1862–2170 lm/m) Ra≥90 24V
UT-S2216-240 240 2216 · 10mm 5.9 W/ft (19.2 W/m) 405–538 lm/ft (1328–1766 lm/m) Ra≥90 12V / 24V
UT-S2216-300 300 2216 · 10mm 6.1 W/ft (20 W/m) 469–530 lm/ft (1540–1740 lm/m) Ra≥90 12V / 24V
High density 2110 SMD LED strip on a black reel with the tail unrolled, small chips lit in warm white at a tight pitch

3528 LED Strip

The classic small package for value coves and under-cabinet runs: 60 to 180 LEDs per meter in 12V and 24V, plus a 240-LED double-row board. Ra≥80 standard, Ra≥90 on request.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) CRI Voltage
UT-S3528-60 60 3528 · 8mm 1.5 W/ft (4.8 W/m) 135–161 lm/ft (442–528 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
UT-S3528-120 120 3528 · 8 / 10mm 2.9 W/ft (9.6 W/m) 281–330 lm/ft (922–1084 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
UT-S3528-180 180 3528 · 10mm 4.4 W/ft (14.4 W/m) 413–496 lm/ft (1354–1627 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
UT-S3528-240-2R 240 3528 · 15mm · double row 5.9 W/ft (19.2 W/m) 445–538 lm/ft (1459–1766 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
3528 SMD LED strip on a black reel with the tail unrolled, square chips lit in warm white at 60 per meter

5050 & 5630 High Output LED Strip

More output per chip: 5050 at 30 and 60 LEDs per meter, and the 5630 package at 22–24 W/m for 2,000–3,300 lm/m from a single row — including a 24V constant-current 5630 at 126–150 lm/W.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) CRI Voltage
UT-S5050-30 30 5050 · 10mm 2.2 W/ft (7.2 W/m) — Ra≥90 12V / 24V
UT-S5050-60 60 5050 · 10mm 4.4 W/ft (14.4 W/m) 351–443 lm/ft (1152–1454 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
UT-S5630-120 120 5630 · 10mm 7.3 W/ft (24 W/m) 658–797 lm/ft (2160–2616 lm/m) Ra≥80 · Ra≥90 opt. 24V
UT-S5630-128-CC 128 5630 · 12mm · constant current 6.7 W/ft (22 W/m) 845–1006 lm/ft (2772–3300 lm/m) Ra≥80 · Ra≥90 opt. 24V constant current
UT-S5630-240-2R 240 5630 · 15mm · double row 7.3 W/ft (24 W/m) 622–768 lm/ft (2040–2520 lm/m) Ra≥80 · Ra≥90 opt. 24V

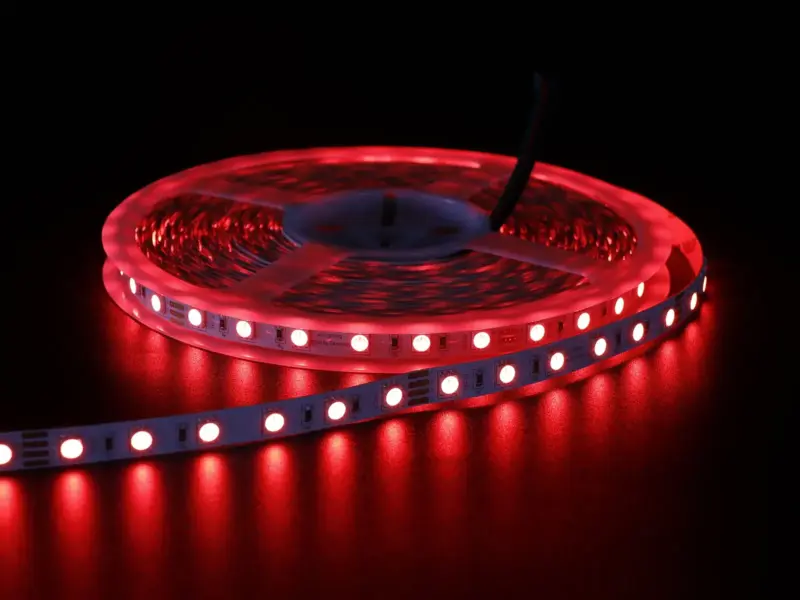

Lit 5050 SMD LED strip coil in red showing its large high-output chips

2022 & 3838 LED Strip

Newer chip packages that complement the 2835 range: 2022 packs 160 LEDs per meter into a compact footprint; 3838 carries CCT capability inside a single package.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) CRI Voltage
UT-S2022-160 160 2022 · 10mm · high dense 4.3 W/ft (14 W/m) — Ra≥90 24V
UT-S3838-120 120 3838 · 10mm 4.9 W/ft (16 W/m) — Ra≥90 24V

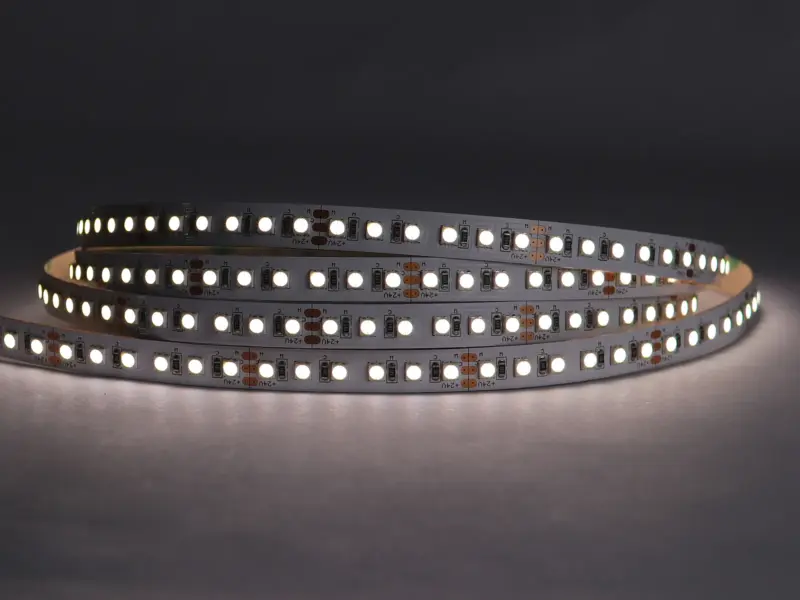

3838 SMD LED strip with dual-white CCT chips in dense rows on a slim PCB

Double-Row LED Strip & LED Light Sheet

When one row is not enough: double-row 18 mm boards to 480 LEDs per meter, triple-row 36 mm boards to 720, a 4-row and an 8-row board with two drive levels (14.4 or 28.8 W/m), and a flexible 18.9 × 9.4 in (480 × 240 mm) LED light sheet for backlit panels. 3,400–4,500 lm/m at 142–170 lm/W on the 320-LED and denser boards.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI
UT-S2835-240-2R 240 2835 · 18mm · double row 5.9 W/ft (19.2 W/m) 644–737 lm/ft (2112–2419 lm/m) 110–126 lm/W Ra≥90
UT-S2835-320-2R 320 2835 · 18mm · double row 7.3 W/ft (24 W/m) 1039–1170 lm/ft (3408–3840 lm/m) 142–160 lm/W Ra≥90
UT-S2835-480-2R 480 2835 · 18mm · double row 8.0 W/ft (26.4 W/m) 1207–1368 lm/ft (3960–4488 lm/m) 150–170 lm/W Ra≥90
UT-S2835-360-3R 360 2835 · 36mm · triple row 5.9 W/ft (19.2 W/m) 644–737 lm/ft (2112–2419 lm/m) 110–126 lm/W Ra≥90
UT-S2835-480-3R 480 2835 · 36mm · triple row 7.3 W/ft (24 W/m) 1097–1236 lm/ft (3600–4056 lm/m) 150–169 lm/W Ra≥90
UT-S2835-720-3R 720 2835 · 36mm · triple row 8.0 W/ft (26.4 W/m) 1207–1368 lm/ft (3960–4488 lm/m) 150–170 lm/W Ra≥90
UT-S2835-720-4R 720 2835 · 36mm · 4 rows · 2-level drive 4.4/8.8 W/ft (14.4/28.8 W/m) 623–1348 lm/ft (2044–4424 lm/m) 139–162 lm/W Ra≥90
UT-S2835-960-8R 960 2835 · 64mm · 8 rows · 2-level drive 4.4/8.8 W/ft (14.4/28.8 W/m) 601–1375 lm/ft (1971–4510 lm/m) 137–157 lm/W Ra≥90
UT-S2835-392-SHEET 392 2835 · sheet · flexible sheet 18.9 × 9.4 in (480 × 240 mm) 9.8 W/ft (32 W/m) 760–819 lm/ft (2493–2688 lm/m) 78–84 lm/W Ra≥90

All multi-row boards are 24V, Ra≥90, IP20. The 4-row and 8-row boards run at 14.4 W/m or 28.8 W/m depending on the driver current; the output column shows the span from the low drive at 2700K to the high drive at 4000K.

Double-row 2835 SMD LED strip coils lit in warm white showing two chip rows on an 18 mm board

Thin LED Strip — 3 mm to 6 mm Ultra-Narrow Boards

Boards from 3 to 6 mm wide for shadow gaps, shelf edges, mirror frames, handrail grooves and the slimmest aluminum channels, where an 8 or 10 mm strip will not fit. Most thin boards run at 6 W/m (1.8 W/ft), so a narrow channel can shed the heat; the 2835 160 LEDs/m board reaches 117–130 lm/W. The 3 mm and 3.5 mm boards come in 16 ft (5 m) lengths fed from one end.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Voltage
UT-S2835-120-UN 120 2835 · 4 / 5mm · ultra-narrow 2.9 W/ft (9.6 W/m) 240–310 lm/ft (787–1017 lm/m) 82–106 lm/W 12V / 24V
UT-S2835-120-UN4-ECO 120 2835 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 168–187 lm/ft (552–612 lm/m) @12V 92–102 lm/W 12V / 24V
UT-S2835-120-UN5-ECO 120 2835 · 5mm · ultra-narrow 5 mm 1.8 W/ft (6 W/m) 168–187 lm/ft (552–612 lm/m) 92–102 lm/W 12V
UT-S2835-120-UN35 120 2835 · 3.5mm · ultra-narrow 3.5 mm 1.8 W/ft (6 W/m) 157–174 lm/ft (516–570 lm/m) 86–95 lm/W 12V
UT-S2835-140-UN 140 2835 · 5mm · ultra-narrow 2.4 W/ft (8 W/m) 234–246 lm/ft (768–808 lm/m) 96–101 lm/W 24V
UT-S2835-150-UN 150 2835 · 5mm · ultra-narrow 5 mm 1.8 W/ft (6 W/m) 168–187 lm/ft (552–612 lm/m) 92–102 lm/W 12V
UT-S2835-160-UN 160 2835 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 214–238 lm/ft (702–780 lm/m) 117–130 lm/W 24V
UT-S2835-168-UN 168 2835 · 6mm · narrow 6 mm 2.4 W/ft (8 W/m) 234–246 lm/ft (768–808 lm/m) 96–101 lm/W 24V
UT-S3014-240-UN 240 3014 · 5mm · ultra-narrow 5 mm 1.8 W/ft (6 W/m) 152–157 lm/ft (498–516 lm/m) 83–86 lm/W 12V
UT-S2025-168-UN3 168 2025 · 3mm · ultra-narrow 3 mm 1.8 W/ft (6 W/m) 165–183 lm/ft (540–600 lm/m) 90–100 lm/W 12V
UT-S2110-240-UN3 240 2110 · 3mm · ultra-narrow 3 mm 1.5 W/ft (5 W/m) 123–139 lm/ft (405–455 lm/m) 81–91 lm/W 12V / 24V
UT-S2110-240-UN 240 2110 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 139–176 lm/ft (456–576 lm/m) 76–96 lm/W 12V / 24V
UT-S2110-280-UN 280 2110 · 4mm · ultra-narrow 4 mm 1.5 W/ft (5 W/m) 139–163 lm/ft (455–535 lm/m) 91–107 lm/W 24V
UT-S2216-120-UN 120 2216 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 144–166 lm/ft (474–546 lm/m) 79–91 lm/W 24V
UT-S2216-140-UN 140 2216 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 181–201 lm/ft (594–660 lm/m) 99–110 lm/W 24V
UT-S2216-168-UN35 168 2216 · 3.5mm · ultra-narrow 3.5 mm 1.8 W/ft (6 W/m) 157–174 lm/ft (516–570 lm/m) 86–95 lm/W 12V
UT-S2216-180-UN 180 2216 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 157–174 lm/ft (516–570 lm/m) 86–95 lm/W 12V
UT-S2216-192-UN 192 2216 · 5mm · ultra-narrow 5 mm 1.8 W/ft (6 W/m) 148–165 lm/ft (486–540 lm/m) 81–90 lm/W 24V
UT-S2216-204-UN 204 2216 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 143–155 lm/ft (468–510 lm/m) 78–85 lm/W 24V
UT-S2216-240-UN3 240 2216 · 3mm · ultra-narrow 3 mm 1.8 W/ft (6 W/m) 157–174 lm/ft (516–570 lm/m) 86–95 lm/W 24V
UT-S2216-240-UN 240 2216 · 5mm · ultra-narrow 5 mm 1.8 W/ft (6 W/m) 141–159 lm/ft (462–522 lm/m) 77–87 lm/W 24V

Output and efficacy are the 2700K–6500K range at the CRI listed, on bare strip. A 3–5 mm board needs a channel at least as wide inside; 12V boards run 16 ft (5 m) per feed.

Thin 2835 SMD LED strip on a narrow white board, looping in coils with its adhesive backing showing

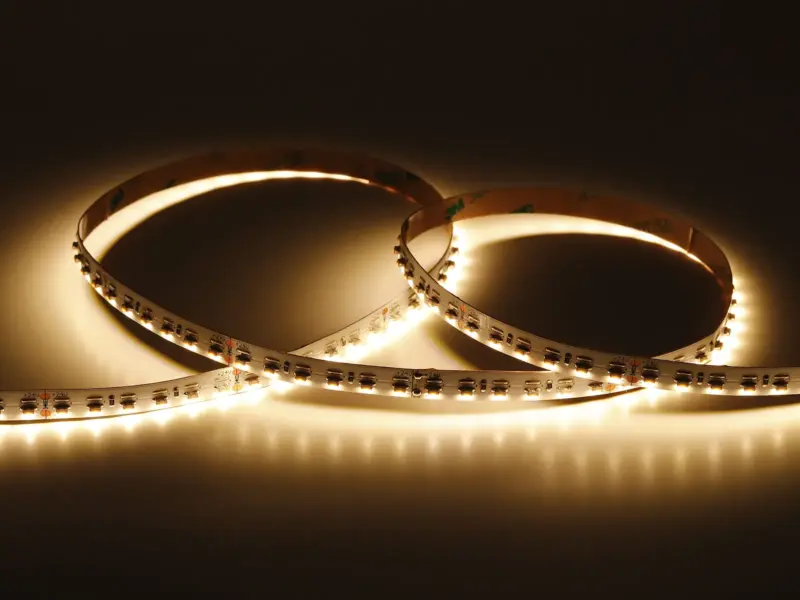

Side-View & S-Shape LED Strip

Form factors for geometry a standard strip cannot follow: 3014 side-view boards for edge-lit profiles and acrylic, and the S-shape zigzag PCB that bends flat around curves and letterforms. For 3 to 6 mm boards, see the thin series above.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) CRI Voltage
UT-S3014-60-SV 60 3014 · 5 / 8mm · side-view 1.8 W/ft (6 W/m) 159–196 lm/ft (522–642 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
UT-S3014-120-SV 120 3014 · 5 / 8mm · side-view 4.4 W/ft (14.4 W/m) 351–443 lm/ft (1152–1454 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
UT-S2835-60-SS 60 2835 · 8mm · S-shape (zigzag) 2.4 W/ft (8 W/m) 193–251 lm/ft (632–824 lm/m) Ra≥80 · Ra≥90 opt. 12V / 24V
UT-S2835-120-SS 120 2835 · 8mm · S-shape (zigzag) 2.9 W/ft (9.6 W/m) — Ra≥90 12V / 24V

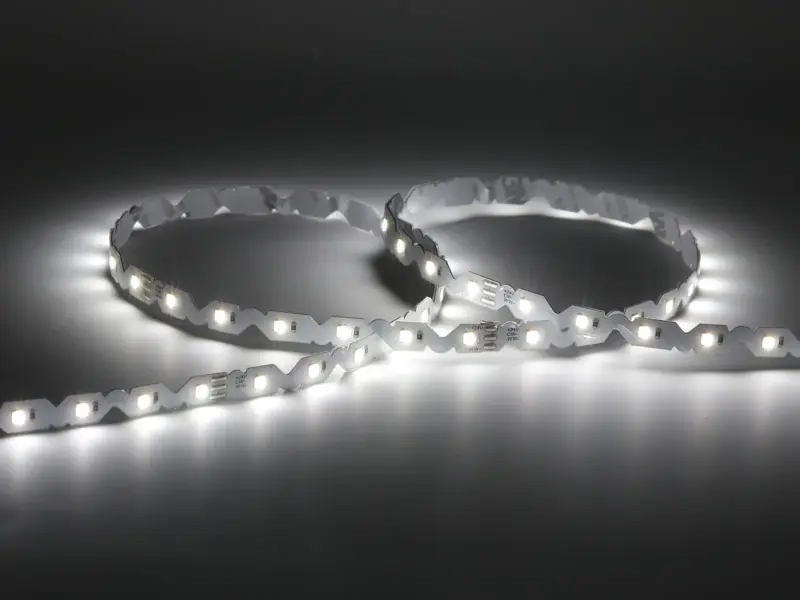

Flexible S-shape SMD LED strip bent into tight curves showing its zigzag PCB

Cuttable LED Strip — Cut Every 5 to 8 mm

For millwork, shelving, display cases and signs where the light has to stop exactly at a panel edge. Each LED is its own circuit, so the strip cuts every 5 to 8.33 mm instead of every 25 to 100 mm, and the leftover piece still lights. Ultra-dense 200 LEDs/m board on 24V reaches 110–122 lm/W with a cut every 0.20 in (5 mm).

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) Voltage Cut increment
UT-S2835-120-FC5 120 2835 · 5mm · cuttable 2.7 W/ft (9 W/m) 261–290 lm/ft (855–950 lm/m) 12V 0.33 in (8.33 mm)
UT-S2835-120-FC5-24V 120 2835 · 5mm · cuttable 2.7 W/ft (9 W/m) 285–315 lm/ft (936–1,035 lm/m) 24V 0.33 in (8.33 mm)
UT-S2835-120-FC8 120 2835 · 8mm · cuttable 2.7 W/ft (9 W/m) 261–290 lm/ft (855–950 lm/m) 12V 0.33 in (8.33 mm)
UT-S2025-120-FC 120 2025 · 7mm · cuttable 3.0 W/ft (10 W/m) 247–274 lm/ft (810–900 lm/m) 12V 0.33 in (8.33 mm)
UT-S2835-160-FC 160 2835 · 6mm · cuttable 2.4 W/ft (8 W/m) 219–244 lm/ft (720–800 lm/m) 24V 0.25 in (6.25 mm)
UT-S2835-160-FC-HO 160 2835 · 6mm · cuttable 3.7 W/ft (12 W/m) 306–340 lm/ft (1,004–1,116 lm/m) 24V 0.25 in (6.25 mm)
UT-S2835-200-FC 200 2835 · 8mm · cuttable 5.1 W/ft (16.8 W/m) 564–627 lm/ft (1,850–2,056 lm/m) 24V 0.20 in (5 mm)

Output and efficacy are the 2700K–6000K range at Ra≥90, on bare strip.

Cuttable SMD LED strip with closely spaced LEDs, twisted into loops on a light grey surface

Long-Run LED Strip — 48V & Constant Current

48V boards feed 49–82 ft (15–25 m) from one end and 48V constant-current boards 164 ft (50 m); 24V constant-current boards run 49–98 ft (15–30 m), the 120 LEDs/m long-run boards the full 98 ft (30 m). One driver per corridor, no mid-run injection. Constant-current (CC) models need a constant-current driver, not a 24V or 48V constant-voltage supply.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) Voltage Max run
UT-S2835-160-48V 160 2835 · 10mm 4.4 W/ft (14.4 W/m) — 48V 49 ft (15 m) single feed
UT-S2835-176-48V 176 2835 · 12mm · high efficacy 1.8 W/ft (6 W/m) 271–293 lm/ft (888–960 lm/m) 48V 66 ft (20 m) single feed
UT-S2835-84-48V 84 2835 · 10mm 2.1 W/ft (7 W/m) 203–235 lm/ft (665–770 lm/m) 48V 82 ft (25 m) single feed
UT-S2835-140-48V 140 2835 · 10mm 2.1 W/ft (7 W/m) 335–376 lm/ft (1099–1232 lm/m) 48V 82 ft (25 m) single feed
UT-S2835-78-48V-CC 78 2835 · 10mm 1.3 W/ft (4.2 W/m) 114–137 lm/ft (374–449 lm/m) 48V constant current 164 ft (50 m) single feed
UT-S2835-140-48V-CC 140 2835 · 10mm 2.1 W/ft (7 W/m) 335–376 lm/ft (1099–1232 lm/m) 48V constant current 164 ft (50 m) single feed
UT-S2835-60-CC 60 2835 · 10mm 3.2 W/ft (10.5 W/m) 259–333 lm/ft (851–1092 lm/m) 24V constant current 49 ft (15 m) single feed
UT-S2835-120-CC 120 2835 · 10mm 3.0 W/ft (10 W/m) 247–317 lm/ft (810–1040 lm/m) 24V constant current 49 ft (15 m) single feed
UT-S2835-120-CC-ECO 120 2835 · 10mm · low power 1.5 W/ft (4.8 W/m) 119–152 lm/ft (389–499 lm/m) 24V constant current 82 ft (25 m) single feed
UT-S2835-120-CC-LR 120 2835 · 10mm 2.7 W/ft (9 W/m) 247–274 lm/ft (810–900 lm/m) 24V constant current 98 ft (30 m) single feed
UT-S2835-120-CC-LR12 120 2835 · 12mm 2.7 W/ft (9 W/m) 247–274 lm/ft (810–900 lm/m) 24V constant current 98 ft (30 m) single feed
UT-S2835-140-CC 140 2835 · 10mm 3.7 W/ft (12 W/m) — 24V constant current 65 ft (20 m) single feed

Run lengths are the single-feed maximum at the listed power; the 48V and CC boards keep uniform brightness end to end at those lengths.

48V SMD LED strip coiled in long loops for extended single-feed runs
Specifications

Master spec table

All 98 single-color SMD models in one table. Full photometric files and IES data ship with your quote.

Specs reviewed

How to read our model numbers: UT-S{package}-{LEDs per meter}; suffixes: HE high efficacy · PRO 200 lm/W · CRI97 Ra≥97 · FS full spectrum CRI 98 · HO high output · ECO low power · SV side-view · SS S-shape · UN ultra-narrow (UN35 = 3.5 mm, UN4 = 4 mm, UN5 = 5 mm, UN3 = 3 mm) · 2R/3R/4R/8R rows · SHEET light sheet · 48V · CC constant current · FC cuttable (one LED per cut) · LR long-run 30 m · LR12 12 mm board.

Tap a row for full specs.

Model LEDs/m Package · Width Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI CCT Voltage Cut increment Max run IP rating
UT-S2835-60 60 2835 · 8 / 10mm 1.5 W/ft (4.8 W/m) 119–149 lm/ft (390–490 lm/m) 81–102 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-120 120 2835 · 6 / 8 / 10mm 2.9 W/ft (9.6 W/m) 263–316 lm/ft (864–1037 lm/m) 90–108 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-180 180 2835 · 8 / 10mm 4.4 W/ft (14.4 W/m) 408–492 lm/ft (1339–1613 lm/m) 93–112 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 0.66 in (16.67 mm) @12V / 1.31 in (33.33 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-240 240 2835 · 10mm 5.9 W/ft (19.2 W/m) 574–685 lm/ft (1882–2246 lm/m) 98–117 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 0.49 in (12.5 mm) @12V / 0.98 in (25 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-140-HO 140 2835 · 10mm · high output 7.3 W/ft (24 W/m) 688–819 lm/ft (2256–2688 lm/m) 94–112 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-64-HE 64 2835 · 8mm · high efficacy 1.5 W/ft (4.8 W/m) 161–190 lm/ft (528–624 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 4.92 in (125 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-70-HE 70 2835 · 8mm · high efficacy 1.5 W/ft (4.8 W/m) 146–168 lm/ft (480–552 lm/m) 100–115 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-80-HE 80 2835 · 8mm · high efficacy 1.5 W/ft (4.8 W/m) 161–190 lm/ft (528–624 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-128-HE 128 2835 · 10mm · high efficacy 2.9 W/ft (9.6 W/m) 322–380 lm/ft (1056–1248 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 2.46 in (62.5 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-140-HE 140 2835 · 10mm · high efficacy 2.9 W/ft (9.6 W/m) 293–336 lm/ft (960–1104 lm/m) 100–115 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-160-HE 160 2835 · 10mm · high efficacy 2.9 W/ft (9.6 W/m) 322–380 lm/ft (1056–1248 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-210-HE 210 2835 · 10mm · high efficacy 4.4 W/ft (14.4 W/m) 439–505 lm/ft (1440–1656 lm/m) 100–115 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 1.31 in (33.3 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-240-HE 240 2835 · 10mm · high efficacy 4.4 W/ft (14.4 W/m) 483–571 lm/ft (1584–1872 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 1.31 in (33.3 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-304-HE 304 2835 · 10mm · high efficacy · 5 oz copper PCB 8.5 W/ft (28 W/m) 939–1109 lm/ft (3080–3640 lm/m) 110–130 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 1.04 in (26.3 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-90-PRO 90 2835 · 8mm · PRO efficacy 1.5 W/ft (4.8 W/m) 219–263 lm/ft (720–864 lm/m) 150–180 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-180-PRO 180 2835 · 10mm · PRO efficacy 2.9 W/ft (9.6 W/m) 439–527 lm/ft (1440–1728 lm/m) 150–180 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-234-PRO 234 2835 · 10mm · PRO efficacy 3.7 W/ft (12 W/m) 549–658 lm/ft (1800–2160 lm/m) 150–180 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 1.51 in (38.46 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-270-PRO 270 2835 · 10mm · PRO efficacy 4.4 W/ft (14.4 W/m) 658–790 lm/ft (2160–2592 lm/m) 150–180 lm/W Ra≥90 · Ra≥80 opt. 1800–6500K 24V 1.31 in (33.3 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-90-CRI97 90 2835 · 8mm 1.5 W/ft (4.8 W/m) 190–218 lm/ft (624–715 lm/m) 130–149 lm/W Ra≥97 · R9 95 1800–6500K 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-180-CRI97 180 2835 · 10mm 2.9 W/ft (9.6 W/m) 380–436 lm/ft (1248–1430 lm/m) 130–149 lm/W Ra≥97 · R9 95 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-234-CRI97 234 2835 · 10mm 3.7 W/ft (12 W/m) 475–545 lm/ft (1560–1788 lm/m) 130–149 lm/W Ra≥97 · R9 95 1800–6500K 24V 1.51 in (38.46 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2835-270-CRI97 270 2835 · 10mm 4.4 W/ft (14.4 W/m) 571–654 lm/ft (1872–2146 lm/m) 130–149 lm/W Ra≥97 · R9 95 1800–6500K 24V 1.31 in (33.3 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-SFS80-8 80 2835 · 8mm · full spectrum 1.5 W/ft (4.8 W/m) 160–183 lm/ft (528–600 lm/m) 110–125 lm/W Ra≥95 · Rf 94–95 2700K / 3000K / 4000K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-SFS160-8 160 2835 · 8mm · full spectrum 2.9 W/ft (9.6 W/m) 307–365 lm/ft (1008–1200 lm/m) 105–125 lm/W Ra≥95 · Rf 94–95 2700K / 3000K / 4000K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-SFS80-10 80 2835 · 10mm · full spectrum 4.4 W/ft (14.4 W/m) 439–483 lm/ft (1440–1584 lm/m) 100–110 lm/W Ra≥95 · Rf 94–95 2700K / 3000K / 4000K 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20
UT-SFS160-8-HO 160 2835 · 8mm · full spectrum 5.9 W/ft (19.2 W/m) 585–702 lm/ft (1920–2304 lm/m) 100–120 lm/W Ra≥95 · Rf 94–95 2700K / 3000K / 4000K 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20
UT-S2835-480-FS 480 2835 · 10mm · full spectrum 5.5 W/ft (18 W/m) — — Ra≥98 2700K / 3000K / 4000K 24V 0.98 in (25 mm) 16 ft (5 m)/feed IP20
UT-S2110-180 180 2110 · 6mm 2.4 W/ft (8 W/m) 193–224 lm/ft (632–736 lm/m) 79–92 lm/W Ra≥90 1800–6500K 24V 1.31 in (33.33 mm) 16 ft (5 m)/feed IP20 · IP62–IP67 opt.
UT-S2110-240 240 2110 · 10mm 4.3 W/ft (14 W/m) 333–388 lm/ft (1092–1274 lm/m) 78–91 lm/W Ra≥90 1800–6500K 12V / 24V 0.49 in (12.5 mm) @12V / 0.98 in (25 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2110-300 300 2110 · 10mm 5.5 W/ft (18 W/m) 417–527 lm/ft (1368–1728 lm/m) 76–96 lm/W Ra≥90 1800–6500K 24V 0.79 in (20 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2110-350 350 2110 · 10mm 5.5 W/ft (18 W/m) 510–598 lm/ft (1674–1962 lm/m) 93–109 lm/W Ra≥90 1800–6500K 24V 0.79 in (20 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2110-700 700 2110 · 10mm 5.9 W/ft (19.2 W/m) 568–661 lm/ft (1862–2170 lm/m) 97–113 lm/W Ra≥90 1800–6500K 24V 0.39 in (10 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2216-240 240 2216 · 10mm 5.9 W/ft (19.2 W/m) 405–538 lm/ft (1328–1766 lm/m) 72–92 lm/W Ra≥90 1800–6500K 12V / 24V 0.49 in (12.5 mm) @12V / 0.98 in (25 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S2216-300 300 2216 · 10mm 6.1 W/ft (20 W/m) 469–530 lm/ft (1540–1740 lm/m) 77–87 lm/W Ra≥90 1800–6500K 12V / 24V 0.39 in (10 mm) @12V / 0.79 in (20 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S3528-60 60 3528 · 8mm 1.5 W/ft (4.8 W/m) 135–161 lm/ft (442–528 lm/m) 92–110 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S3528-120 120 3528 · 8 / 10mm 2.9 W/ft (9.6 W/m) 281–330 lm/ft (922–1084 lm/m) 96–113 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S3528-180 180 3528 · 10mm 4.4 W/ft (14.4 W/m) 413–496 lm/ft (1354–1627 lm/m) 94–113 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 0.66 in (16.67 mm) @12V / 1.31 in (33.33 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S3528-240-2R 240 3528 · 15mm · double row 5.9 W/ft (19.2 W/m) 445–538 lm/ft (1459–1766 lm/m) 76–92 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S5050-30 30 5050 · 10mm 2.2 W/ft (7.2 W/m) — — Ra≥90 2700–6500K 12V / 24V 3.94 in (100 mm) 16 ft (5 m)/feed IP20
UT-S5050-60 60 5050 · 10mm 4.4 W/ft (14.4 W/m) 351–443 lm/ft (1152–1454 lm/m) 80–101 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S5630-120 120 5630 · 10mm 7.3 W/ft (24 W/m) 658–797 lm/ft (2160–2616 lm/m) 90–109 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S5630-128-CC 128 5630 · 12mm · constant current 6.7 W/ft (22 W/m) 845–1006 lm/ft (2772–3300 lm/m) 126–150 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V constant current 2.46 in (62.5 mm) 16 ft (5 m)/feed IP20 · IP62–IP68 opt.
UT-S5630-240-2R 240 5630 · 15mm · double row 7.3 W/ft (24 W/m) 622–768 lm/ft (2040–2520 lm/m) 85–105 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP66 opt.
UT-S2022-160 160 2022 · 10mm · high dense 4.3 W/ft (14 W/m) — — Ra≥90 2700–6500K 24V 0.98 in (25 mm) 16 ft (5 m)/feed IP20
UT-S3838-120 120 3838 · 10mm 4.9 W/ft (16 W/m) — — Ra≥90 2700–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-S2835-240-2R 240 2835 · 18mm · double row 5.9 W/ft (19.2 W/m) 644–737 lm/ft (2112–2419 lm/m) 110–126 lm/W Ra≥90 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-S2835-320-2R 320 2835 · 18mm · double row 7.3 W/ft (24 W/m) 1039–1170 lm/ft (3408–3840 lm/m) 142–160 lm/W Ra≥90 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-S2835-480-2R 480 2835 · 18mm · double row 8.0 W/ft (26.4 W/m) 1207–1368 lm/ft (3960–4488 lm/m) 150–170 lm/W Ra≥90 1800–6500K 24V 1.31 in (33.3 mm) 16 ft (5 m)/feed IP20
UT-S2835-360-3R 360 2835 · 36mm · triple row 5.9 W/ft (19.2 W/m) 644–737 lm/ft (2112–2419 lm/m) 110–126 lm/W Ra≥90 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-S2835-480-3R 480 2835 · 36mm · triple row 7.3 W/ft (24 W/m) 1097–1236 lm/ft (3600–4056 lm/m) 150–169 lm/W Ra≥90 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-S2835-720-3R 720 2835 · 36mm · triple row 8.0 W/ft (26.4 W/m) 1207–1368 lm/ft (3960–4488 lm/m) 150–170 lm/W Ra≥90 1800–6500K 24V 1.31 in (33.3 mm) 16 ft (5 m)/feed IP20
UT-S2835-720-4R 720 2835 · 36mm · 4 rows · 2-level drive 4.4/8.8 W/ft (14.4/28.8 W/m) 623–1348 lm/ft (2044–4424 lm/m) 139–162 lm/W Ra≥90 1800–6500K 24V 1.31 in (33.3 mm) 16 ft (5 m)/feed IP20
UT-S2835-960-8R 960 2835 · 64mm · 8 rows · 2-level drive 4.4/8.8 W/ft (14.4/28.8 W/m) 601–1375 lm/ft (1971–4510 lm/m) 137–157 lm/W Ra≥90 1800–6500K 24V 1.31 in (33.3 mm) 16 ft (5 m)/feed IP20
UT-S2835-392-SHEET 392 2835 · sheet · flexible sheet 18.9 × 9.4 in (480 × 240 mm) 9.8 W/ft (32 W/m) 760–819 lm/ft (2493–2688 lm/m) 78–84 lm/W Ra≥90 1800–6500K 24V 0.67 in (17.1 mm) grid — IP20
UT-S2835-120-UN 120 2835 · 4 / 5mm · ultra-narrow 2.9 W/ft (9.6 W/m) 240–310 lm/ft (787–1017 lm/m) 82–106 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP65H–IP67 opt.
UT-S2835-120-UN4-ECO 120 2835 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 168–187 lm/ft (552–612 lm/m) @12V 92–102 lm/W Ra≥90 2700–6500K 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20
UT-S2835-120-UN5-ECO 120 2835 · 5mm · ultra-narrow 5 mm 1.8 W/ft (6 W/m) 168–187 lm/ft (552–612 lm/m) 92–102 lm/W Ra≥90 2700–6500K 12V 0.98 in (25 mm) 16 ft (5 m)/feed IP20
UT-S2835-120-UN35 120 2835 · 3.5mm · ultra-narrow 3.5 mm 1.8 W/ft (6 W/m) 157–174 lm/ft (516–570 lm/m) 86–95 lm/W Ra≥90 2700–6500K 12V 0.98 in (25 mm) 16 ft (5 m) IP20
UT-S2835-140-UN 140 2835 · 5mm · ultra-narrow 2.4 W/ft (8 W/m) 234–246 lm/ft (768–808 lm/m) 96–101 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20 · IP65H–IP67 opt.
UT-S2835-150-UN 150 2835 · 5mm · ultra-narrow 5 mm 1.8 W/ft (6 W/m) 168–187 lm/ft (552–612 lm/m) 92–102 lm/W Ra≥90 2700–6500K 12V 0.79 in (20 mm) 16 ft (5 m)/feed IP20
UT-S2835-160-UN 160 2835 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 214–238 lm/ft (702–780 lm/m) 117–130 lm/W Ra≥90 2700–6500K 24V 1.97 in (50 mm) 16 ft (5 m) IP20
UT-S2835-168-UN 168 2835 · 6mm · narrow 6 mm 2.4 W/ft (8 W/m) 234–246 lm/ft (768–808 lm/m) 96–101 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V 1.41 in (35.71 mm) 16 ft (5 m)/feed IP20 · IP62–IP67 opt.
UT-S3014-240-UN 240 3014 · 5mm · ultra-narrow 5 mm 1.8 W/ft (6 W/m) 152–157 lm/ft (498–516 lm/m) 83–86 lm/W Ra≥90 2700–6500K 12V 0.98 in (25 mm) 16 ft (5 m)/feed IP20
UT-S2025-168-UN3 168 2025 · 3mm · ultra-narrow 3 mm 1.8 W/ft (6 W/m) 165–183 lm/ft (540–600 lm/m) 90–100 lm/W Ra≥90 2700–6500K 12V 0.70 in (17.86 mm) 16 ft (5 m) IP20
UT-S2110-240-UN3 240 2110 · 3mm · ultra-narrow 3 mm 1.5 W/ft (5 W/m) 123–139 lm/ft (405–455 lm/m) 81–91 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 0.49 in (12.5 mm) @12V / 0.98 in (25 mm) @24V 16 ft (5 m)/feed IP20
UT-S2110-240-UN 240 2110 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 139–176 lm/ft (456–576 lm/m) 76–96 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 0.49 in (12.5 mm) @12V / 0.98 in (25 mm) @24V 16 ft (5 m)/feed IP20
UT-S2110-280-UN 280 2110 · 4mm · ultra-narrow 4 mm 1.5 W/ft (5 W/m) 139–163 lm/ft (455–535 lm/m) 91–107 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V 0.98 in (25 mm) 16 ft (5 m)/feed IP20
UT-S2216-120-UN 120 2216 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 144–166 lm/ft (474–546 lm/m) 79–91 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-S2216-140-UN 140 2216 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 181–201 lm/ft (594–660 lm/m) 99–110 lm/W Ra≥90 2700–6500K 24V 1.97 in (50 mm) 16 ft (5 m) IP20
UT-S2216-168-UN35 168 2216 · 3.5mm · ultra-narrow 3.5 mm 1.8 W/ft (6 W/m) 157–174 lm/ft (516–570 lm/m) 86–95 lm/W Ra≥90 2700–6500K 12V 0.70 in (17.86 mm) 16 ft (5 m) IP20
UT-S2216-180-UN 180 2216 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 157–174 lm/ft (516–570 lm/m) 86–95 lm/W Ra≥90 2700–6500K 12V 0.66 in (16.67 mm) 16 ft (5 m) IP20
UT-S2216-192-UN 192 2216 · 5mm · ultra-narrow 5 mm 1.8 W/ft (6 W/m) 148–165 lm/ft (486–540 lm/m) 81–90 lm/W Ra≥90 2700–6500K 24V 1.23 in (31.25 mm) 16 ft (5 m)/feed IP20
UT-S2216-204-UN 204 2216 · 4mm · ultra-narrow 4 mm 1.8 W/ft (6 W/m) 143–155 lm/ft (468–510 lm/m) 78–85 lm/W Ra≥90 2700–6500K 24V 1.16 in (29.4 mm) 16 ft (5 m)/feed IP20
UT-S2216-240-UN3 240 2216 · 3mm · ultra-narrow 3 mm 1.8 W/ft (6 W/m) 157–174 lm/ft (516–570 lm/m) 86–95 lm/W Ra≥90 2700–6500K 24V 0.98 in (25 mm) 16 ft (5 m) IP20
UT-S2216-240-UN 240 2216 · 5mm · ultra-narrow 5 mm 1.8 W/ft (6 W/m) 141–159 lm/ft (462–522 lm/m) 77–87 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V 0.98 in (25 mm) 16 ft (5 m)/feed IP20 · IP65H–IP67 opt.
UT-S3014-60-SV 60 3014 · 5 / 8mm · side-view 1.8 W/ft (6 W/m) 159–196 lm/ft (522–642 lm/m) 87–107 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP66 opt.
UT-S3014-120-SV 120 3014 · 5 / 8mm · side-view 4.4 W/ft (14.4 W/m) 351–443 lm/ft (1152–1454 lm/m) 80–101 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20 · IP66 opt.
UT-S2835-60-SS 60 2835 · 8mm · S-shape (zigzag) 2.4 W/ft (8 W/m) 193–251 lm/ft (632–824 lm/m) 79–103 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 12V / 24V 1.97 in (50 mm) @12V / 3.94 in (100 mm) @24V 16 ft (5 m)/feed IP20 · IP62 opt.
UT-S2835-120-SS 120 2835 · 8mm · S-shape (zigzag) 2.9 W/ft (9.6 W/m) — — Ra≥90 2700–6500K 12V / 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
UT-S2835-120-FC5 120 2835 · 5mm · cuttable 2.7 W/ft (9 W/m) 261–290 lm/ft (855–950 lm/m) 95–105 lm/W Ra≥90 2700–6000K 12V 0.33 in (8.33 mm) 16 ft (5 m)/feed IP20
UT-S2835-120-FC5-24V 120 2835 · 5mm · cuttable 2.7 W/ft (9 W/m) 285–315 lm/ft (936–1,035 lm/m) 104–115 lm/W Ra≥90 2700–6000K 24V 0.33 in (8.33 mm) 16 ft (5 m)/feed IP20
UT-S2835-120-FC8 120 2835 · 8mm · cuttable 2.7 W/ft (9 W/m) 261–290 lm/ft (855–950 lm/m) 95–100 lm/W Ra≥90 2700–6000K 12V 0.33 in (8.33 mm) 16 ft (5 m)/feed IP20
UT-S2025-120-FC 120 2025 · 7mm · cuttable 3.0 W/ft (10 W/m) 247–274 lm/ft (810–900 lm/m) 81–90 lm/W Ra≥90 2700–6000K 12V 0.33 in (8.33 mm) 16 ft (5 m)/feed IP20
UT-S2835-160-FC 160 2835 · 6mm · cuttable 2.4 W/ft (8 W/m) 219–244 lm/ft (720–800 lm/m) 90–100 lm/W Ra≥90 2700–6000K 24V 0.25 in (6.25 mm) 16 ft (5 m)/feed IP20
UT-S2835-160-FC-HO 160 2835 · 6mm · cuttable 3.7 W/ft (12 W/m) 306–340 lm/ft (1,004–1,116 lm/m) 84–93 lm/W Ra≥90 2700–6000K 24V 0.25 in (6.25 mm) 16 ft (5 m)/feed IP20
UT-S2835-200-FC 200 2835 · 8mm · cuttable 5.1 W/ft (16.8 W/m) 564–627 lm/ft (1,850–2,056 lm/m) 110–122 lm/W Ra≥90 2700–6000K 24V 0.20 in (5 mm) 16 ft (5 m)/feed IP20
UT-S2835-160-48V 160 2835 · 10mm 4.4 W/ft (14.4 W/m) — — Ra≥90 2700–6500K 48V 1.97 in (50 mm) 49 ft (15 m) single feed IP20
UT-S2835-176-48V 176 2835 · 12mm · high efficacy 1.8 W/ft (6 W/m) 271–293 lm/ft (888–960 lm/m) 148–160 lm/W Ra≥90 1800–6500K 48V 1.79 in (45.45 mm) 66 ft (20 m) single feed IP20 · IP62–IP68 opt.
UT-S2835-84-48V 84 2835 · 10mm 2.1 W/ft (7 W/m) 203–235 lm/ft (665–770 lm/m) 95–110 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 48V 6.56 in (166.66 mm) 82 ft (25 m) single feed IP20 · IP62–IP68 opt.
UT-S2835-140-48V 140 2835 · 10mm 2.1 W/ft (7 W/m) 335–376 lm/ft (1099–1232 lm/m) 157–176 lm/W Ra≥90 1800–6500K 48V 3.94 in (100 mm) 82 ft (25 m) single feed IP20 · IP62–IP68 opt.
UT-S2835-78-48V-CC 78 2835 · 10mm 1.3 W/ft (4.2 W/m) 114–137 lm/ft (374–449 lm/m) 89–107 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 48V constant current 6.54 in (166 mm) 164 ft (50 m) single feed IP20 · IP62–IP68 opt.
UT-S2835-140-48V-CC 140 2835 · 10mm 2.1 W/ft (7 W/m) 335–376 lm/ft (1099–1232 lm/m) 157–176 lm/W Ra≥90 1800–6500K 48V constant current 3.94 in (100 mm) 164 ft (50 m) single feed IP20 · IP62–IP68 opt.
UT-S2835-60-CC 60 2835 · 10mm 3.2 W/ft (10.5 W/m) 259–333 lm/ft (851–1092 lm/m) 81–104 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V constant current 3.94 in (100 mm) 49 ft (15 m) single feed IP20 · IP62–IP68 opt.
UT-S2835-120-CC 120 2835 · 10mm 3.0 W/ft (10 W/m) 247–317 lm/ft (810–1040 lm/m) 81–104 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V constant current 1.97 in (50 mm) 49 ft (15 m) single feed IP20 · IP62–IP68 opt.
UT-S2835-120-CC-ECO 120 2835 · 10mm · low power 1.5 W/ft (4.8 W/m) 119–152 lm/ft (389–499 lm/m) 81–104 lm/W Ra≥80 · Ra≥90 opt. 1800–6500K 24V constant current 1.97 in (50 mm) 82 ft (25 m) single feed IP20 · IP62–IP68 opt.
UT-S2835-120-CC-LR 120 2835 · 10mm 2.7 W/ft (9 W/m) 247–274 lm/ft (810–900 lm/m) 90–100 lm/W Ra≥90 2700–6000K 24V constant current 1.97 in (50 mm) 98 ft (30 m) single feed IP20
UT-S2835-120-CC-LR12 120 2835 · 12mm 2.7 W/ft (9 W/m) 247–274 lm/ft (810–900 lm/m) 90–100 lm/W Ra≥90 2700–6000K 24V constant current 1.97 in (50 mm) 98 ft (30 m) single feed IP20
UT-S2835-140-CC 140 2835 · 10mm 3.7 W/ft (12 W/m) — — Ra≥90 2700–6500K 24V constant current 1.97 in (50 mm) 65 ft (20 m) single feed IP20

Output and efficacy are listed for the CRI tier named first in the CRI column, as the 2700K–6000K range; the other tier is available on request. IP62 to IP68 versions of the IP20 models are built on request.

Waterproof versions

IP options

The same strip, sealed for damp, wet or submerged locations. Pick the rating and we build the sealed version to order.

Cross-sections are illustrative; the same IP code can be built more than one way. The models in the tables are IP20; IP62 to IP68 versions are built on request. IP65H is the heat-shrink version. Sealing adds width and height and can shift color slightly, so the sealed size is confirmed with your quote.
Applications

Where single-color SMD earns its keep

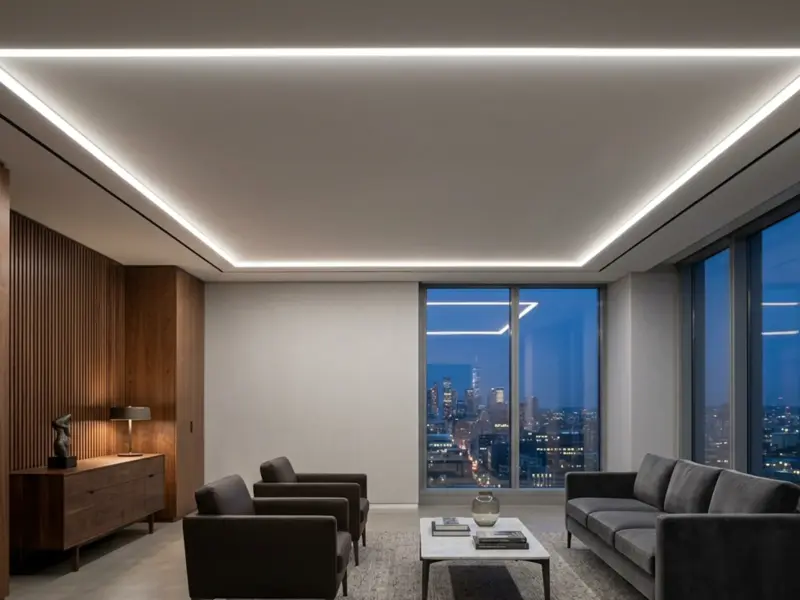

Recessed ceiling cove washed by one even diffused band of SMD LED strip light

Cove & Perimeter

The cost-efficient spec for diffused coves and perimeter slots where the strip sits behind a lens.

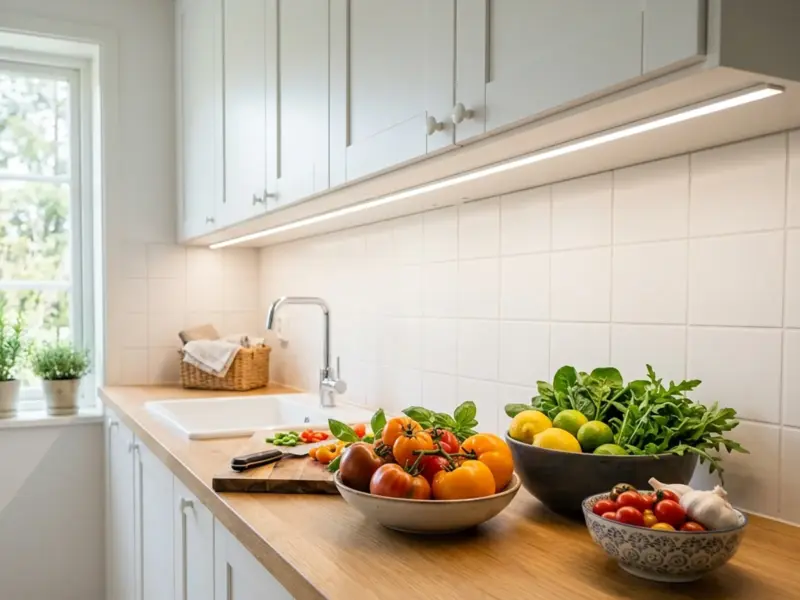

SMD LED strip under white kitchen cabinets casting even shadow-free task light

Under-Cabinet & Task

High-CRI task light over counters and work surfaces that renders food and finishes accurately.

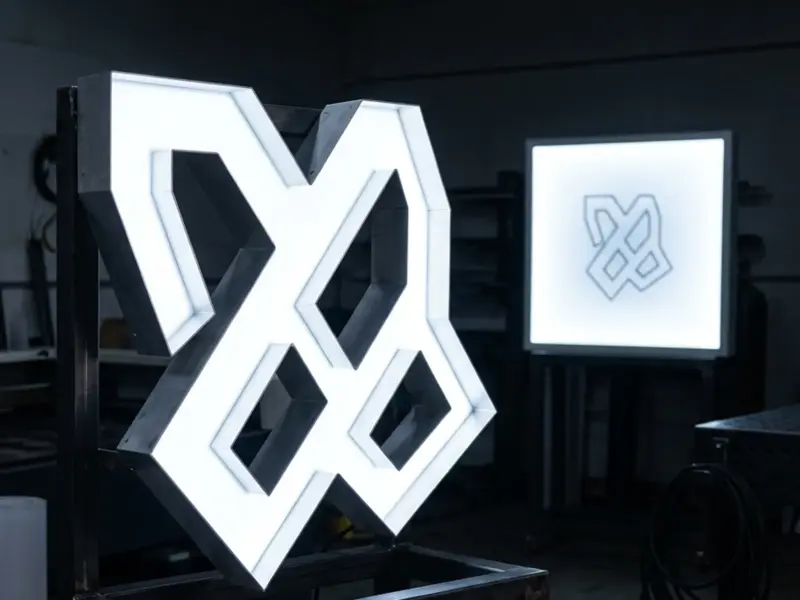

Channel letter form and light box panel evenly backlit by dense SMD LED strip

Signage & Backlighting

Dense 240–960 LEDs/m single and multi-row boards, and the 480 × 240 mm light sheet, fill channel letters, light boxes, and evenly backlit panels behind diffusion.

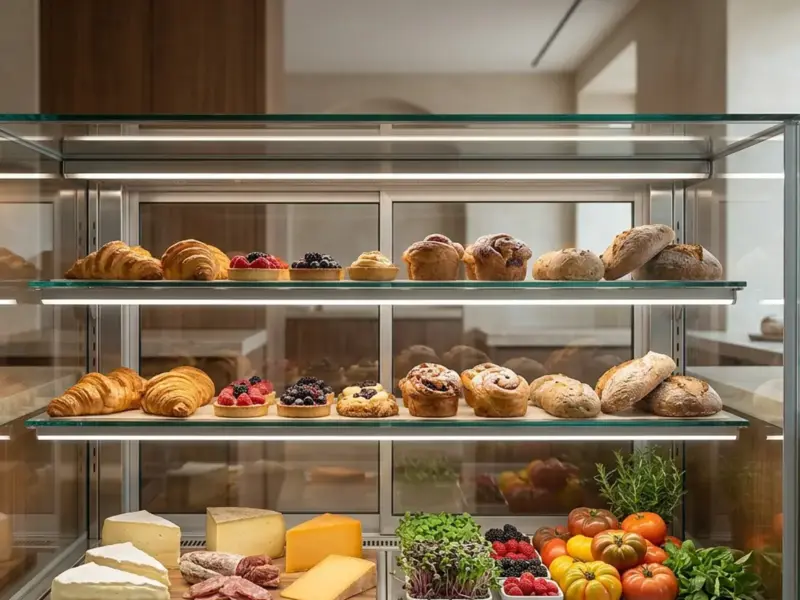

Bakery display case shelves lit by SMD LED strip keeping food colors true

Retail & Display

Ra≥97 (R9 95) and Ra≥98 full-spectrum tiers keep merchandise, artwork, and food color honest in cases and on shelves.

Compliance

Certifications

Products are sourced from qualified manufacturing partners, are CE Marked, and are available with UL Listed, ETL Listed, FCC compliant, RoHS compliant and other applicable configurations. Certification coverage varies by model. Certification is held by the original manufacturing partner. Documentation and listing information are available upon request.

UL ETL LM-80 CE RoHS

Projects outside North America: products are CE Marked, with RoHS compliant options and drivers matched to local mains. International orders

FAQ

SMD LED strip questions

What does "5050" or "2835" mean on an LED strip?

The four digits are the chip’s physical dimensions in millimeters — a 2835 chip measures 2.8 × 3.5 mm, a 5050 chip 5.0 × 5.0 mm. Package size affects output per chip, heat, and density options. It is a size code, not a quality grade.

Read the LED strip spec sheet guide

2835 vs 5050 — which should I choose?

2835 for most single-color work — it runs denser (up to 304 LEDs/m in one row, 960 on multi-row boards), cooler, and more efficient, up to 200 lm/W in our PRO series. 5050 and 5630 put more output on each chip, useful at 30–120 LEDs/m where one bright row matters more than a smooth line. All carry the same CRI tiers and warranty.

Compare 2835, 5050 and 2216

Standard, High-Efficacy or PRO 2835 — which do I spec?

Standard (UT-S2835-60 to -240) is the 12V/24V value tier at 90–117 lm/W. High-Efficacy (-HE) runs 110–130 lm/W at Ra≥90 on 24V and is the usual pick for coves and offices. PRO (-PRO) reaches 180 lm/W at Ra≥90 and 200 lm/W at Ra≥80, for projects where lighting power density or energy rebates decide the spec. All three share the same 12 CCTs.

Read the lumens per watt guide

Is the 200 lm/W figure for the strip or for the LED?

It is the figure for the whole strip. UT-S2835-180-PRO lists 180 lm/W at Ra≥90 and 200 lm/W at Ra≥80 at 2.9 W/ft, which is about 440–530 lm/ft at Ra≥90. When a sheet lists efficacy, multiply by watts per foot to compare lumens per foot — our tables list both.

Read the LED strip spec sheet guide

How many amps does LED strip draw?

Divide watts per meter by voltage, then multiply by run length. Example: UT-S2835-120 at 9.6 W/m on 24V draws 0.4 A per meter — a 5 m run pulls 2 A. Keep the connected load at or below 80% of the driver's rating.

Read the power supply sizing guide

Are SMD LED strips dimmable?

Yes — every single-color series dims smoothly to below 1% with a compatible driver: PWM, 0-10V, DALI, or TRIAC depending on the control system; we match the driver at quote time. All pairings are verified flicker-free before shipment.

Read the LED strip dimming guide

How many strips can one power supply run?

Total the wattage of every connected run and keep it at or below 80% of the supply’s rating. A 150 W driver safely runs about 8 m of 14.4 W/m strip. We size drivers per circuit from our Drivers, Controllers & Connectors line at quote time.

Read the power supply sizing guide

How long can a single run be?

49–82 ft (15–25 m) on the 48V boards, 164 ft (50 m) on the 48V constant-current boards, and 49–82 ft (15–25 m) on the 24V constant-current boards from a single feed — see the Long-Run series. Standard 12V/24V runs are 16 ft (5 m) per feed before voltage drop becomes visible.

Read the LED strip voltage drop guide

What is SMD LED strip?

SMD LED strip is tape with surface-mounted LED packages soldered at a fixed pitch along a flexible PCB, as opposed to COB strip where bare chips sit under one continuous phosphor layer. The package name, 2835 or 5050 for example, is the chip's size in millimeters, and the pitch and package together set the output, the dot visibility and the cut interval.

Compare 2835, 5050 and 2216

Does the LED chip brand on a datasheet tell me how good the strip is?

Not by itself. A brand name like Samsung or Nichia usually names the company that packaged the LED, not the die maker or the strip assembler. It says nothing about the bin ordered, the drive current or the board. Treat it as a lead, then ask for the package datasheet, its LM-80 report and the strip's LM-79 report.

Read the chip brand guide

More answers in our guides (1)
Request a quote

Spec your SMD project

Send your project details — an engineer replies with matched strip, drivers, and documentation.

main-inquiry

We typically respond within 24 hours. No spam, ever.
