LED Neon Flex

Silicone LED neon strip lights for signage and architectural lines — top, side, 3D, 270° and 360° profiles from 3×5 mm to 70×30 mm, on 24V or 48V, with constant-current runs up to 164 ft (50 m).

LED neon flex lit cool white, coiled in loose loops on a glossy black surface with water droplets
Run length
Up to 164 ft (50 m) at 48 V
Supply range

Our neon flex program covers cross-sections from 3×5 to 70×30 mm plus Ø5–Ø40 round, bending top, side, 3D, 270° and a full 360°. Neon strip lights come in mono, tunable CCT, RGB, RGBW and SPI or DMX addressable versions on 24V, with 48V constant-current versions that run up to 164 ft (50 m) on one feed. White versions are Ra≥90, and high-efficacy builds reach 141 lm/W. is standard with sealed end caps, with IP68 underwater and walkable in-ground profiles, recessed, anti-glare and black-body options for channel letters, signs and architecture. UL Listed options are available, with documentation for your submittal package.

Cross-section
Top view
Key features

Why contractors spec our neon flex

True dot-free neon glow

A continuous line of light with no visible LEDs, day or night.

Top, side, 3D & round

Five bend and beam types trace letterforms and architecture in any plane, from 3×5 mm micro neon to 70×30 mm facade profiles.

48V runs to 164 ft (50 m)

48V constant-current versions feed a long elevation from one end with no mid-run brightness fade.

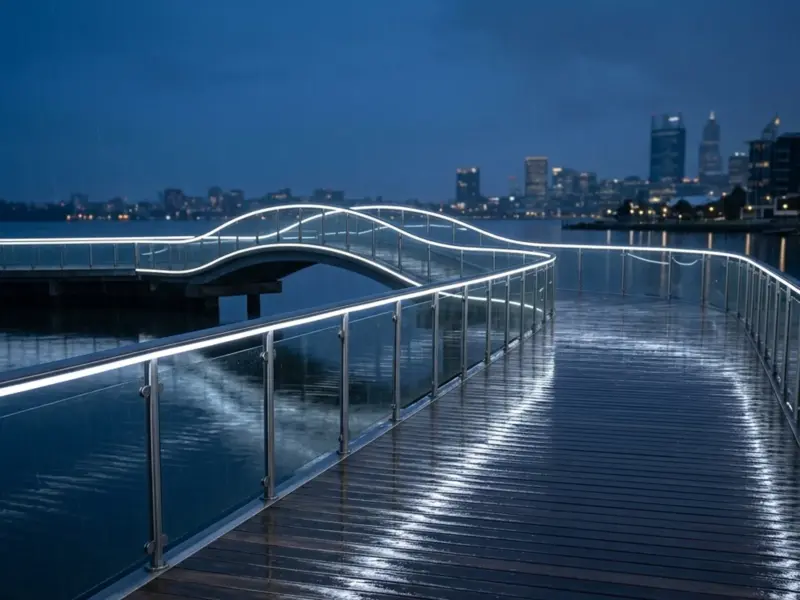

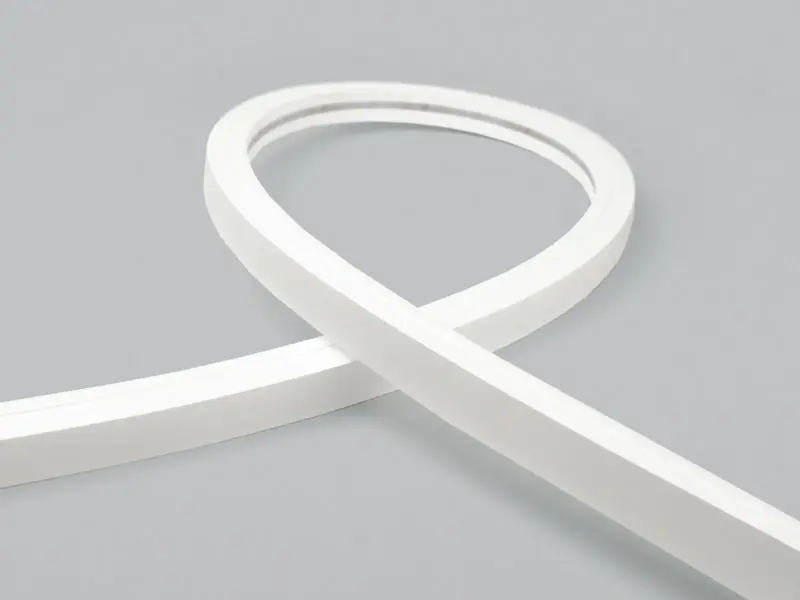

IP67 standard, IP68 options

Weatherproof by default; PU underwater neon for pools and fountains, walkable in-ground profiles.

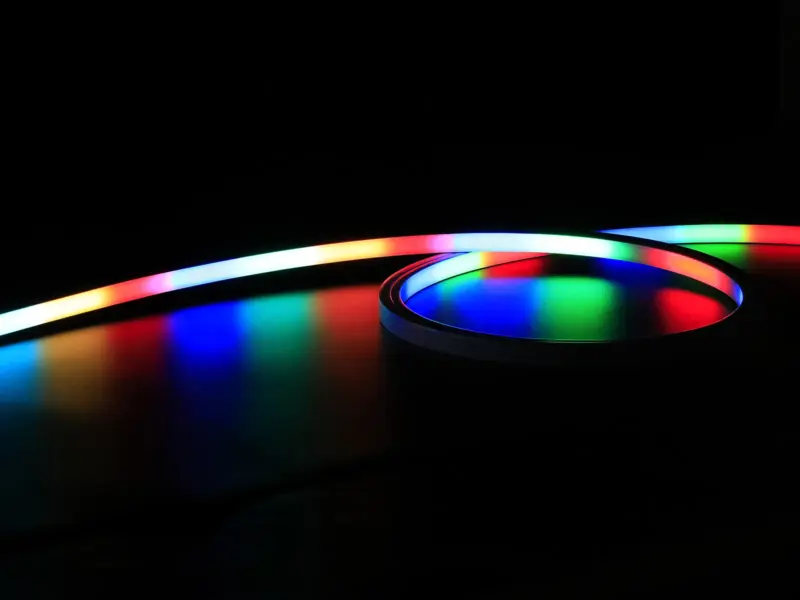

SPI & DMX addressable

Pixel control for animated signs, chasing effects and DMX512 architectural systems.

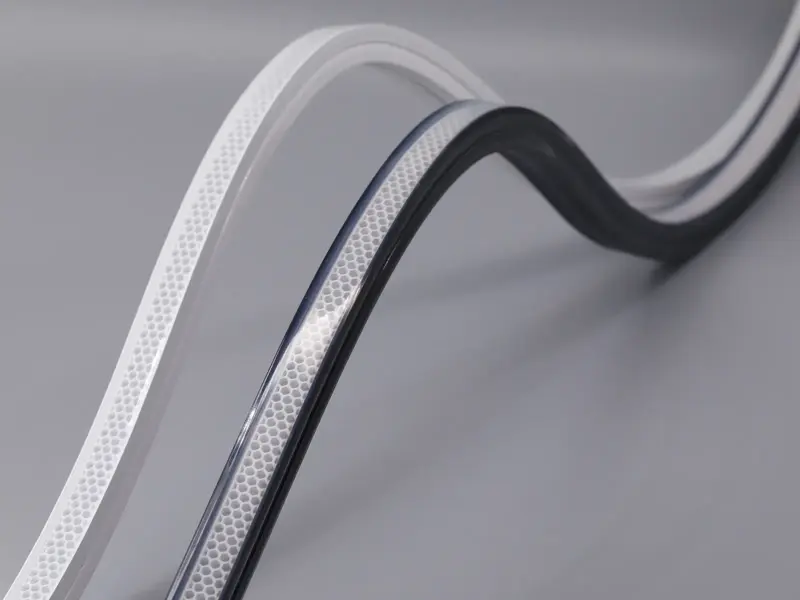

Anti-glare & black-body options

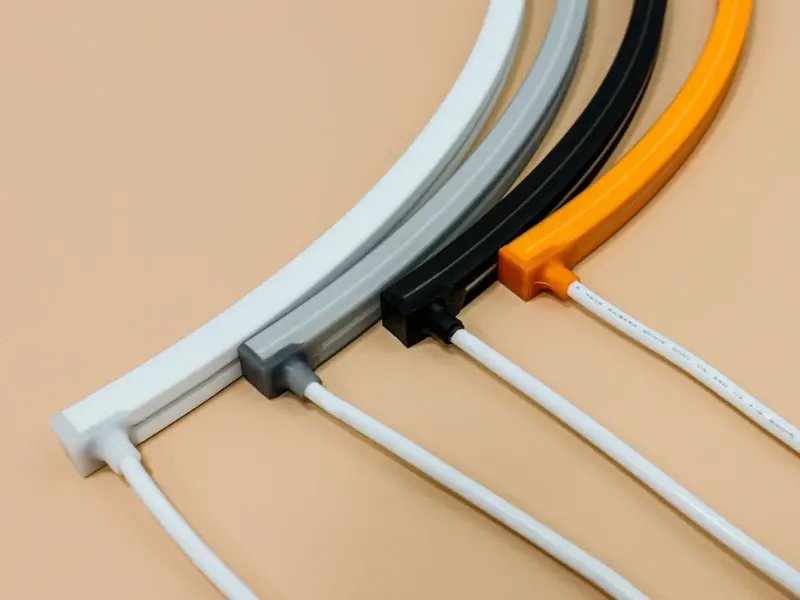

A honeycomb anti-glare face for eye-level lines, and black or colored bodies that disappear on dark surfaces.

When to spec something else

Bending in a direction the profile is not built for

Each profile bends only in its rated direction: top, side or 3D.

Side bend for letters, 3D bend for two planes

Curves tighter than the rated bend

Each profile has a minimum bend diameter, from 1.18 in (30 mm) on micro side bend to 19.7 in (500 mm) on 50 mm and wider profiles.

Mini & Nano: the 3×6 mm profile bends to a 1.18 in (30 mm) diameter

One reel lit as one long run

A reel is a supply length, not a run length. Standard 24V profiles run 16 ft (5 m) per feed.

48V constant-current versions, up to 164 ft (50 m) at 5 W/m, or feed from both ends

A standard 24V supply on CC profiles

Profiles listed as 24V constant current do not run on a constant-voltage supply.

A matched constant-current driver, specified on your quote

A bare line at eye level, viewed straight on

An open emitting face seen head-on can glare.

Anti-glare neon profiles
Product range

Thirteen neon families, one spec conversation

Top Bend Neon Flex

The standard neon flex family: light leaves the top face and the profile bends up and down along it, for waves, arcs and outlines in one plane. Thirteen cross-sections from a discreet 6×6 mm to a 70×30 mm facade profile, in mono, tunable white, RGB, RGBW and SPI/DMX versions, plus four chip-scale (CSP) builds.

Model Cross-section Color options Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Max run Min bend Ø
UT-N0606-TB 6×6mm Mono 1.8 W/ft (6 W/m) 126 lm/ft (414 lm/m) 69 lm/W 16 ft (5 m) Ø 1.97 in (50 mm)
UT-N0808-TB 8×8mm Mono 1.8 W/ft (6 W/m) 110 lm/ft (360 lm/m) 60 lm/W 16 ft (5 m) Ø 3.94 in (100 mm)
UT-N1010-TB 10×10mm Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 141 lm/ft (464 lm/m) 58 lm/W · HE to 85 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 3.94 in (100 mm)
UT-N1010-TB-180 10×10mm Mono / RGB / SPI 2.4 W/ft (8 W/m) 180 lm/ft (592 lm/m) 74 lm/W · HE to 85 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 3.94 in (100 mm)
UT-N1010-TB-FC 10×10mm Mono 3.0 W/ft (10 W/m) 253–283 lm/ft (830–930 lm/m) 83–93 lm/W 16 ft (5 m) —
UT-N1212-TB-ECO 12×12mm Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 168 lm/ft (552 lm/m) 69 lm/W · HE to 83 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 5.91 in (150 mm)
UT-N1212-TB 12×12mm Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 163 lm/ft (536 lm/m) 67 lm/W · HE to 80 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 5.91 in (150 mm)
UT-N1615-TB 16×15mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 219 lm/ft (720 lm/m) 60 lm/W · HE to 78 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-N1616-TB 16×16mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 300 lm/ft (984 lm/m) 82 lm/W · HE to 106 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-N1616-TB-LR 16×16mm Mono 2.9 W/ft (9.6 W/m) 167–184 lm/ft (547–605 lm/m) 57–63 lm/W 131 ft (40 m) single feed Ø 7.87 in (200 mm)
UT-N1616-TB-FC 16×16mm Mono 4.6 W/ft (15 W/m) 288–320 lm/ft (945–1,050 lm/m) 63–70 lm/W 16 ft (5 m) —
UT-N2016-TB 20×16mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 238 lm/ft (780 lm/m) 65 lm/W · HE to 78 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-N2020-TB 20×20mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 194 lm/ft (636 lm/m) 53 lm/W · HE to 64 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 9.84 in (250 mm)
UT-N3020-TB 30×20mm Mono / CCT / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 251 lm/ft (825 lm/m) 55 lm/W · HE to 66 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 11.8 in (300 mm)
UT-N5025-TB 50×25mm Mono / CCT / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 302 lm/ft (990 lm/m) 66 lm/W · HE to 79 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 19.7 in (500 mm)
UT-N7030-TB 70×30mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 216 lm/ft (708 lm/m) 59 lm/W · HE to 71 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 19.7 in (500 mm)
UT-N2525-TB 25×25mm Mono / RGB / RGBW (DMX512) 4.9 W/ft (16 W/m) — — On request from Ø 14.17 in (360 mm)
UT-N3017-TB 30×17mm Mono / RGBW (DMX512) 6.1 W/ft (20 W/m) — — On request from Ø 15.75 in (400 mm)
UT-CSP-320-NC 9.8×9.8mm Mono 3.0 W/ft (10 W/m) — — — —
UT-CSP-280-N06 10×6mm Mono 2.9 W/ft (9.6 W/m) — — — —
UT-CSP-320-N10 10×10mm Mono 3.0 W/ft (10 W/m) — — — —
UT-CSP-540-N12-RGB 12×8mm RGB 4.6 W/ft (15 W/m) — — — —

Output and efficacy are the white Ra≥90 version at 24V. "HE" is the high-brightness or ultra-brightness build of the same profile, more lumens at the same watts. Long runs use the 48V constant-current version at its lowest power (5 W/m); higher power shortens the run. UT-CSP rows are chip-scale-package builds and cut at 1.97 in (50 mm) or shorter.

They have been a trusted partner on numerous hotel, office, and commercial projects across the UK. We have used Unitop’s LED strip lights, LED neon strips, and other lighting products for many years, and the quality has consistently impressed both us and our customers.
Jeff S., Founder & Managing Director United Kingdom

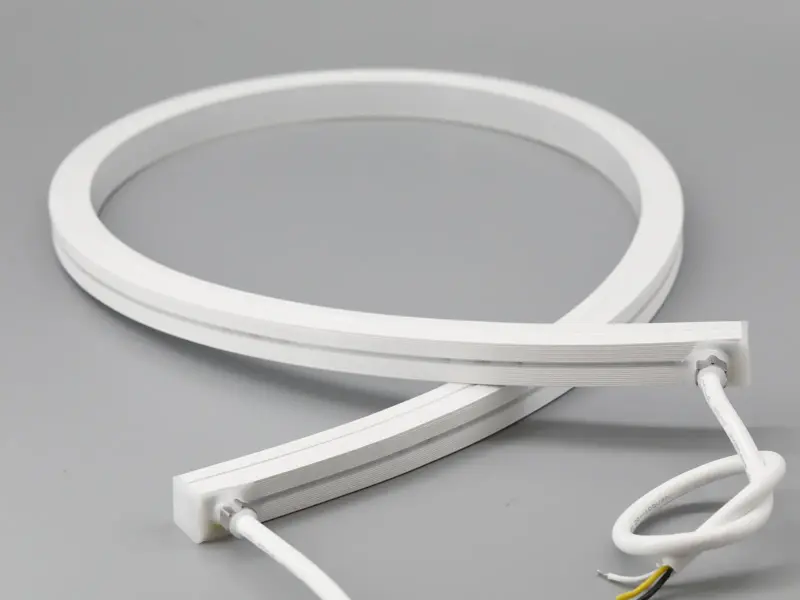

Unlit top-bend LED neon flex coiled to show its dome light surface
How it bends
Top bend neon cross-section: flat board, light leaves the top face Bends up and down
  • Bends up and down, over the lit face. Not sideways.
  • Minimum bend diameter: Bend radius column.
All bend types and cable exits

Side Bend Neon Flex

A side-emitting profile that bends edgewise: the natural choice for channel letters, script signs and tight letterform curves. Ten cross-sections from 6×12 mm to a 30×32 mm profile for large lettering, most in mono, tunable white, RGB, RGBW, SPI and DMX.

Model Cross-section Color options Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Max run Min bend Ø
UT-N0612-SB 6×12mm Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 88 lm/ft (288 lm/m) 36 lm/W · HE to 43 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 1.97 in (50 mm)
UT-N1212-SB 12×12mm Mono / CCT / RGB 3.7 W/ft (12 W/m) — — 62 ft (19 m) CC Ø 9.45 in (240 mm)
UT-N1010-SB 10×10mm Mono 2.4 W/ft (8 W/m) 110 lm/ft (360 lm/m) 45 lm/W 16 ft (5 m) · 66 ft (20 m) on 24V CC at 5 W/m Ø 3.94 in (100 mm)
UT-N1018-SB 10×18mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 102 lm/ft (336 lm/m) 28 lm/W · HE to 34 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-N1020-SB 10×20mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 102 lm/ft (336 lm/m) 28 lm/W · HE to 34 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-N1220-SB 12×20mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 102 lm/ft (336 lm/m) 28 lm/W · HE to 34 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-N1220-SB-LR 12×20mm Mono 2.9 W/ft (9.6 W/m) 76–82 lm/ft (250–270 lm/m) 26–28 lm/W 131 ft (40 m) single feed Ø 7.87 in (200 mm)
UT-N1220-SB-FC 12×20mm Mono 4.6 W/ft (15 W/m) 169–187 lm/ft (555–615 lm/m) 37–41 lm/W 16 ft (5 m) —
UT-N1615-SB 16×15mm Mono / CCT / RGB / RGBW / SPI 3.7 W/ft (12 W/m) 238 lm/ft (780 lm/m) 65 lm/W · HE to 78 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-N1616-SB 16×16mm Mono / CCT / RGB / RGBW / SPI 3.7 W/ft (12 W/m) 238 lm/ft (780 lm/m) 65 lm/W · HE to 78 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-N1616-SB-LR 16×16mm Mono 2.9 W/ft (9.6 W/m) 122–143 lm/ft (399–470 lm/m) 42–49 lm/W 131 ft (40 m) single feed Ø 7.87 in (200 mm)
UT-N2020-SB 20×20mm Mono / CCT / RGB / RGBW / SPI 3.7 W/ft (12 W/m) 157 lm/ft (516 lm/m) 43 lm/W · HE to 52 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 9.84 in (250 mm)
UT-N3032-SB 30×32mm Mono / CCT / RGB / RGBW / SPI 3.0 W/ft (10 W/m) 155 lm/ft (510 lm/m) 51 lm/W 16 ft (5 m) · 89 ft (27 m) on 24V CC at 5 W/m Ø 11.8 in (300 mm)

Side-emitting profiles light through a deeper silicone body, so lumens per watt run lower than top bend at the same size. Long runs use the 48V constant-current version at 5 W/m, or 24V constant current on UT-N1010-SB and UT-N3032-SB.

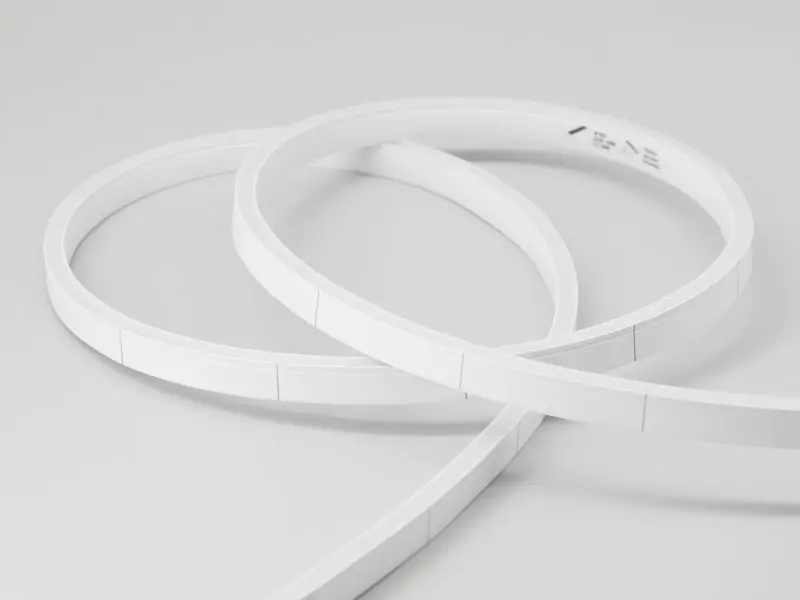

Side-bend LED neon flex coiled edgewise showing its slim profile
How it bends
Side bend neon cross-section: board on edge against one wall, light leaves the narrow top Bends left and right
  • Bends left and right, edgewise: traces letters and logos. Not up and down.
  • Minimum bend diameter: Bend radius column.
All bend types and cable exits

3D Bendable Neon Flex

Bends vertically and horizontally in one run, for forms that turn in more than one plane, from sculptural signs to wrapped columns and handrails. Seven profiles from 8×8 to 23×23 mm; the 16×16 mm profile reaches 141 lm/W in its high-efficacy build.

Model Cross-section Color options Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Max run Min bend Ø
UT-N0808-3D 8×8mm Mono 1.8 W/ft (6 W/m) 86 lm/ft (282 lm/m) 47 lm/W 16 ft (5 m) Ø 5.91 in (150 mm)
UT-N1010-3D 10×10mm Mono 2.1 W/ft (7 W/m) 139 lm/ft (455 lm/m) 65 lm/W · HE to 81 lm/W 16 ft (5 m) · 131 ft (40 m) on 48V at 5 W/m Ø 5.91 in (150 mm)
UT-N1212-3D 12×12mm Mono 2.1 W/ft (7 W/m) 132 lm/ft (434 lm/m) 62 lm/W · HE to 75 lm/W 16 ft (5 m) · 131 ft (40 m) on 48V at 5 W/m Ø 7.87 in (200 mm)
UT-N1615-3D 16×15mm Mono / CCT 3.7 W/ft (12 W/m) 176 lm/ft (576 lm/m) 48 lm/W 16 ft (5 m) Ø 9.84 in (250 mm)
UT-N1616-3D 16×16mm Mono / CCT / RGB / RGBW / SPI / DMX 3.0 W/ft (10 W/m) 177 lm/ft (580 lm/m) 58 lm/W · HE to 141 lm/W 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 9.84 in (250 mm)
UT-N2020-3D 20×20mm Mono / CCT / RGB / RGBW 3.7 W/ft (12 W/m) 194 lm/ft (636 lm/m) 53 lm/W · HE to 88 lm/W 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 11.8 in (300 mm)
UT-N2323-3D 23×23mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 190 lm/ft (624 lm/m) 52 lm/W · HE to 88 lm/W 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 11.8 in (300 mm)

The same minimum bend diameter applies in both directions. Every 3D profile also comes as a cut-anywhere (FC) version with no fixed cut mark.

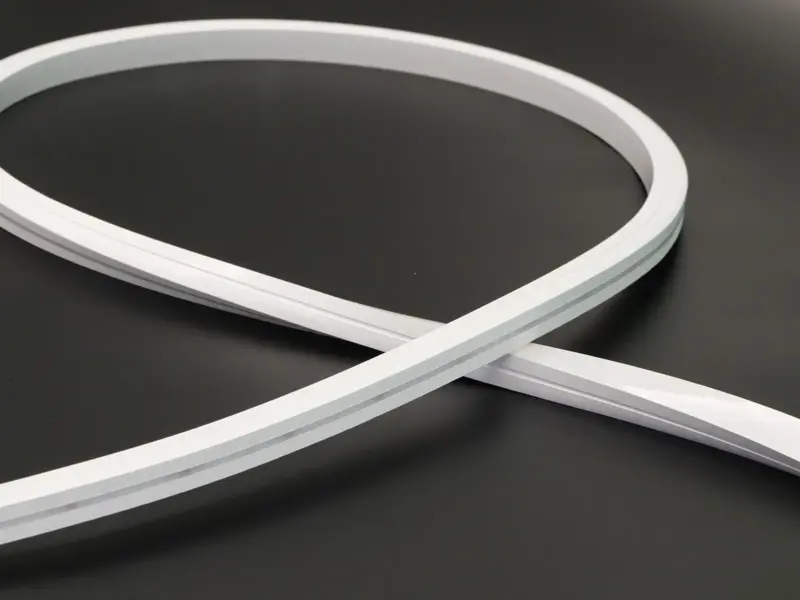

White 3D bend LED neon flex looped freely against a black background
How it bends
3D neon cross-section: board set on a diagonal, light leaves the top Bends up, down, left and right
  • Bends up and down and left and right in one run.
  • Never twist it along its length.
All bend types and cable exits

Mini & Nano Neon Flex

Profiles from 3×6 mm to 5×8 mm that bend edgewise to a 30 mm (1.18 in) diameter, plus Ø8 and Ø12 mm round nano neon: small enough for cabinet, shelf-edge, display and model work.

Model Cross-section Color options Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Cut increment Min bend Ø
UT-N0306-SB 3×6mm Mono 1.8 W/ft (6 W/m) 91 lm/ft (300 lm/m) 50 lm/W 0.98 in (25 mm) Ø 1.18 in (30 mm)
UT-N0406-SB 4×6mm Mono 1.8 W/ft (6 W/m) 91 lm/ft (300 lm/m) 50 lm/W 0.98 in (25 mm) Ø 1.18 in (30 mm)
UT-N0408-SB 4×8mm Mono 1.8 W/ft (6 W/m) 86 lm/ft (282 lm/m) 47 lm/W 1.97 in (50 mm) Ø 1.18 in (30 mm)
UT-N0408-SB-FC 4×8mm Mono 2.2 W/ft (7.2 W/m) 68–77 lm/ft (223–252 lm/m) 31–35 lm/W 0.28 in (7.14 mm) —
UT-N0410-SB 4×10mm Mono 2.4 W/ft (8 W/m) 66 lm/ft (216 lm/m) 27 lm/W 1.41 in (35.7 mm) Ø 1.18 in (30 mm)
UT-N0508-SB 5×8mm Mono 3.0 W/ft (10 W/m) 131 lm/ft (430 lm/m) 43 lm/W 1.97 in (50 mm) Ø 1.18 in (30 mm)
UT-N0408-S-MC 4×8mm Mono 2.9 W/ft (9.6 W/m) — — 0.28 in (7.14 mm) On request
UT-NN08 Ø8mm nano Mono 2.4 W/ft (8 W/m) — — 1.97 in (50 mm) Ø 3.15 in (80 mm)
UT-NN12 Ø12mm nano Mono / CCT 2.7 W/ft (9 W/m) — — 1.97 in (50 mm) Ø 3.94 in (100 mm)
UT-N1616-S-MC 16×16mm Mono / CCT 4.4 W/ft (14.4 W/m) — — 1.97 in (50 mm) On request

Micro side-bend profiles are mono only (white, or red, green, blue, yellow, orange and pink) on 24V with a 16 ft (5 m) run per feed. UT-N0408-S-MC cuts every 0.28 in (7.14 mm) for detail work.

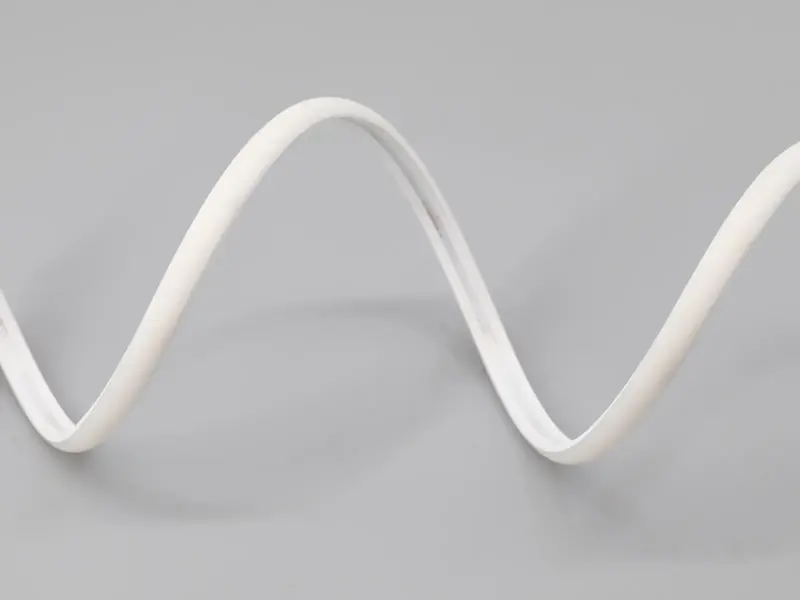

Slim 8 mm nano LED neon flex curved into a tight arch
How it bends
Mini side bend neon cross-section: narrow body, board on edge, light leaves the top Bends left and right
  • The -SB profiles bend left and right.
  • The Ø8 and Ø12 mm round nano neon (UT-NN08, UT-NN12) bends in any direction.
All bend types and cable exits

Recessed Neon Flex

A flanged silicone profile that sits flush in a routed groove or drywall channel, so the line reads as part of the surface: coves, ceilings, millwork and stair edges. Top-emitting, side-emitting and 3D versions from 6×6 to 16×16 mm.

Model Cross-section Color options Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Max run Min bend Ø
UT-N0606-TB-R 6×6mm Mono 1.8 W/ft (6 W/m) 121 lm/ft (396 lm/m) 66 lm/W 16 ft (5 m) Ø 7.87 in (200 mm)
UT-N1212-TB-R 12×12mm Mono / CCT / RGB 3.0 W/ft (10 W/m) 216 lm/ft (710 lm/m) 71 lm/W 16 ft (5 m) · 62 ft (19 m) on 24V CC at 5 W/m Ø 5.91 in (150 mm)
UT-N1616-TB-R 16×16mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 212 lm/ft (696 lm/m) 58 lm/W · HE to 135 lm/W 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-N1616-3D-R 16×16mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 212 lm/ft (696 lm/m) 58 lm/W · HE to 135 lm/W 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 9.84 in (250 mm)
UT-N0612-SB-R 6×12mm Mono / CCT / RGB 3.0 W/ft (10 W/m) 91 lm/ft (300 lm/m) 30 lm/W 16 ft (5 m) Ø 3.94 in (100 mm)
UT-N1220-SB-R 12×20mm Mono / CCT / RGB / RGBW 4.6 W/ft (15 W/m) 187 lm/ft (615 lm/m) 41 lm/W 16 ft (5 m) Ø 5.91 in (150 mm)
UT-N0817-SB-R 8×17mm Mono / CCT / RGB / RGBW / SPI 3.0 W/ft (10 W/m) 125 lm/ft (410 lm/m) 41 lm/W · HE to 52 lm/W 16 ft (5 m) · 62 ft (19 m) on 24V CC at 5 W/m Ø 5.91 in (150 mm)

Matching aluminum and drywall channels are quoted with the profile. Groove width and depth for each profile come with the submittal.

Lit recessed LED neon flex with a flanged silicone edge bent into an S curve
How it bends
Recessed neon cross-section: a lip that sits on the surface and barbs that grip the groove, light leaves the top Bends up and down
  • Bends like its base type: -TB-R up and down, -SB-R left and right, -3D-R both ways.
  • Press it into a routed groove; the flange sits flush.
All bend types and cable exits

Dome-Top Neon Flex

A rounded dome face on a side-bending body gives a 180° glow that reads like glass neon from the front and the side, for script signs, logos and freestanding letters. Five profiles from 5×12 to 12×25 mm.

Model Cross-section Color options Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Max run Min bend Ø
UT-N0512-DM 5×12mm Mono 2.4 W/ft (8 W/m) 124 lm/ft (408 lm/m) 51 lm/W 16 ft (5 m) Ø 1.97 in (50 mm)
UT-N0816-DM 8×16mm Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 105 lm/ft (344 lm/m) 43 lm/W · HE to 52 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 3.94 in (100 mm)
UT-N0817-DM 8×17mm Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 105 lm/ft (344 lm/m) 43 lm/W · HE to 52 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 3.94 in (100 mm)
UT-N1023-DM 10×23mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 132 lm/ft (432 lm/m) 36 lm/W · HE to 43 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 5.91 in (150 mm)
UT-N1225-DM 12×25mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 110 lm/ft (360 lm/m) 30 lm/W · HE to 36 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 5.91 in (150 mm)

The dome spreads light over 180°, so the line reads from the front and both sides.

Lit dome-top LED neon flex bent edgewise into an S curve with its end cap
How it bends
Dome-top neon cross-section: board on edge, light leaves through the round dome head Bends left and right
  • Bends left and right, edgewise, like side bend neon. Not up and down.
All bend types and cable exits

270° Neon Flex

A round profile with a flat mounting back that emits over 270°, for lines seen from below and both sides, such as pendants, canopy edges and handrails. Ø15, Ø20 and Ø25 mm.

Model Cross-section Color options Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Max run Min bend Ø
UT-ND15-270 Ø15mm Mono / CCT / RGB / SPI 2.4 W/ft (8 W/m) 166 lm/ft (544 lm/m) 68 lm/W · HE to 82 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-ND20-270 Ø20mm Mono / CCT / RGB / RGBW 2.4 W/ft (8 W/m) 127 lm/ft (416 lm/m) 52 lm/W · HE to 62 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-ND25-270 Ø25mm Mono / CCT / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 293 lm/ft (960 lm/m) 64 lm/W · HE to 77 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)

Mounts on clips or a channel at the flat back, so the line stays oriented while it bends.

Lit 270 degree round LED neon flex curving across a pale gray surface
How it bends
270 degree neon cross-section: round body with a flat back, light leaves everywhere except the back Bends up and down
  • Bends up and down, with the flat back on the mounting surface. Not left and right.
All bend types and cable exits

360° Round Neon Flex

A fully round profile that glows in every direction with no visible back, for pendants, wrapped elements and freestanding lines. Seven diameters from Ø13 to Ø40 mm.

Model Cross-section Color options Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Max run Min bend Ø
UT-ND13-360 Ø13mm Mono 2.4 W/ft (8 W/m) 161 lm/ft (528 lm/m) 66 lm/W 16 ft (5 m) Ø 7.87 in (200 mm)
UT-ND18-360 Ø18mm Mono 3.4 W/ft (11 W/m) 225–238 lm/ft (737–781 lm/m) 67–71 lm/W 16 ft (5 m) Ø 7.87 in (200 mm)
UT-ND20-360 Ø20mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 154 lm/ft (504 lm/m) 42 lm/W · HE to 50 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-ND22-360 Ø22mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 154 lm/ft (504 lm/m) 42 lm/W · HE to 50 lm/W 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm)
UT-ND25-360 Ø25mm Mono / CCT / RGB / RGBW / SPI / DMX 3.0 W/ft (10 W/m) 195 lm/ft (640 lm/m) 64 lm/W · HE to 77 lm/W 16 ft (5 m) Ø 7.87 in (200 mm)
UT-ND30-360 Ø30mm Mono / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 165–192 lm/ft (540–630 lm/m) 36–42 lm/W 16 ft (5 m) Ø 7.87 in (200 mm)
UT-ND40-360 Ø40mm Mono / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 114–133 lm/ft (375–435 lm/m) 25–29 lm/W 16 ft (5 m) Ø 7.87 in (200 mm)

Larger diameters spread the same light over a wider tube: Ø30 and Ø40 mm give the softest line at the lowest lumens per watt.

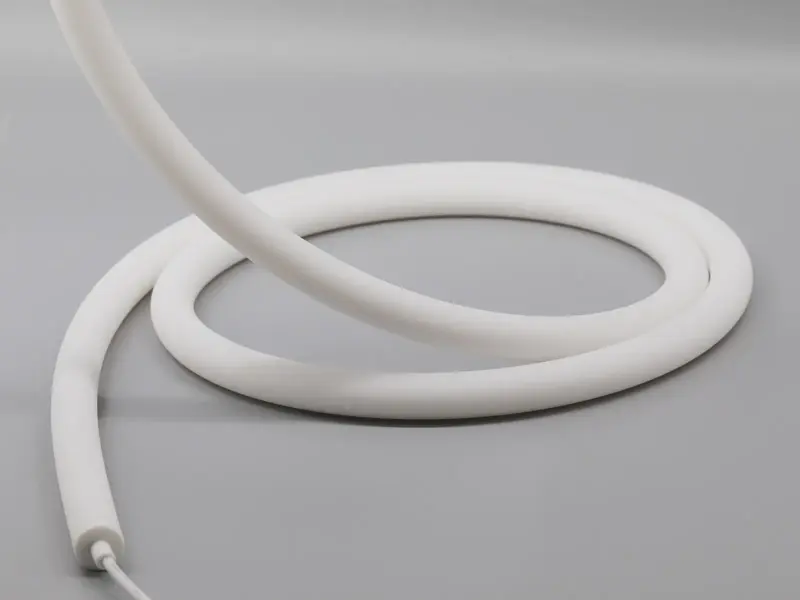

Round 360 degree LED neon flex tube coiled on a white surface
How it bends
360 degree round neon cross-section: light leaves all the way round Bends in any direction
  • Bends in any direction: no back, light all the way round.
  • Never twist it along its length.
All bend types and cable exits

COB Neon Flex

A COB strip inside a slim silicone sleeve gives a dot-free line from 3×5 mm and Ø5 mm, fixed with 3M tape: the low-cost way to get a neon look in shelving, displays and furniture.

Model Cross-section Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Cut increment Min bend Ø
UT-ND05-COB Ø5mm 1.5 W/ft (5 W/m) 91–122 lm/ft (300–400 lm/m) 60–80 lm/W 0.98 in (25 mm) Ø 1.97 in (50 mm)
UT-ND07-COB Ø7mm 2.1 W/ft (7 W/m) 149–171 lm/ft (490–560 lm/m) 70–80 lm/W 1.97 in (50 mm) Ø 1.97 in (50 mm)
UT-N0305-COB 3×5mm 1.5 W/ft (5 W/m) 91–122 lm/ft (300–400 lm/m) 60–80 lm/W 0.98 in (25 mm) Ø 1.97 in (50 mm)
UT-N0407-COB 4×7mm 2.1 W/ft (7 W/m) 149–171 lm/ft (490–560 lm/m) 70–80 lm/W 1.97 in (50 mm) Ø 1.97 in (50 mm)
UT-N0408-SB-COB 4×8mm 2.1 W/ft (7 W/m) 128–171 lm/ft (420–560 lm/m) 60–80 lm/W 1.97 in (50 mm) Ø 1.97 in (50 mm)
UT-N0410-COB 4×10mm 2.1 W/ft (7 W/m) 149–171 lm/ft (490–560 lm/m) 70–80 lm/W 1.97 in (50 mm) Ø 1.97 in (50 mm)
UT-N0410-COB-65 4×10mm 2.7 W/ft (9 W/m) 247–329 lm/ft (810–1080 lm/m) 90–120 lm/W 1.97 in (50 mm) Ø 1.97 in (50 mm)
UT-N0410-COB-SO 4×10mm 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W 1.97 in (50 mm) Ø 1.97 in (50 mm)
UT-N0412-COB 4×12mm 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W 1.97 in (50 mm) Ø 1.97 in (50 mm)
UT-N0510-COB 5×10mm 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W 1.97 in (50 mm) Ø 1.97 in (50 mm)
UT-N0710-COB 7×10mm 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W 1.97 in (50 mm) Ø 1.97 in (50 mm)
UT-N0711-COB 7×11mm 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W 1.97 in (50 mm) Ø 1.97 in (50 mm)
UT-N0712-COB 7×12mm 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W 1.97 in (50 mm) Ø 1.97 in (50 mm)

COB neon is mono or tunable white on 24V, 16 ft (5 m) per feed. Output spans 2700K to 6000K. UT-N0410-COB-65 has an open dome for more light at IP65; UT-N0410-COB-SO is solid-filled.

Lit slim COB LED neon flex in warm white bent into a gentle S curve
How it bends
COB neon cross-section: a round diffuser body over a half-dome COB line on a flat base Bends up and down
  • Bends up and down. Not sideways.
  • UT-N0408-SB-COB is the side bend version: left and right.
All bend types and cable exits

Anti-Glare Neon Flex

A honeycomb anti-glare face keeps the line soft when it is seen straight on at eye level: bars, cinemas, corridors and lounges. Four profiles, including a 16×16 mm 3D version with SPI and DMX.

Model Cross-section Color options Power W/ft (W/m) Output lm/ft (lm/m) Efficacy Min bend Ø
UT-N1212-AG 12×12mm Mono 3.0 W/ft (10 W/m) 189–223 lm/ft (620–730 lm/m) 62–73 lm/W Ø 5.91 in (150 mm)
UT-N1610-AG 16×10mm Mono 3.0 W/ft (10 W/m) 189–223 lm/ft (620–730 lm/m) 62–73 lm/W Ø 7.87 in (200 mm)
UT-N2010-AG 20×10mm Mono 3.0 W/ft (10 W/m) 189–223 lm/ft (620–730 lm/m) 62–73 lm/W Ø 7.87 in (200 mm)
UT-N1616-3D-AG 16×16mm Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 249 lm/ft (816 lm/m) 68 lm/W · HE to 82 lm/W Ø 9.84 in (250 mm)

UT-N1212-AG, UT-N1610-AG and UT-N2010-AG are mono white 2700–6000K; the silicone body color can be customized.

Anti-glare honeycomb textured LED neon flex in black and white shells
How it bends
Anti-glare neon cross-section: wide body, flared toothed core and an anti-glare film on the face Bends up and down
  • Bends up and down. Not sideways.
  • UT-N1616-3D-AG bends both ways.
All bend types and cable exits

Underwater & In-Ground Neon Flex

IP68 polyurethane neon for continuous immersion to 3 m in pools, fountains and seaside work (anti-chlorine, salt-water resistant), and walkable in-ground profiles for plazas, paths and landscape lines.

Model Cross-section Rating Color options Power W/ft (W/m) Output lm/ft (lm/m) Max run
UT-N0612-SB-PU 6×12mm IP68 · 3 m submersion · IK10 Mono / CCT / RGB 1.5 W/ft (5 W/m) 64 lm/ft (210 lm/m) 16 ft (5 m)
UT-N1010-TB-PU 10×10mm IP68 · 3 m submersion · IK10 Mono / CCT / RGB 3.0 W/ft (10 W/m) 223 lm/ft (730 lm/m) 16 ft (5 m) · 62 ft (19 m) on 24V CC at 5 W/m
UT-N1018-SB-PU 10×18mm IP68 · 3 m submersion · IK10 Mono / CCT / RGB / RGBW 3.0 W/ft (10 W/m) 140 lm/ft (460 lm/m) 16 ft (5 m) · 85 ft (26 m) on 24V CC at 5 W/m
UT-N1220-SB-PU 12×20mm IP68 · 3 m submersion · IK10 Mono / CCT / RGB / RGBW 3.0 W/ft (10 W/m) 140 lm/ft (460 lm/m) 16 ft (5 m) · 85 ft (26 m) on 24V CC at 5 W/m
UT-N1615-TB-PU 16×15mm IP68 · 3 m submersion · IK10 Mono / CCT / RGB / RGBW 4.6 W/ft (15 W/m) 320 lm/ft (1050 lm/m) 16 ft (5 m) · 85 ft (26 m) on 24V CC at 5 W/m
UT-N4365-IG 43×65mm IP68 · IK10 · walkable Mono / RGB / RGBW / DMX 3.7 W/ft (12 W/m) 102 lm/ft (336 lm/m) 33 ft (10 m) · DMX version 16 ft (5 m)
UT-N1616-3D-IG 16×16mm IP68 · IK10 · walkable Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 176 lm/ft (576 lm/m) 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m
UT-N1616-68 16×16mm IP68 · IK10 Mono / RGBW 4.3 W/ft (14 W/m) — 16 ft (5 m)

All underwater and in-ground profiles are IK10. In-ground profiles are walkable.

Sealed IP68 impact-rated LED neon flex tube bent into a smooth loop
How it bends
Underwater neon cross-section: solid sealed PU body, light leaves the top Bends up, down, left and right
  • Read the code: -SB bends left and right, -TB up and down, -3D both ways.
  • UT-N4365-IG in-ground bends left and right only.
All bend types and cable exits

Addressable Neon Flex (SPI & DMX)

Pixel control inside the neon profile: chasing, color scenes and animated signs on the same dot-free line. SPI for signs and short runs, DMX512 for architectural systems. See the full pixel control lineup.

Model Cross-section Color options Pixels/m Power W/ft (W/m) Cut increment
UT-N1010-SPI 10×10mm SPI · RGB / white 20 px/m 3.7 W/ft (12 W/m) 1.97 in (50 mm)
UT-N1616-SPI 16×16mm SPI · RGB / RGBW / white 16 px/m RGB/RGBW · 20 px/m white 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 2.46 in (62.5 mm) RGB/RGBW · 1.97 in (50 mm) white
UT-N1616-DMX 16×16mm DMX512 · RGB / RGBW / white 8 px/m 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 4.92 in (125 mm)
UT-N1616-3D-SPI 16×16mm SPI · RGB / RGBW / white 20 px/m RGB/white · 16 px/m RGBW 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 1.97 in (50 mm) RGB/white · 2.46 in (62.5 mm) RGBW
UT-N1616-3D-DMX 16×16mm DMX512 · RGB / RGBW / white 8 px/m RGB/RGBW · 10 px/m white 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 4.92 in (125 mm) RGB/RGBW · 3.94 in (100 mm) white
UT-N1020-SB-SPI 10×20mm SPI · RGB / RGBW / white 16 px/m RGB/RGBW · 20 px/m white 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 2.46 in (62.5 mm) RGB/RGBW · 1.97 in (50 mm) white
UT-N1020-SB-DMX 10×20mm DMX512 · RGB / RGBW / white 8 px/m RGB/RGBW · 10 px/m white 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 4.92 in (125 mm) RGB/RGBW · 3.94 in (100 mm) white
UT-ND20-360-SPI Ø20mm SPI · RGB / white · DMX512 RGBW 20 px/m SPI · 12×2 px/m DMX RGBW 3.7 W/ft (12 W/m) RGB · 7.3 W/ft (24 W/m) RGBW 1.97 in (50 mm) SPI · 4.92 in (125 mm) DMX

SPI runs up to 66 ft (20 m) of data cable from controller to strip; DMX512 up to 164 ft (50 m). The tunable, RGB and RGBW profiles in the other families also come in SPI or DMX versions.

Addressable LED neon flex glowing a smooth color gradient on black
How it bends
Addressable neon cross-section: flat board, light leaves the top face Bends up and down
  • Read the code: -SPI and -DMX top bend up and down, -SB left and right, -3D both ways, UT-ND20-360-SPI any direction.
All bend types and cable exits

Black, Color-Body & Custom Neon

A black or colored silicone body lets the unlit line disappear against dark ceilings and painted surfaces, or shows color by day. Plus custom profiles: a 90° angled-beam neon and a cable-hung profile for suspended lines.

Model Shell · bend Color options Power W/ft (W/m) Output lm/ft (lm/m) Efficacy
UT-N1616-CM 3D · black body · 120° Mono / CCT / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 96 lm/ft (315 lm/m) 21 lm/W · HE to 27 lm/W
UT-N1616-CM-OR 3D · orange body · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 124 lm/ft (408 lm/m) 34 lm/W · HE to 95 lm/W
UT-N2323-CM 3D · black body · 120° Mono / CCT / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 178 lm/ft (585 lm/m) 39 lm/W · HE to 66 lm/W
UT-N0512-DM-CB Side bend · color body · 180° Mono 2.4 W/ft (8 W/m) 10–27 lm/ft (32–88 lm/m) 4–11 lm/W
UT-N1616-TB-90 Top bend · 90° angled beam Mono / CCT / RGB / RGBW / SPI / DMX 3.0 W/ft (10 W/m) 177 lm/ft (580 lm/m) 58 lm/W
UT-N1513-SUS Top bend · cable-hung · 120° Mono / CCT / RGB / SPI 3.0 W/ft (10 W/m) 256 lm/ft (840 lm/m) 84 lm/W

A black or colored body absorbs part of the light, so output is lower than the white profile; each version has its own figures above. UT-N0512-DM-CB comes in red, green, blue, pink or a custom body color.

LED neon flex in white, black and orange silicone bodies with matching end caps
How it bends
Black-body neon cross-section: black silicone body, light leaves the top face Bends up, down, left and right
  • The color-body 3D profiles bend both ways.
  • UT-N0512-DM-CB bends left and right; UT-N1616-TB-90 and UT-N1513-SUS bend up and down.
All bend types and cable exits

Where the light leaves

The drawings show where the light comes out; sizes for every model are in the tables above.

Top bend neon cross-section: flat board at the bottom, light leaves through the top face
Top bend: flat board, light leaves the top
Side bend neon cross-section: board standing on edge, light leaves through the narrow top face
Side bend: board on edge, light leaves the top
3D neon cross-section: board set on a diagonal inside a square profile, light leaves the top
3D bend: diagonal board, light leaves the top
360 degree round neon cross-section: light leaves all the way round
360° round: light all the way round

How each type bends

Bend a profile only the way its board allows. The minimum bend diameter for every model is in its table row above.

Correct: top bend neon bending up and down
Top bend: bends up and down
Wrong: top bend neon bent sideways
Top bend: not sideways
Correct: side bend neon bending left and right
Side bend: bends left and right
Wrong: side bend neon bent up and down
Side bend: not up and down
Correct: 3D neon rising over a hump and turning sideways in one run
3D bend: up, down, left and right
Wrong: neon twisted along its length
Every neon: never twist

Cable exits

Each end cap can take its cable straight out, to the left, to the right or out of the bottom. Name the exit for each end on your order.

Neon run bent into a U on the floor, with an end cap at each end and the four cable exits: straight out, left, right and bottom out
Horizontal bending, end caps at both ends
Neon run rising over an arch, with an end cap at each end and the four cable exits: straight out, left, right and bottom out
Vertical bending, end caps at both ends

Drawings are illustrative and not to scale.

Specifications

Master spec table

Every model across all thirteen families. Output and efficacy are the white Ra≥90 version on 24V; full photometric files and IES data ship with your quote.

Specs reviewed

How to read our model numbers: UT-N{width×height in mm}-{type}, UT-ND{diameter} for round. Types: TB top bend · SB side bend · 3D · DM dome-top · 270 / 360 round · COB · AG anti-glare · SPI / DMX addressable · CM black body. Suffixes: R recessed · PU polyurethane underwater · IG in-ground · ECO economy · 180 / 90 beam angle · CB color body · SUS cable-hung · S-MC side-emitting mini-cut · 68 IP68/IK10; HE = high- or ultra-brightness build. UT-NN nano round · UT-CSP chip-scale-package profiles · LR long-run, 131 ft (40 m) from one end on 24V · FC cuttable every 6–7 mm.

Tap a row for full specs.

Model Cross-section Bend · beam Color options Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI Voltage Cut increment Max run Min bend Ø IP rating
UT-N0606-TB 6×6mm Top bend · 120° Mono 1.8 W/ft (6 W/m) 126 lm/ft (414 lm/m) 69 lm/W Ra≥90 24V 0.98 in (25 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0808-TB 8×8mm Top bend · 120° Mono 1.8 W/ft (6 W/m) 110 lm/ft (360 lm/m) 60 lm/W Ra≥90 24V 0.98 in (25 mm) 16 ft (5 m) Ø 3.94 in (100 mm) IP65 / IP67
UT-N1010-TB 10×10mm Top bend · 120° Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 141 lm/ft (464 lm/m) 58 lm/W · HE to 85 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 3.94 in (100 mm) IP65 / IP67
UT-N1010-TB-180 10×10mm Top bend · 180° dome · 180° Mono / RGB / SPI 2.4 W/ft (8 W/m) 180 lm/ft (592 lm/m) 74 lm/W · HE to 85 lm/W Ra≥90 24V · 48V 1.41 in (35.7 mm) @ 24V · 2.81 in (71.4 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 3.94 in (100 mm) IP65 / IP67
UT-N1010-TB-FC 10×10mm Top bend · cuttable Mono 3.0 W/ft (10 W/m) 253–283 lm/ft (830–930 lm/m) 83–93 lm/W Ra≥90 24V 0.25 in (6.25 mm) 16 ft (5 m) — IP67
UT-N1212-TB-ECO 12×12mm Top bend · economy · 120° Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 168 lm/ft (552 lm/m) 69 lm/W · HE to 83 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 5.91 in (150 mm) IP65 / IP67
UT-N1212-TB 12×12mm Top bend · 120° Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 163 lm/ft (536 lm/m) 67 lm/W · HE to 80 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 5.91 in (150 mm) IP65 / IP67
UT-N1615-TB 16×15mm Top bend · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 219 lm/ft (720 lm/m) 60 lm/W · HE to 78 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-N1616-TB 16×16mm Top bend · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 300 lm/ft (984 lm/m) 82 lm/W · HE to 106 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-N1616-TB-LR 16×16mm Top bend · 120° Mono 2.9 W/ft (9.6 W/m) 167–184 lm/ft (547–605 lm/m) 57–63 lm/W Ra≥90 24V 1.97 in (50 mm) 131 ft (40 m) single feed Ø 7.87 in (200 mm) IP67
UT-N1616-TB-FC 16×16mm Top bend · cuttable Mono 4.6 W/ft (15 W/m) 288–320 lm/ft (945–1,050 lm/m) 63–70 lm/W Ra≥90 24V 0.28 in (7.14 mm) 16 ft (5 m) — IP67
UT-N2016-TB 20×16mm Top bend · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 238 lm/ft (780 lm/m) 65 lm/W · HE to 78 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-N2020-TB 20×20mm Top bend · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 194 lm/ft (636 lm/m) 53 lm/W · HE to 64 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 9.84 in (250 mm) IP65 / IP67
UT-N3020-TB 30×20mm Top bend · large profile · 120° Mono / CCT / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 251 lm/ft (825 lm/m) 55 lm/W · HE to 66 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 11.8 in (300 mm) IP65 / IP67
UT-N5025-TB 50×25mm Top bend · large profile · 120° Mono / CCT / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 302 lm/ft (990 lm/m) 66 lm/W · HE to 79 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 19.7 in (500 mm) IP65 / IP67
UT-N7030-TB 70×30mm Top bend · large profile · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 216 lm/ft (708 lm/m) 59 lm/W · HE to 71 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 19.7 in (500 mm) IP65 / IP67
UT-N2525-TB 25×25mm Top bend · large profile Mono / RGB / RGBW (DMX512) 4.9 W/ft (16 W/m) — — — 24V 1.97 in (50 mm) On request from Ø 14.17 in (360 mm) IP67
UT-N3017-TB 30×17mm Top bend · large profile Mono / RGBW (DMX512) 6.1 W/ft (20 W/m) — — — 24V 1.97 in (50 mm) On request from Ø 15.75 in (400 mm) IP67
UT-CSP-320-NC 9.8×9.8mm Top bend Mono 3.0 W/ft (10 W/m) — — — 24V 1.97 in (50 mm) — — IP66
UT-CSP-280-N06 10×6mm Top bend Mono 2.9 W/ft (9.6 W/m) — — — 24V 1.97 in (50 mm) — — IP66
UT-CSP-320-N10 10×10mm Top bend Mono 3.0 W/ft (10 W/m) — — — 24V 1.97 in (50 mm) — — IP67
UT-CSP-540-N12-RGB 12×8mm — RGB 4.6 W/ft (15 W/m) — — — 24V 1.31 in (33.3 mm) — — IP66
UT-N0612-SB 6×12mm Side bend · 120° Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 88 lm/ft (288 lm/m) 36 lm/W · HE to 43 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 1.97 in (50 mm) IP65 / IP67
UT-N1212-SB 12×12mm Side bend Mono / CCT / RGB 3.7 W/ft (12 W/m) — — — 24V constant current 3.94 in (100 mm) 62 ft (19 m) CC Ø 9.45 in (240 mm) IP67
UT-N1010-SB 10×10mm Side bend · 120° Mono 2.4 W/ft (8 W/m) 110 lm/ft (360 lm/m) 45 lm/W Ra≥90 24V 1.41 in (35.7 mm) 16 ft (5 m) · 66 ft (20 m) on 24V CC at 5 W/m Ø 3.94 in (100 mm) IP65 / IP67
UT-N1018-SB 10×18mm Side bend · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 102 lm/ft (336 lm/m) 28 lm/W · HE to 34 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-N1020-SB 10×20mm Side bend · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 102 lm/ft (336 lm/m) 28 lm/W · HE to 34 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-N1220-SB 12×20mm Side bend · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 102 lm/ft (336 lm/m) 28 lm/W · HE to 34 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-N1220-SB-LR 12×20mm Side bend · 120° Mono 2.9 W/ft (9.6 W/m) 76–82 lm/ft (250–270 lm/m) 26–28 lm/W Ra≥90 24V 1.97 in (50 mm) 131 ft (40 m) single feed Ø 7.87 in (200 mm) IP67
UT-N1220-SB-FC 12×20mm Side bend · cuttable Mono 4.6 W/ft (15 W/m) 169–187 lm/ft (555–615 lm/m) 37–41 lm/W Ra≥90 24V 0.28 in (7.14 mm) 16 ft (5 m) — IP67
UT-N1615-SB 16×15mm Side bend · 180° Mono / CCT / RGB / RGBW / SPI 3.7 W/ft (12 W/m) 238 lm/ft (780 lm/m) 65 lm/W · HE to 78 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-N1616-SB 16×16mm Side bend · 120° Mono / CCT / RGB / RGBW / SPI 3.7 W/ft (12 W/m) 238 lm/ft (780 lm/m) 65 lm/W · HE to 78 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-N1616-SB-LR 16×16mm Side bend · 120° Mono 2.9 W/ft (9.6 W/m) 122–143 lm/ft (399–470 lm/m) 42–49 lm/W Ra≥90 24V 1.97 in (50 mm) 131 ft (40 m) single feed Ø 7.87 in (200 mm) IP67
UT-N2020-SB 20×20mm Side bend · 120° Mono / CCT / RGB / RGBW / SPI 3.7 W/ft (12 W/m) 157 lm/ft (516 lm/m) 43 lm/W · HE to 52 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 9.84 in (250 mm) IP65 / IP67
UT-N3032-SB 30×32mm Side bend · large profile · 120° Mono / CCT / RGB / RGBW / SPI 3.0 W/ft (10 W/m) 155 lm/ft (510 lm/m) 51 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) · 89 ft (27 m) on 24V CC at 5 W/m Ø 11.8 in (300 mm) IP65 / IP67
UT-N0808-3D 8×8mm 3D (vertical + horizontal) · 120° Mono 1.8 W/ft (6 W/m) 86 lm/ft (282 lm/m) 47 lm/W Ra≥90 24V 0.98 in (25 mm) 16 ft (5 m) Ø 5.91 in (150 mm) IP65 / IP67
UT-N1010-3D 10×10mm 3D (vertical + horizontal) · 120° Mono 2.1 W/ft (7 W/m) 139 lm/ft (455 lm/m) 65 lm/W · HE to 81 lm/W Ra≥90 24V · 48V 1.41 in (35.7 mm) @ 24V · 2.81 in (71.4 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V at 5 W/m Ø 5.91 in (150 mm) IP65 / IP67
UT-N1212-3D 12×12mm 3D (vertical + horizontal) · 120° Mono 2.1 W/ft (7 W/m) 132 lm/ft (434 lm/m) 62 lm/W · HE to 75 lm/W Ra≥90 24V · 48V 1.41 in (35.7 mm) @ 24V · 2.81 in (71.4 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-N1615-3D 16×15mm 3D (vertical + horizontal) · 120° Mono / CCT 3.7 W/ft (12 W/m) 176 lm/ft (576 lm/m) 48 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 9.84 in (250 mm) IP65 / IP67
UT-N1616-3D 16×16mm 3D (vertical + horizontal) · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.0 W/ft (10 W/m) 177 lm/ft (580 lm/m) 58 lm/W · HE to 141 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 9.84 in (250 mm) IP65 / IP67
UT-N2020-3D 20×20mm 3D (vertical + horizontal) · 120° Mono / CCT / RGB / RGBW 3.7 W/ft (12 W/m) 194 lm/ft (636 lm/m) 53 lm/W · HE to 88 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 11.8 in (300 mm) IP65 / IP67
UT-N2323-3D 23×23mm 3D (vertical + horizontal) · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 190 lm/ft (624 lm/m) 52 lm/W · HE to 88 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 11.8 in (300 mm) IP65 / IP67
UT-N0306-SB 3×6mm Side bend · micro · 120° Mono 1.8 W/ft (6 W/m) 91 lm/ft (300 lm/m) 50 lm/W Ra≥90 24V 0.98 in (25 mm) 16 ft (5 m) Ø 1.18 in (30 mm) IP65 / IP67
UT-N0406-SB 4×6mm Side bend · micro · 120° Mono 1.8 W/ft (6 W/m) 91 lm/ft (300 lm/m) 50 lm/W Ra≥90 24V 0.98 in (25 mm) 16 ft (5 m) Ø 1.18 in (30 mm) IP65 / IP67
UT-N0408-SB 4×8mm Side bend · micro · 120° Mono 1.8 W/ft (6 W/m) 86 lm/ft (282 lm/m) 47 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.18 in (30 mm) IP65 / IP67
UT-N0408-SB-FC 4×8mm Side bend · micro · cuttable Mono 2.2 W/ft (7.2 W/m) 68–77 lm/ft (223–252 lm/m) 31–35 lm/W Ra≥90 24V 0.28 in (7.14 mm) 16 ft (5 m) — IP65
UT-N0410-SB 4×10mm Side bend · micro · 120° Mono 2.4 W/ft (8 W/m) 66 lm/ft (216 lm/m) 27 lm/W Ra≥90 24V 1.41 in (35.7 mm) 16 ft (5 m) Ø 1.18 in (30 mm) IP65 / IP67
UT-N0508-SB 5×8mm Side bend · micro · 120° Mono 3.0 W/ft (10 W/m) 131 lm/ft (430 lm/m) 43 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.18 in (30 mm) IP65 / IP67
UT-N0408-S-MC 4×8mm Side emitting · mini-cut Mono 2.9 W/ft (9.6 W/m) — — — 24V 0.28 in (7.14 mm) 16 ft (5 m) On request IP66
UT-NN08 Ø8mm nano Top bend Mono 2.4 W/ft (8 W/m) — — — 24V 1.97 in (50 mm) 16 ft (5 m) Ø 3.15 in (80 mm) IP67
UT-NN12 Ø12mm nano Top bend Mono / CCT 2.7 W/ft (9 W/m) — — — 24V 1.97 in (50 mm) 16 ft (5 m) Ø 3.94 in (100 mm) IP67
UT-N1616-S-MC 16×16mm Side emitting · mini-cut · silicone Mono / CCT 4.4 W/ft (14.4 W/m) — — — 24V 1.97 in (50 mm) 16 ft (5 m) On request On request
UT-N0606-TB-R 6×6mm Top bend · recessed · 120° Mono 1.8 W/ft (6 W/m) 121 lm/ft (396 lm/m) 66 lm/W Ra≥90 24V 0.98 in (25 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-N1212-TB-R 12×12mm Top bend · recessed · 120° Mono / CCT / RGB 3.0 W/ft (10 W/m) 216 lm/ft (710 lm/m) 71 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) · 62 ft (19 m) on 24V CC at 5 W/m Ø 5.91 in (150 mm) IP65 / IP67
UT-N1616-TB-R 16×16mm Top bend · recessed · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 212 lm/ft (696 lm/m) 58 lm/W · HE to 135 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-N1616-3D-R 16×16mm 3D · recessed · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 212 lm/ft (696 lm/m) 58 lm/W · HE to 135 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 9.84 in (250 mm) IP65 / IP67
UT-N0612-SB-R 6×12mm Side bend · recessed · 120° Mono / CCT / RGB 3.0 W/ft (10 W/m) 91 lm/ft (300 lm/m) 30 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 3.94 in (100 mm) IP65 / IP67
UT-N1220-SB-R 12×20mm Side bend · recessed · 120° Mono / CCT / RGB / RGBW 4.6 W/ft (15 W/m) 187 lm/ft (615 lm/m) 41 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 5.91 in (150 mm) IP65 / IP67
UT-N0817-SB-R 8×17mm Side bend · recessed · 180° Mono / CCT / RGB / RGBW / SPI 3.0 W/ft (10 W/m) 125 lm/ft (410 lm/m) 41 lm/W · HE to 52 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) · 62 ft (19 m) on 24V CC at 5 W/m Ø 5.91 in (150 mm) IP65 / IP67
UT-N0512-DM 5×12mm Side bend · dome · 180° Mono 2.4 W/ft (8 W/m) 124 lm/ft (408 lm/m) 51 lm/W Ra≥90 24V 1.41 in (35.7 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0816-DM 8×16mm Side bend · dome · 180° Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 105 lm/ft (344 lm/m) 43 lm/W · HE to 52 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 3.94 in (100 mm) IP65 / IP67
UT-N0817-DM 8×17mm Side bend · dome · 180° Mono / CCT / RGB / RGBW / SPI 2.4 W/ft (8 W/m) 105 lm/ft (344 lm/m) 43 lm/W · HE to 52 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 3.94 in (100 mm) IP65 / IP67
UT-N1023-DM 10×23mm Side bend · dome · 180° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 132 lm/ft (432 lm/m) 36 lm/W · HE to 43 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 5.91 in (150 mm) IP65 / IP67
UT-N1225-DM 12×25mm Side bend · dome · 180° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 110 lm/ft (360 lm/m) 30 lm/W · HE to 36 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 5.91 in (150 mm) IP65 / IP67
UT-ND15-270 Ø15mm 270° round · 270° Mono / CCT / RGB / SPI 2.4 W/ft (8 W/m) 166 lm/ft (544 lm/m) 68 lm/W · HE to 82 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-ND20-270 Ø20mm 270° round · 270° Mono / CCT / RGB / RGBW 2.4 W/ft (8 W/m) 127 lm/ft (416 lm/m) 52 lm/W · HE to 62 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-ND25-270 Ø25mm 270° round · 270° Mono / CCT / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 293 lm/ft (960 lm/m) 64 lm/W · HE to 77 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-ND13-360 Ø13mm 360° round · 360° Mono 2.4 W/ft (8 W/m) 161 lm/ft (528 lm/m) 66 lm/W Ra≥90 24V 0.98 in (25 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-ND18-360 Ø18mm 360° round · 360° Mono 3.4 W/ft (11 W/m) 225–238 lm/ft (737–781 lm/m) 67–71 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-ND20-360 Ø20mm 360° round · 360° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 154 lm/ft (504 lm/m) 42 lm/W · HE to 50 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-ND22-360 Ø22mm 360° round · 360° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 154 lm/ft (504 lm/m) 42 lm/W · HE to 50 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-ND25-360 Ø25mm 360° round · 360° Mono / CCT / RGB / RGBW / SPI / DMX 3.0 W/ft (10 W/m) 195 lm/ft (640 lm/m) 64 lm/W · HE to 77 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-ND30-360 Ø30mm 360° round · 360° Mono / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 165–192 lm/ft (540–630 lm/m) 36–42 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-ND40-360 Ø40mm 360° round · 360° Mono / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 114–133 lm/ft (375–435 lm/m) 25–29 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-ND05-COB Ø5mm Top bend · COB · 270° Mono 1.5 W/ft (5 W/m) 91–122 lm/ft (300–400 lm/m) 60–80 lm/W Ra≥90 24V 0.98 in (25 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-ND07-COB Ø7mm Top bend · COB · 270° Mono 2.1 W/ft (7 W/m) 149–171 lm/ft (490–560 lm/m) 70–80 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0305-COB 3×5mm Top bend · COB · 120° Mono 1.5 W/ft (5 W/m) 91–122 lm/ft (300–400 lm/m) 60–80 lm/W Ra≥90 24V 0.98 in (25 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0407-COB 4×7mm Top bend · COB · 120° Mono 2.1 W/ft (7 W/m) 149–171 lm/ft (490–560 lm/m) 70–80 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0408-SB-COB 4×8mm Side bend · COB · 120° Mono 2.1 W/ft (7 W/m) 128–171 lm/ft (420–560 lm/m) 60–80 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0410-COB 4×10mm Top bend · COB · 120° Mono / CCT 2.1 W/ft (7 W/m) 149–171 lm/ft (490–560 lm/m) 70–80 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0410-COB-65 4×10mm Top bend · COB · open dome · 180° Mono / CCT 2.7 W/ft (9 W/m) 247–329 lm/ft (810–1080 lm/m) 90–120 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65
UT-N0410-COB-SO 4×10mm Top bend · COB · solid fill · 120° Mono / CCT 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0412-COB 4×12mm Top bend · COB · 120° Mono / CCT 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0510-COB 5×10mm Top bend · COB · 180° Mono / CCT 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0710-COB 7×10mm Top bend · COB · 270° Mono / CCT 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0711-COB 7×11mm Top bend · COB · 180° Mono / CCT 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N0712-COB 7×12mm Top bend · COB · 180° Mono / CCT 2.7 W/ft (9 W/m) 192–247 lm/ft (630–810 lm/m) 70–90 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP65 / IP67
UT-N1212-AG 12×12mm Top bend · anti-glare · 120° Mono 3.0 W/ft (10 W/m) 189–223 lm/ft (620–730 lm/m) 62–73 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 5.91 in (150 mm) IP65 / IP67
UT-N1610-AG 16×10mm Top bend · anti-glare · 120° Mono 3.0 W/ft (10 W/m) 189–223 lm/ft (620–730 lm/m) 62–73 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-N2010-AG 20×10mm Top bend · anti-glare · 120° Mono 3.0 W/ft (10 W/m) 189–223 lm/ft (620–730 lm/m) 62–73 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-N1616-3D-AG 16×16mm 3D · anti-glare · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 249 lm/ft (816 lm/m) 68 lm/W · HE to 82 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 9.84 in (250 mm) IP65 / IP67
UT-N0612-SB-PU 6×12mm Side bend · PU underwater · 120° Mono / CCT / RGB 1.5 W/ft (5 W/m) 64 lm/ft (210 lm/m) 42 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) Ø 1.97 in (50 mm) IP68 · 3 m submersion · IK10
UT-N1010-TB-PU 10×10mm Top bend · PU underwater · 120° Mono / CCT / RGB 3.0 W/ft (10 W/m) 223 lm/ft (730 lm/m) 73 lm/W Ra≥90 24V 1.97 in (50 mm) 16 ft (5 m) · 62 ft (19 m) on 24V CC at 5 W/m Ø 3.94 in (100 mm) IP68 · 3 m submersion · IK10
UT-N1018-SB-PU 10×18mm Side bend · PU underwater · 120° Mono / CCT / RGB / RGBW 3.0 W/ft (10 W/m) 140 lm/ft (460 lm/m) 46 lm/W Ra≥90 24V 1.64 in (41.6 mm) 16 ft (5 m) · 85 ft (26 m) on 24V CC at 5 W/m Ø 5.91 in (150 mm) IP68 · 3 m submersion · IK10
UT-N1220-SB-PU 12×20mm Side bend · PU underwater · 120° Mono / CCT / RGB / RGBW 3.0 W/ft (10 W/m) 140 lm/ft (460 lm/m) 46 lm/W Ra≥90 24V 1.64 in (41.6 mm) 16 ft (5 m) · 85 ft (26 m) on 24V CC at 5 W/m Ø 7.87 in (200 mm) IP68 · 3 m submersion · IK10
UT-N1615-TB-PU 16×15mm Top bend · PU underwater · 120° Mono / CCT / RGB / RGBW 4.6 W/ft (15 W/m) 320 lm/ft (1050 lm/m) 70 lm/W Ra≥90 24V 1.64 in (41.6 mm) 16 ft (5 m) · 85 ft (26 m) on 24V CC at 5 W/m Ø 7.87 in (200 mm) IP68 · 3 m submersion · IK10
UT-N4365-IG 43×65mm Horizontal bend · in-ground · 120° Mono / RGB / RGBW / DMX 3.7 W/ft (12 W/m) 102 lm/ft (336 lm/m) 28 lm/W Ra≥90 24V Made to length (no field cut) 33 ft (10 m) · DMX version 16 ft (5 m) Ø 31.5 in (800 mm) IP68 · IK10 · walkable
UT-N1616-3D-IG 16×16mm 3D · in-ground · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 176 lm/ft (576 lm/m) 48 lm/W · HE to 135 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 3.94 in (100 mm) IP68 · IK10 · walkable
UT-N1616-68 16×16mm Top bend Mono / RGBW 4.3 W/ft (14 W/m) — — — 24V 3.94 in (100 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP68 · IK10
UT-N1010-SPI 10×10mm Top bend · 120° SPI · RGB / white 3.7 W/ft (12 W/m) 37 lm/ft (120 lm/m) RGB · 205 lm/ft (672 lm/m) white 10 lm/W RGB · 56 lm/W white Ra≥90 (white) 24V · SPI 1.97 in (50 mm) 16 ft (5 m) Ø 3.94 in (100 mm) IP65 / IP67
UT-N1616-SPI 16×16mm Top bend · 120° SPI · RGB / RGBW / white 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 154 lm/ft (504 lm/m) RGB · 206 lm/ft (675 lm/m) RGBW 42 lm/W RGB · 45 lm/W RGBW Ra≥90 (white) 24V · SPI 2.46 in (62.5 mm) RGB/RGBW · 1.97 in (50 mm) white 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-N1616-DMX 16×16mm Top bend · 120° DMX512 · RGB / RGBW / white 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 146 lm/ft (480 lm/m) RGB · 183 lm/ft (600 lm/m) RGBW 40 lm/W Ra≥90 (white) 24V · DMX512 4.92 in (125 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-N1616-3D-SPI 16×16mm 3D · 120° SPI · RGB / RGBW / white 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 154 lm/ft (504 lm/m) RGB · 206 lm/ft (675 lm/m) RGBW 42 lm/W RGB · 45 lm/W RGBW Ra≥90 (white) 24V · SPI 1.97 in (50 mm) RGB/white · 2.46 in (62.5 mm) RGBW 16 ft (5 m) Ø 9.84 in (250 mm) IP65 / IP67
UT-N1616-3D-DMX 16×16mm 3D · 120° DMX512 · RGB / RGBW / white 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 154 lm/ft (504 lm/m) RGB · 206 lm/ft (675 lm/m) RGBW 42 lm/W RGB · 45 lm/W RGBW Ra≥90 (white) 24V · DMX512 4.92 in (125 mm) RGB/RGBW · 3.94 in (100 mm) white 16 ft (5 m) Ø 9.84 in (250 mm) IP65 / IP67
UT-N1020-SB-SPI 10×20mm Side bend · 120° SPI · RGB / RGBW / white 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 51 lm/ft (168 lm/m) RGB · 110 lm/ft (360 lm/m) RGBW 14 lm/W RGB · 24 lm/W RGBW Ra≥90 (white) 24V · SPI 2.46 in (62.5 mm) RGB/RGBW · 1.97 in (50 mm) white 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-N1020-SB-DMX 10×20mm Side bend · 120° DMX512 · RGB / RGBW / white 3.7 W/ft (12 W/m) RGB · 4.6 W/ft (15 W/m) RGBW 44 lm/ft (144 lm/m) RGB · 101 lm/ft (330 lm/m) RGBW 12 lm/W RGB · 22 lm/W RGBW Ra≥90 (white) 24V · 48V · DMX512 4.92 in (125 mm) RGB/RGBW · 3.94 in (100 mm) white 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-ND20-360-SPI Ø20mm 360° round SPI · RGB / white · DMX512 RGBW 3.7 W/ft (12 W/m) RGB · 7.3 W/ft (24 W/m) RGBW 110 lm/ft (360 lm/m) RGB · 293 lm/ft (960 lm/m) RGBW 30 lm/W RGB · 40 lm/W RGBW Ra≥90 (white) 24V · SPI · DMX512 1.97 in (50 mm) SPI · 4.92 in (125 mm) DMX 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-N1616-CM 16×16mm 3D · black body · 120° Mono / CCT / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 96 lm/ft (315 lm/m) 21 lm/W · HE to 27 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 9.84 in (250 mm) IP65 / IP67
UT-N1616-CM-OR 16×16mm 3D · orange body · 120° Mono / CCT / RGB / RGBW / SPI / DMX 3.7 W/ft (12 W/m) 124 lm/ft (408 lm/m) 34 lm/W · HE to 95 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 9.84 in (250 mm) IP65 / IP67
UT-N2323-CM 23×23mm 3D · black body · 120° Mono / CCT / RGB / RGBW / SPI / DMX 4.6 W/ft (15 W/m) 178 lm/ft (585 lm/m) 39 lm/W · HE to 66 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 131 ft (40 m) on 48V CC at 5 W/m Ø 11.8 in (300 mm) IP65 / IP67
UT-N0512-DM-CB 5×12mm Side bend · color body · 180° Mono 2.4 W/ft (8 W/m) 10–27 lm/ft (32–88 lm/m) 4–11 lm/W Ra≥90 24V 1.41 in (35.7 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
UT-N1616-TB-90 16×16mm Top bend · 90° angled beam Mono / CCT / RGB / RGBW / SPI / DMX 3.0 W/ft (10 W/m) 177 lm/ft (580 lm/m) 58 lm/W Ra≥90 24V · 48V 1.97 in (50 mm) @ 24V · 3.94 in (100 mm) @ 48V 16 ft (5 m) · 164 ft (50 m) on 48V CC at 5 W/m Ø 7.87 in (200 mm) IP65 / IP67
UT-N1513-SUS 15×13mm Top bend · cable-hung · 120° Mono / CCT / RGB / SPI 3.0 W/ft (10 W/m) 256 lm/ft (840 lm/m) 84 lm/W Ra≥90 24V 0.98 in (25 mm) 16 ft (5 m) Ø 7.87 in (200 mm) IP65 / IP67
Applications

Where neon flex earns its keep

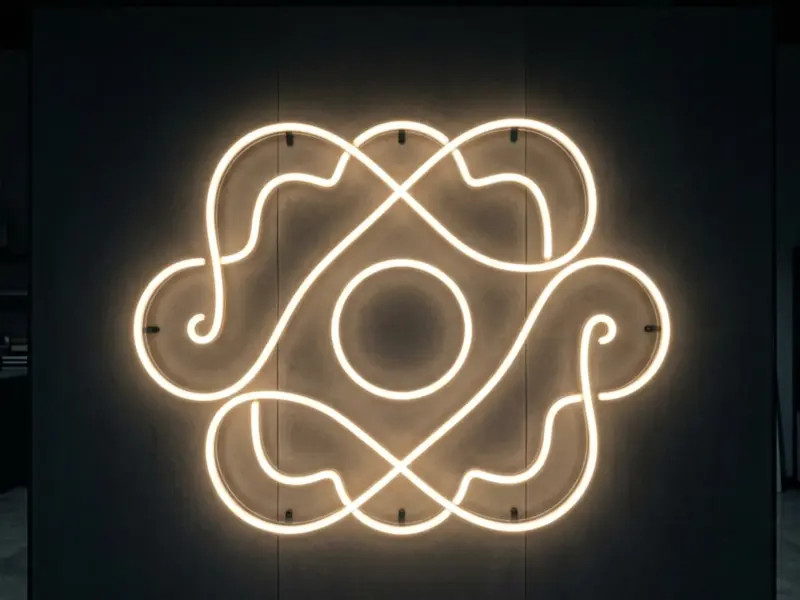

Abstract emblem formed from one continuous run of warm white LED neon flex

Signage & Logos

Channel letters, logos, and lettering formed from a continuous, even-lit neon line.

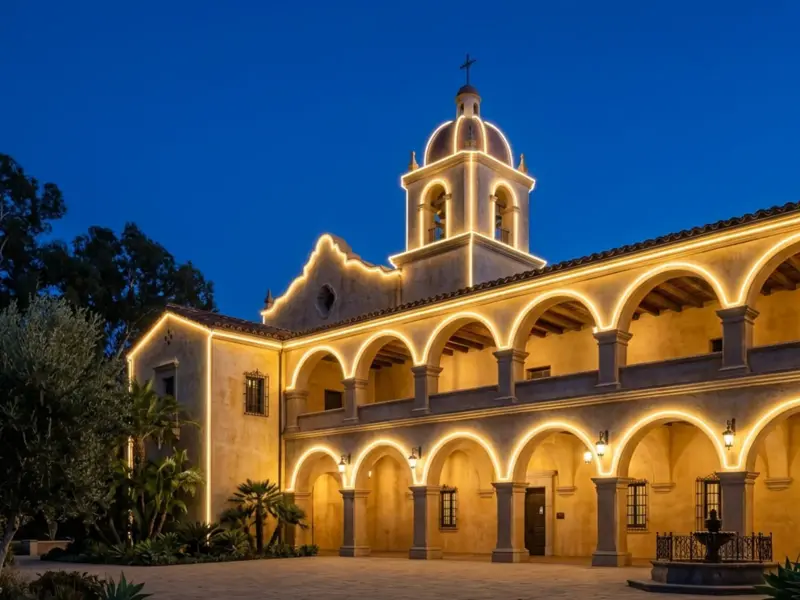

Arched building facade at dusk outlined by smooth LED neon flex curves

Architectural Outlining

Building contours, arches, and interior features traced with a smooth, diffused glow.

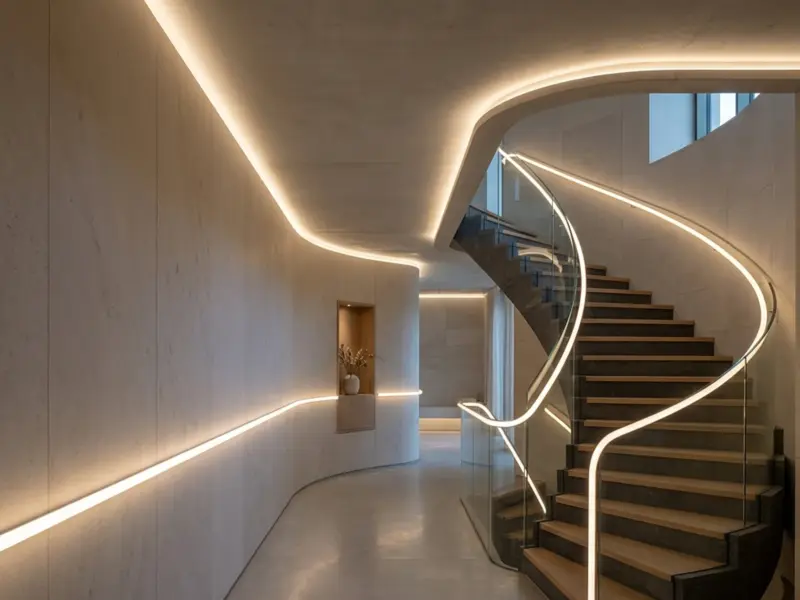

Spa corridor and curved stair traced by one soft solid neon flex line

Cove & Indirect

Coves, handrails, and step details where a soft, solid line of light is the finish.

Rainy waterfront boardwalk railing lit by even IP67 LED neon flex lines

Landscape & Wet Areas

IP67 profiles for exterior outlines, bridges, and waterside features in wet locations.

Compliance

Certifications

Products are sourced from qualified manufacturing partners, are CE Marked, and are available with UL Listed, ETL Listed, FCC compliant, RoHS compliant and other applicable configurations. Certification coverage varies by model. Certification is held by the original manufacturing partner. Documentation and listing information are available upon request.

UL ETL LM-80 CE RoHS

Projects outside North America: products are CE Marked, with RoHS compliant options and drivers matched to local mains. International orders

FAQ

Neon flex questions

Can LED neon flex be used for signs and channel letters?

Yes — signage is the primary application. Side-bend and dome-top profiles bend edgewise around letterforms (the 6×12 mm side bend down to a 1.97 in / 50 mm bend diameter), and SPI or DMX addressable versions animate signs without re-wiring. Channel letters typically use the 6×12 mm side-bend or a dome-top profile.

Can LED neon flex be cut to length?

Yes — at the marked cut points, every 0.98–1.97 in (25–50 mm) on most 24V profiles and 2.81–3.94 in (71.4–100 mm) on 48V versions; cut-anywhere (FC) versions of the 3D profiles have no fixed mark. After cutting, the open end is re-sealed with a matching silicone end cap and adhesive to restore the IP67 rating.

Read the cutting and sealing guide

How long does LED neon flex last?

Rated life is 50,000 hours — several times the service life of glass neon. UV-stable silicone holds color and flexibility outdoors without yellowing. No gas recharge or specialized neon trade is ever required.

What is the minimum bend radius?

Our tables list the minimum bend diameter; the radius is half of it. Micro side-bend profiles bend to a 1.18 in (30 mm) diameter, 6–12 mm profiles to 1.97–5.91 in (50–150 mm), 16–20 mm profiles to 7.87–9.84 in (200–250 mm) and large profiles to 11.8–19.7 in (300–500 mm). Bend only in the rated direction — top, side, or 3D — and never below the rated diameter.

See the bend radius table by model

Should I choose 12V or 24V neon flex?

Our neon flex runs on 24V, with 48V versions for long runs. A standard 24V profile runs 16 ft (5 m) per feed; 48V constant-current versions reach 131–164 ft (40–50 m) on one feed at 5 W/m, and less at higher power. At 12V the same profile draws twice the current and runs about half as far, so we steer neon projects to 24V or 48V.

See run lengths by model

How is LED neon different from glass neon?

LED neon flex delivers the same continuous glow at 24V instead of 3,000–15,000V, with no glass and no gas. Small profiles bend by hand to a 1.97 in (50 mm) diameter, it is IP67 rated for outdoor use, and lasts about 50,000 hours. Any electrical contractor can install it — no neon-bending trade required.

LED neon vs glass neon: cost, lifespan, code

What is the minimum order and lead time for neon flex?

One full reel per SKU is the minimum. Standard items typically ship in 1–2 weeks; custom cross-sections, colors or cut-and-sealed assemblies add 2–3 weeks. Every quote states the lead time for the exact items on it.

Ordering FAQ: minimums and lead times

Is the reel length the longest run I can install?

No. A reel is a supply length, not a run length. How far one run can go is set by the power design: standard 24V profiles run 16 ft (5 m) per feed, 48V constant-current versions up to 164 ft (50 m) at 5 W/m, and longer runs are fed from both ends or split into zones. Pieces are cut from the reel to your run schedule.

Reel length vs run length

Can you build neon to our drawing, with lettering or a logo?

Yes. Send the drawing with piece lengths, lead exits and shapes. Each piece is cut on the mark, wired, sealed, tested and labeled to match, and a first article is sent for approval before the run is built.

Custom neon assemblies

Why does LED neon flex give fewer lumens per watt than bare strip?

Neon's diffusing silicone scatters and absorbs light before it leaves the profile. In one same-board comparison at 3.05 W/ft, bare strip put out 296 to 316 lm/ft, while the same strip in a white silicone jacket gave 183 to 201 lm/ft. Our standard white neon profiles run about 30 to 80 lm/W, against about 100 lm/W for a normal bare white strip; high-efficacy builds reach 106 lm/W on top bend and 141 lm/W on the 16×16 mm 3D profile. The smoother the line, the more light it costs.

Read the neon efficacy guide

More answers in our guides (1)
Request a quote

Spec your neon flex project

Send your project details — an engineer replies with matched profile, drivers, and documentation.

main-inquiry

We typically respond within 24 hours. No spam, ever.
