120V LED Strip Lights (Line Voltage)
Line-voltage LED strip that connects directly to 120V AC — no drivers, none of the voltage drop that limits 12V/24V runs, single runs up to 98 ft (30 m), with flicker-free and dot-free COB options.
Our line voltage program connects directly to 120V AC — no drivers to size, place, or ventilate — and feeds single runs to 98 ft (30 m) from one end. Flicker-free series are available for camera-safe and occupied spaces, alongside dot-free driverless COB versions with TRIAC dimming from standard wall dimmers, all in IP65 silicone extrusion as standard. Eight line-voltage neon flex profiles at Ra≥90, in UL Listed and ETL Listed versions, complete the range. The trade-off on the strip, stated plainly: color rendering is Ra≥75–80 and cut intervals are larger than low-voltage strip. UL Listed options are available, with documentation for your submittal package.
Why contractors spec our line-voltage strip
Plugs into 120V — no driver
A rectifier plug replaces the driver, its enclosure, and its wiring plan.
Single runs to 98 ft (30 m)
One feed per elevation — no low-voltage drop to manage.
Flicker-free options
Flicker-free series for occupied spaces and on-camera areas.
Dot-free 120V COB
A continuous line of light, straight off line voltage.
TRIAC dimmable
Phase-cut dimming from standard wall dimmers — no extra control wiring.
IP65 rated, UL Listed options available
Weather-ready extrusion with documentation for submittals.
Four line-voltage families, one spec conversation

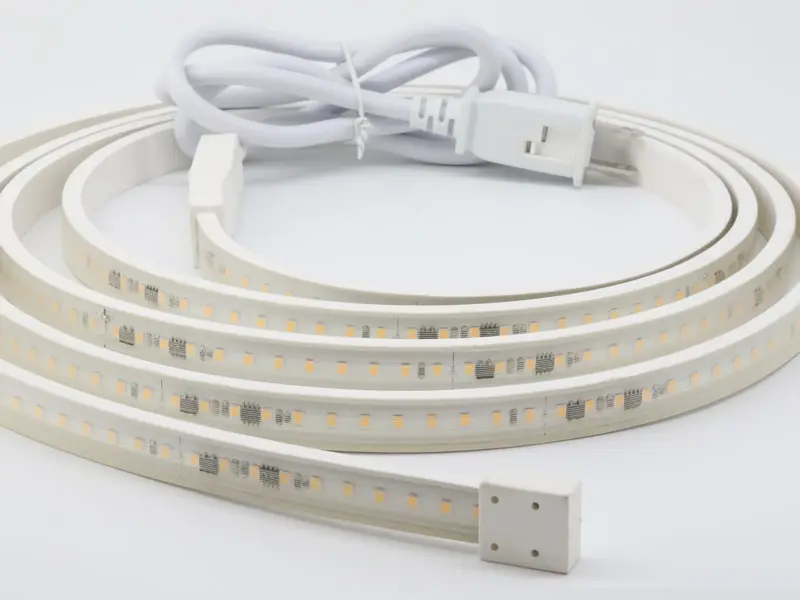

120V Single Color (SMD)
Direct-AC 2835 strip in three densities plus a flicker-free version — plug in one end and light up to 98 ft (30 m) of perimeter.
| Model | LEDs/m | Construction | Drive |
|---|---|---|---|
| 60 | 2835 | direct AC | |
| 72 | 2835 | direct AC | |
| 120 | 2835 | direct AC | |
| 112 | flicker-free | direct AC |
Tap a row to add that model to your quote list

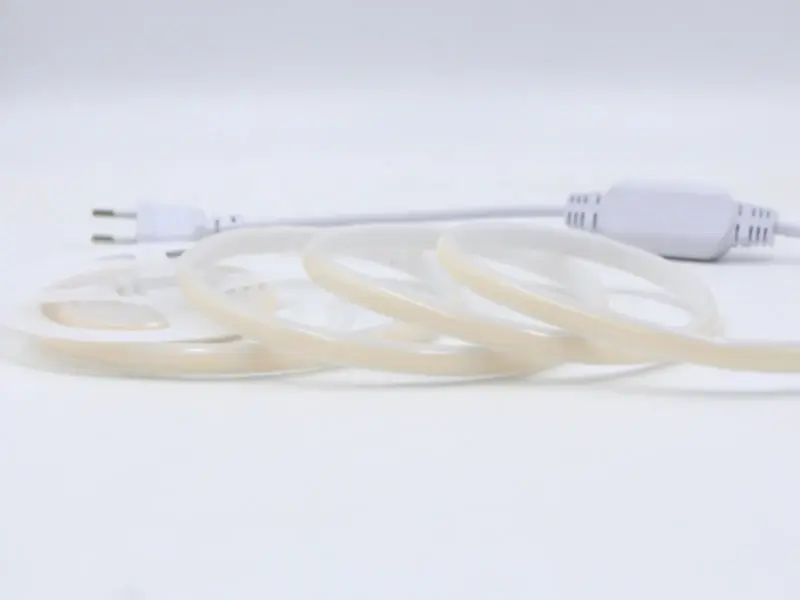

120V COB (Dot-Free)
The dot-free line, without the driver — driverless COB runs straight off 110–120V AC with a 125 mm cut interval, the finest in the line voltage range.
| Model | LEDs/m | Construction | Drive |
|---|---|---|---|
| 296 | driverless COB | direct AC | |
| 288 | COB | external rectifier |
Tap a row to add that model to your quote list
120V LED Neon Flex
Silicone neon flex that runs straight off 110–120V AC with no driver: four top-bend and four side-bend profiles from 10×10 to 20×14 mm, white 2700–6000K at Ra≥90, in UL Listed and ETL Listed versions. For long facade outlines and signs where a driver location is a problem.
| Model | Profile | Bend · beam | Power W/ft (W/m) | Output lm/ft (lm/m) | Min bend Ø |
|---|---|---|---|---|---|
| 10×10mm | Top bend · 120° | 3.0 W/ft (10 W/m) | 152–177 lm/ft (500–580 lm/m) | Ø 3.94 in (100 mm) | |
| 12×12mm | Top bend · 120° | 3.7 W/ft (12 W/m) | 183–212 lm/ft (600–696 lm/m) | Ø 5.91 in (150 mm) | |
| 16×16mm | Top bend · 120° | 4.3 W/ft (14 W/m) | 213–247 lm/ft (700–812 lm/m) | Ø 7.87 in (200 mm) | |
| 20×14mm | Top bend · 120° | 4.3 W/ft (14 W/m) | 213–247 lm/ft (700–812 lm/m) | Ø 7.87 in (200 mm) | |
| 10×18mm | Side bend · 120° | 3.7 W/ft (12 W/m) | 121–143 lm/ft (396–468 lm/m) | Ø 5.91 in (150 mm) | |
| 12×20mm | Side bend · 120° | 4.3 W/ft (14 W/m) | 141–166 lm/ft (462–546 lm/m) | Ø 7.87 in (200 mm) | |
| 16×16mm | Side bend · 120° | 4.3 W/ft (14 W/m) | 196–222 lm/ft (644–728 lm/m) | Ø 7.87 in (200 mm) | |
| 12×25mm | Side bend · 180° | 4.3 W/ft (14 W/m) | 154–179 lm/ft (504–588 lm/m) | Ø 5.91 in (150 mm) |
Tap a row to add that model to your quote list
Power and output are the 230V build's figures across 2700–6000K; the 120V build's cut step and maximum run are confirmed on your quote (the 230V build cuts every 3.94 in (100 mm) and runs 164 ft (50 m)). UL Listed and ETL Listed versions; listing documentation on request.

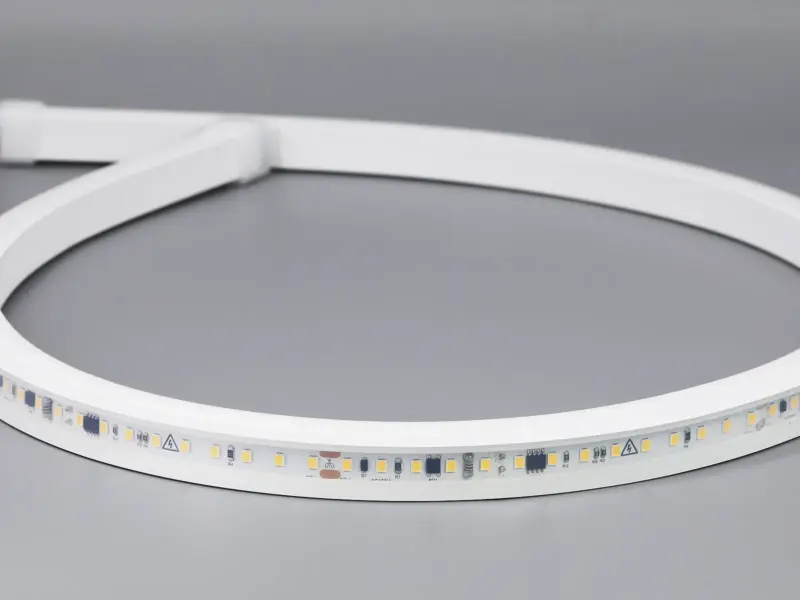

230V (International)
For projects outside North America, 230V versions of the same families are available — runs to 164 ft (50 m).
| Model | LEDs/m | Construction | Drive |
|---|---|---|---|
| 112 | flicker-free | AC 230V | |
| 296 | driverless COB | AC 230V |
Tap a row to add that model to your quote list
Master spec table
Representative models across all four families. Full photometric files and IES data ship with your quote.
How to read our model numbers: UT-H{voltage}-{LEDs per meter}; suffixes: FF flicker-free · COB dot-free. Neon flex: UT-H120-N{width×height in mm}-{TB top bend | SB side bend}.
Tap a row for full specs.
| Model | LEDs/m | Construction | Power W/ft (W/m) | CRI | CCT | Voltage / Drive | Cut increment | Max run | IP rating |
|---|---|---|---|---|---|---|---|---|---|
| 60 | 2835 | 2.7 W/ft (9 W/m) | Ra≥80 | 2700-6500K | direct AC | 19.7 in (500 mm) | 98 ft (30 m) single feed | IP65 | |
| 72 | 2835 | 3.0 W/ft (10 W/m) | Ra≥80 | 2700-6500K | direct AC | 19.7 in (500 mm) | 98 ft (30 m) single feed | IP65 | |
| 120 | 2835 | 4.3 W/ft (14 W/m) | Ra≥80 | 2700-6500K | direct AC | 19.7 in (500 mm) | 98 ft (30 m) single feed | IP65 | |
| 112 | flicker-free | 3.7 W/ft (12 W/m) | Ra≥80 | 2700-6500K | direct AC | 19.7 in (500 mm) | 98 ft (30 m) single feed | IP65 | |
| 296 | driverless COB | 2.4 W/ft (8 W/m) | Ra≥80 | 3000/4000/6000K | direct AC | 4.9 in (125 mm) | 98 ft (30 m) single feed | IP65 | |
| 288 | COB | 2.4 W/ft (8 W/m) | Ra≥75 | 3000/4000/6000K | external rectifier | 9.8 in (250 mm) | 98 ft (30 m) single feed | IP65 | |
| — | Neon flex · 10×10mm | 3.0 W/ft (10 W/m) | Ra≥90 | 2700–6000K | direct AC 110–120V | Confirmed at quote | Confirmed at quote | IP65 / IP67 | |
| — | Neon flex · 12×12mm | 3.7 W/ft (12 W/m) | Ra≥90 | 2700–6000K | direct AC 110–120V | Confirmed at quote | Confirmed at quote | IP65 / IP67 | |
| — | Neon flex · 16×16mm | 4.3 W/ft (14 W/m) | Ra≥90 | 2700–6000K | direct AC 110–120V | Confirmed at quote | Confirmed at quote | IP65 / IP67 | |
| — | Neon flex · 20×14mm | 4.3 W/ft (14 W/m) | Ra≥90 | 2700–6000K | direct AC 110–120V | Confirmed at quote | Confirmed at quote | IP65 / IP67 | |
| — | Neon flex · 10×18mm | 3.7 W/ft (12 W/m) | Ra≥90 | 2700–6000K | direct AC 110–120V | Confirmed at quote | Confirmed at quote | IP65 / IP67 | |
| — | Neon flex · 12×20mm | 4.3 W/ft (14 W/m) | Ra≥90 | 2700–6000K | direct AC 110–120V | Confirmed at quote | Confirmed at quote | IP65 / IP67 | |
| — | Neon flex · 16×16mm | 4.3 W/ft (14 W/m) | Ra≥90 | 2700–6000K | direct AC 110–120V | Confirmed at quote | Confirmed at quote | IP65 / IP67 | |
| — | Neon flex · 12×25mm | 4.3 W/ft (14 W/m) | Ra≥90 | 2700–6000K | direct AC 110–120V | Confirmed at quote | Confirmed at quote | IP65 / IP67 | |
| 112 | flicker-free | 3.7 W/ft (12 W/m) | Ra≥80 | 2700-6500K | AC 230V | 19.69 in (500 mm) | 164 ft (50 m) single feed | IP65 | |
| 296 | driverless COB | 10-12W | Ra≥80 | 3000-6000K | AC 230V | 19.69 in (500 mm) | 164 ft (50 m) single feed | IP65 |
Tap a row to add that model to your quote list
Where line-voltage strip earns its keep

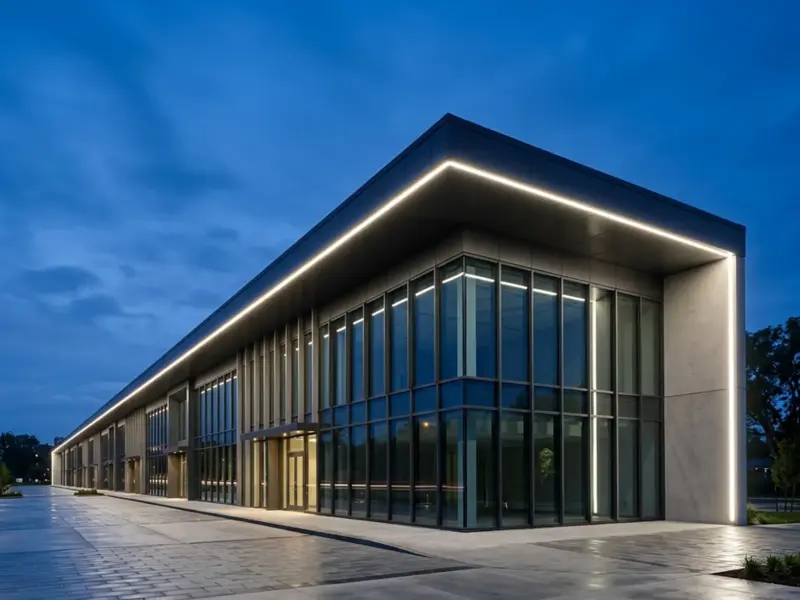

Facades & Perimeters
Uninterrupted outline and soffit runs up to 98 ft (30 m) from a single feed — no low-voltage drivers mid-run.

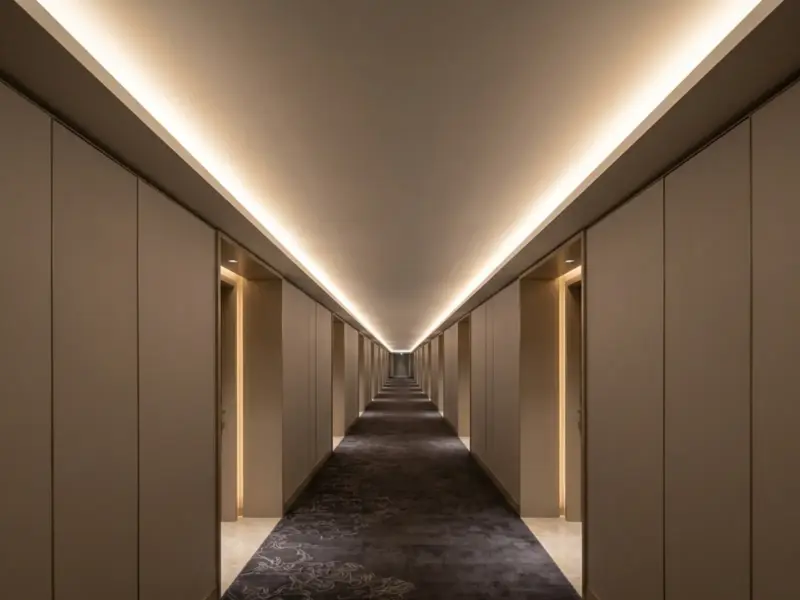

Commercial Coves
Long cove and ceiling runs in lobbies and corridors where driver count and voltage drop matter.

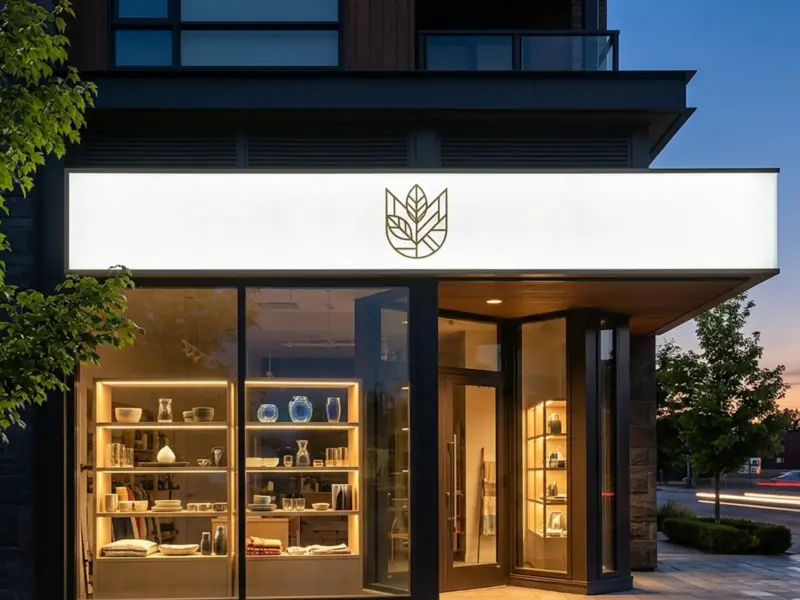

Signage & Cabinets
Illuminated signs, light boxes, and display cabinets fed directly from line voltage.

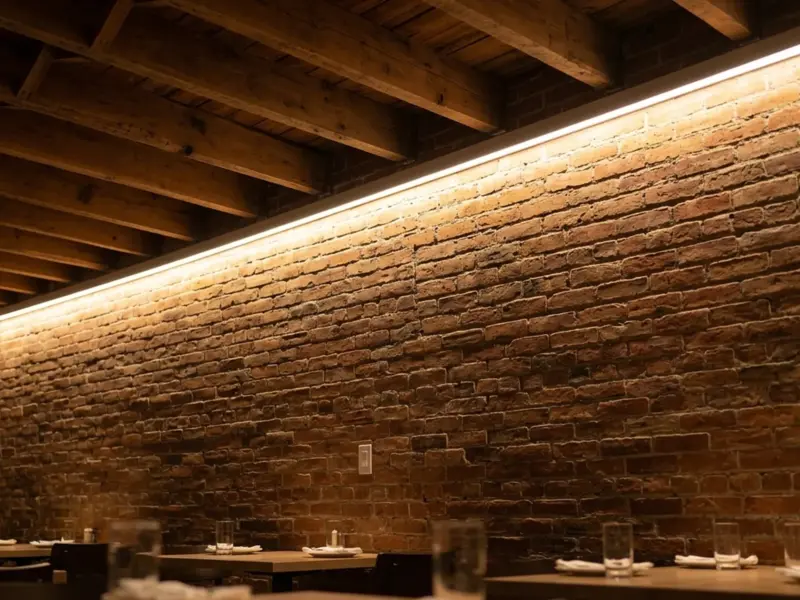

Retrofit & Remodel
Driverless installs that tie straight into existing 120V circuits and standard TRIAC wall dimmers.
Certifications
Products are sourced from qualified manufacturing partners, are CE Marked, and are available with UL Listed, ETL Listed, FCC compliant, RoHS compliant and other applicable configurations. Certification coverage varies by model. Certification is held by the original manufacturing partner. Documentation and listing information are available upon request.
Projects outside North America: products are CE Marked, with RoHS compliant options and drivers matched to local mains. International orders
120V line-voltage questions
Does 120V LED strip need a driver?
No — it connects directly to 120V AC through a rectifier plug. That eliminates the LED driver, the transformer placement problem, and the low-voltage wiring plan. Power draw is 8–14 W per meter depending on the series.
How long can a single run be?
98 ft (30 m) from a single feed on every 120V strip series (the 120V neon flex run is confirmed on the quote) — there is no low-voltage drop to manage. The 230V international versions extend that to 164 ft (50 m). One feed typically covers an entire building elevation.
Do you have 120V LED neon flex?
Yes — eight silicone neon profiles run straight off 110–120V AC with no driver: top bend from 10×10 to 20×14 mm and side bend from 10×18 to 16×16 mm, white 2700–6000K at Ra≥90, in UL Listed and ETL Listed versions. The cut step and maximum run of the 120V build are confirmed on the quote. For 24V and 48V neon, see the LED neon flex page.
When should I choose 120V over 24V strip?
Choose 120V when the run is long and driver placement is the problem — perimeters, parking structures, temporary installs. The trade-off is real: CRI is Ra 75–80 and cut intervals are 500 mm versus 25–50 mm on low-voltage strip. For CRI-critical interior work, specify low-voltage COB instead.
Is 120V LED strip a Class 2 low-voltage product?
No. It runs on line voltage, so the Class 2 rules that cover 24V strip do not apply; it is wired with line-voltage methods like any other 120V load, and the method for a given install is confirmed with the AHJ.
Is 120V LED strip dimmable?
Yes — 120V series support TRIAC phase-cut dimming from standard wall dimmers, with no low-voltage conversion or extra control wiring. For camera-safe occupied spaces, pair dimming with the flicker-free series.
Is it safe to install?
Yes, when installed to code — the strip is IP65 rated, is available as a UL Listed option, and connects through a listed rectifier plug. Follow NEC and local code for line-voltage wiring; hardwired installations should be completed by a licensed electrician.
Can 120V LED strip be used outdoors?
Every series is IP65 silicone extrusion, which is tested against water jets, not immersion. The IP code is a lab test; the wet location marking comes from the product's listing and is confirmed per model at quote, and the plug and connections need the same protection as the strip.
Can 120V LED strip be cut?
Yes — at the marked cut points, every 19.7 in (500 mm) on the SMD series, 9.8 in (250 mm) on UT-H120-288-COB and 4.9 in (125 mm) on UT-H120-296-COB. Intervals are larger than low-voltage strip because each segment must hold a full AC circuit. Cap the cut end with the listed end cap.
Can 120V LED strip replace T5 fixtures in a cove?
Yes, when the detail needs one unbroken line of light. Every T5 fixture ends in two sockets, so fixtures laid end to end leave a dark band at each joint. Strip in a channel runs continuous for the whole channel and is cut only at marked points, every 19.7 in (500 mm) on our 120V series. If the fixture itself will be seen, a T5-style bar can still make sense.
