COB LED Strip Lights (Dot-Free)

Dot-free COB LED strip from 280 to 1,600 LEDs per meter — 12V, 24V, and 48V long-run options, with UL Listed options available.

48V COB LED strip lit in a long coil for extended single-feed runs
Light line
Dot-free · 280–1,600 LEDs/m
Supply range

Our COB (also called FCOB) flexible strip and tape light program covers the full architectural range of high-density, dotless LED strip: 280 to 1,600 LEDs per meter, 90–98, and color temperatures from 2700 K to 6500 K, on PCB widths from 2.7 to 30 mm.

Ingress ratings run IP20 through IP68 for dry, damp, and wet locations. Choose 12 V or 24 V constant-voltage strip, or the 48 V engineering series for single-feed runs up to 65 ft (20 m).

UL Listed options are available, with documentation ready for your submittal package.

Cross-section
Top view
Key features

Why contractors spec our COB tape light

Dotless, uniform light

A continuous phosphor line with no visible hotspots — even without a diffuser.

High CRI — Ra90 standard, up to 98

True color rendering with ±2 SDCM binning across every reel.

12V · 24V · 48V options

Match the voltage to the run — from short accents to 65 ft (20 m) single feeds.

Free-cut & mini-cut options

Cut steps down to 3.02 mm — or anywhere along the run with the free-cut series.

High density up to 1,600 LEDs/m

Engineering-grade density for zero-shadow edge lighting and tight-radius details.

UL Listed options available

Certification held by the original manufacturing partner. Documentation available upon request.

When to spec something else

One feed for a long run

Most standard 12V/24V COB is rated 16 ft (5 m) per feed, and the 15–30 mm high-density boards 10 ft (3 m).

48V or constant-current COB, up to 65 ft (20 m) from one end

A dot-free line above 125 lm/W

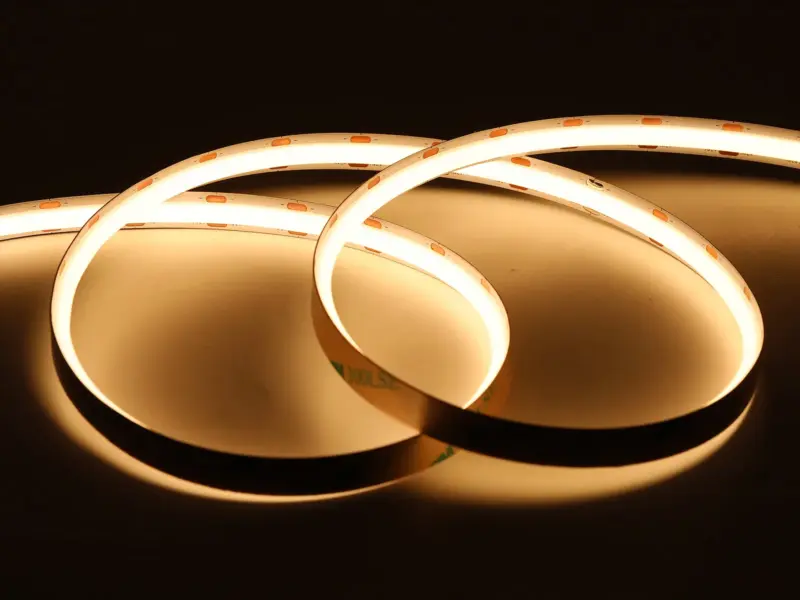

SCOB, also called WCOB, puts sorted LED packages under one white silicone line.

SCOB LED strip, up to 142 lm/W at Ra≥90

A standard power supply on CC strip

Our constant-current models (UT-…-CC) do not run on a constant-voltage 24V supply.

A matched constant-current driver, specified on your quote

Wet or outdoor locations

Most models in the tables are IP20, for dry indoor locations only; the silicone-extruded series is IP67.

IP67 silicone-extruded COB, or outdoor & waterproof strip

Dense strip stuck straight to wood or drywall

Series above 800 LEDs/m should always be mounted in a channel. Heat sinking decides rated life.

An aluminum channel

Pixel effects or color changing

The strips on this page are white or one fixed color, lit as one line.

Addressable COB or COB RGB
Product range

Nine COB series, one spec conversation

Standard COB

The workhorse dotless strip for coves, channels, and millwork — 280 to 512 LEDs per meter on an 8–10 mm PCB, in 12V and 24V.

Model LEDs/m PCB width Voltage Power W/ft (W/m) Output lm/ft (lm/m) CRI
312 8mm 12V/24V 3.4 W/ft (11 W/m) — Ra≥90
320 8mm 12V/24V 2.4 W/ft (8 W/m) — Ra≥90
384 8mm 24V 3.0 W/ft (10 W/m) — Ra≥90
480 8mm 12V/24V 3.2 W/ft (10.5 W/m) — Ra≥90
280 10mm 24V 2.4 W/ft (8 W/m) 214–238 lm/ft (702–780 lm/m) Ra≥90
320 10mm 24V 3.0 W/ft (10 W/m) 210–232 lm/ft (690–760 lm/m) Ra≥90
420 10mm 24V 3.7 W/ft (12 W/m) 313–347 lm/ft (1,026–1,140 lm/m) Ra≥90
480 10mm 24V 3.7 W/ft (12 W/m) 329–366 lm/ft (1,080–1,200 lm/m) Ra≥90
512 10mm 12V/24V 3.7 W/ft (12 W/m) @24V 329–366 lm/ft (1,080–1,200 lm/m) Ra≥90

Tap a row to add that model to your quote list

Unitop has supported us on many projects over the years, from hotels and parking facilities to residential developments. We regularly source LED neon strips, COB LED strips, LED wall washers, aluminum LED channels, power supplies, and other lighting components from them.
Gladson V., Sales Engineer Bahrain

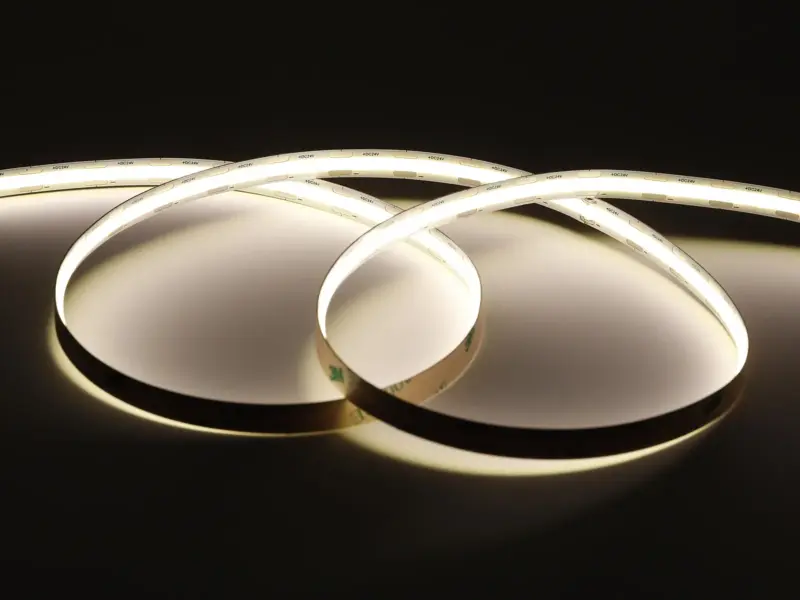

Standard COB LED strip coiled and glowing with even warm white light

High-Density & Engineering COB

600 to 1,600 LEDs per meter, including dual-row designs, for zero-shadow edge lighting, backlit stone, and diffuser-free details where uniformity is non-negotiable.

Model LEDs/m PCB width Voltage Power W/ft (W/m) Output lm/ft (lm/m) CRI
960 15mm 24V 7.6 W/ft (25 W/m) — Ra≥90
1600 30mm 24V 12.2 W/ft (40 W/m) — Ra≥90
600 12mm dual-row 24V 7.3 W/ft (24 W/m) — Ra≥90
960 12mm dual-row 24V — — Ra≥90
1328 10mm 12V/24V 3.7 W/ft (12 W/m) @12V 213–237 lm/ft (699–776 lm/m) Ra≥90

Tap a row to add that model to your quote list

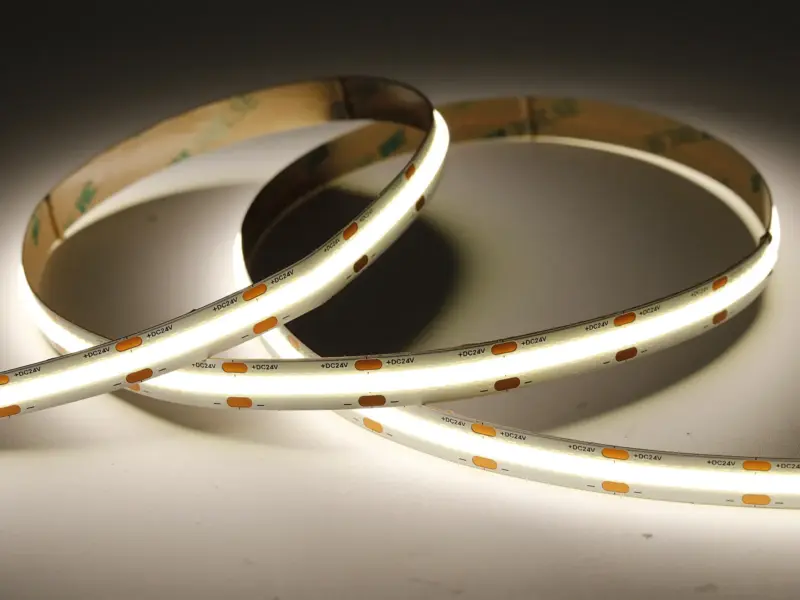

High-density COB LED strip lit in a coil producing one seamless dot-free band

Ultra-Narrow COB

PCB widths down to 2.7 mm for reveal details, handrails, and micro channels where standard 8 mm strip will not fit.

Model LEDs/m PCB width Voltage Power W/ft (W/m) Output lm/ft (lm/m) CRI
400 2.7/3mm 12V/24V 2.1 W/ft (7 W/m) — Ra≥90
400 5mm 12V/24V 1.8 W/ft (6 W/m) @12V 179–194 lm/ft (588–636 lm/m) Ra≥90
420 4mm 24V 1.8 W/ft (6 W/m) 148–165 lm/ft (486–540 lm/m) Ra≥90
400 5mm 5V 2.4 W/ft (8 W/m) — Ra≥90
480 3/4/5mm 12V/24V — — Ra≥90
300 6.5mm bare copper 12V — — Ra≥80-90
528 3mm 12V 1.8 W/ft (6 W/m) 165–183 lm/ft (540–600 lm/m) Ra≥90

Tap a row to add that model to your quote list

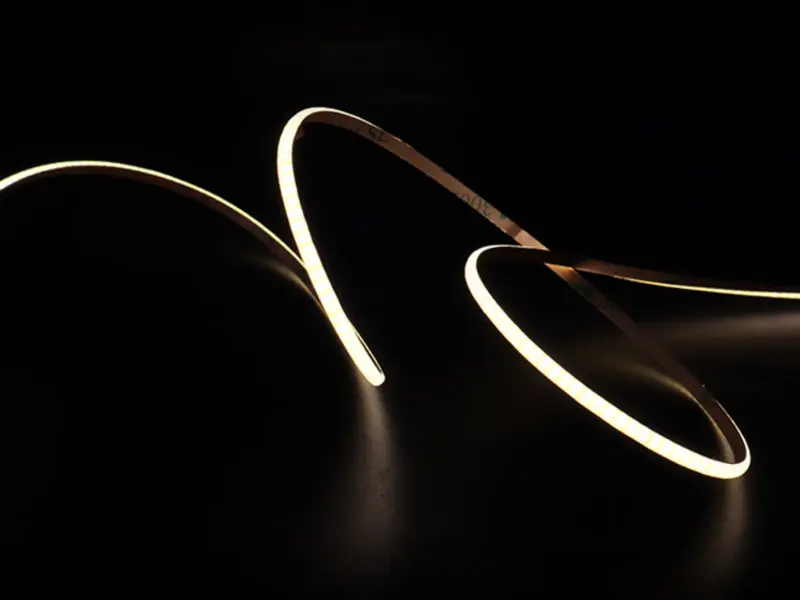

Ultra-narrow COB LED strip lit to show a slim continuous dot-free line

Free-Cut & Mini-Cut COB

Free cut COB LED strip cuts at any point along the run; mini-cut and solder-free series step down to 12.5 mm. Both end field-measurement guesswork on cabinet runs and shelf edges.

Model LEDs/m PCB width Voltage Power W/ft (W/m) Output lm/ft (lm/m) CRI
528 8mm 12V/24V 4.0 W/ft (13 W/m) — Ra≥90
528 10mm 12V/24V — — Ra≥90
544 10mm 24V 3.7 W/ft (12 W/m) 339–399 lm/ft (1,113–1,308 lm/m) Ra≥90
480 8mm 24V 3.4 W/ft (11 W/m) 175–196 lm/ft (573–643 lm/m) Ra≥90
320 6.6mm solder-free 12V 2.1 W/ft (7 W/m) — Ra≥90
480 7mm 24V — — Ra≥90

Tap a row to add that model to your quote list

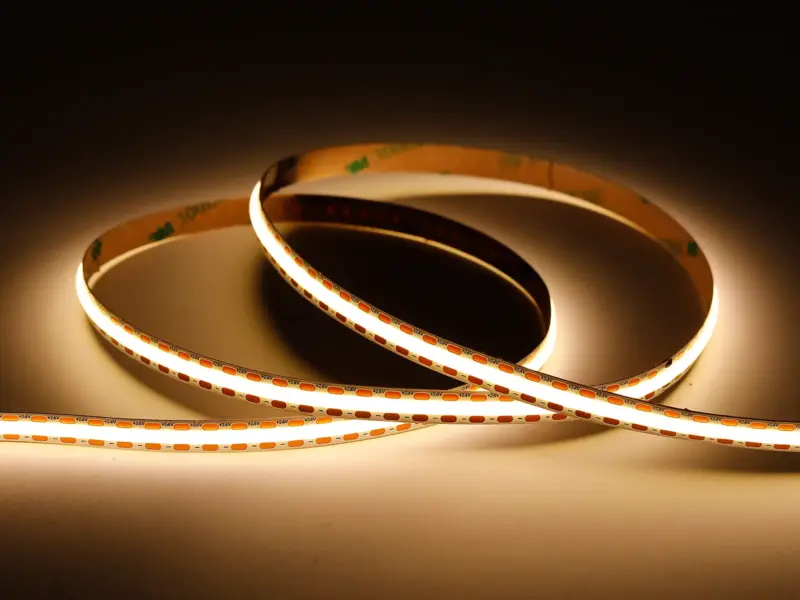

Powered UT-C528-8-FC free-cut COB LED strip coiled and lit, with cut-point markers along the run showing it can be trimmed anywhere

DOB high-efficiency COB

DOB is the factory's high-efficiency successor to COB: the same continuous, dot-free line, at 117 to 138 lm/W and Ra≥90 — well above the 85 to 100 lm/W of standard COB. The factory rates the white version for an even line over a 49 ft (15 m) run. 10 mm board standard, 8 mm on request; an RGB version uses the same board for color.

Model LEDs/m PCB width Voltage Power W/ft (W/m) Output lm/ft (lm/m) CRI
280 10mm 24V 2.9 W/ft (9.6 W/m) 343–403 lm/ft (1,124–1,322 lm/m) Ra≥90
280 10mm 24V 4.4 W/ft (14.4 W/m) 223 lm/ft (730 lm/m) RGB —

Tap a row to add that model to your quote list

Two DOB LED strips lit cool white and warm white, each a continuous dot-free line curving across a dark surface

Colored COB

Saturated single-color red, green, blue, ice blue, violet, and pink — the same dotless line in signage and accent colors, without pixel dots.

Model Color (wavelength)
Red 620±5nm
Green 540±5nm
Blue 455±5nm
Ice Blue 484±5nm
Violet 380±5nm
Pink 610±5nm
All colors: 480 LEDs/m · 8mm PCB · 12V/24V · 3.2 W/ft (10.5 W/m) · cut 0.98 in (25 mm) at 12V, 1.97 in (50 mm) at 24V.

Tap a row to add that model to your quote list

Unitop’s red and green COB LED strips have met our requirements for color performance, stability, and reliable delivery, while integrating smoothly into our equipment design.
David S., Purchasing Manager Spain

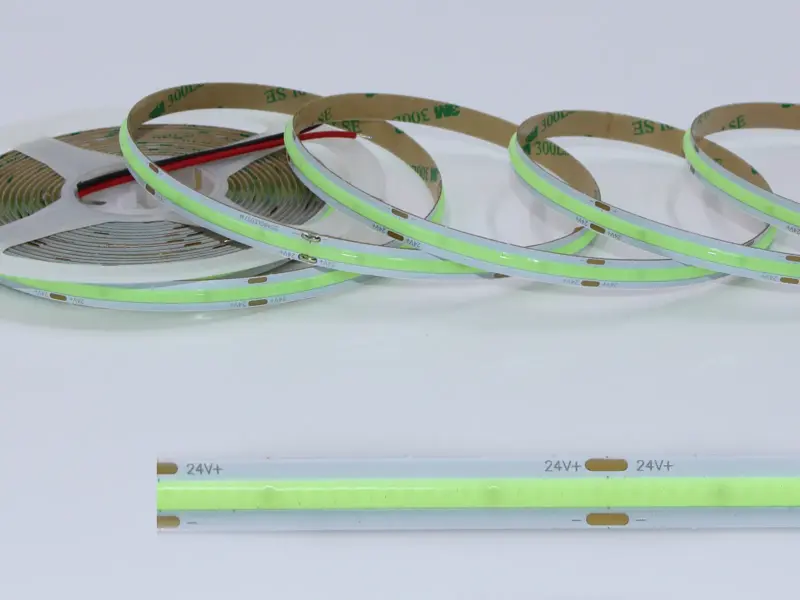

Unlit colored COB LED strips coiled to show tinted phosphor bands

Side-View & S-Shape COB

Side-emitting strip lights the edge, not the face — for channel letters and profiles; S-shape PCB bends flat around curves down to a 30 mm radius.

Model LEDs/m PCB width Voltage Power W/ft (W/m) Output lm/ft (lm/m) CRI
320 6mm side-view 12V 2.4 W/ft (8 W/m) — Ra≥90
400 8mm S-shape 24V — — Ra≥90

Tap a row to add that model to your quote list

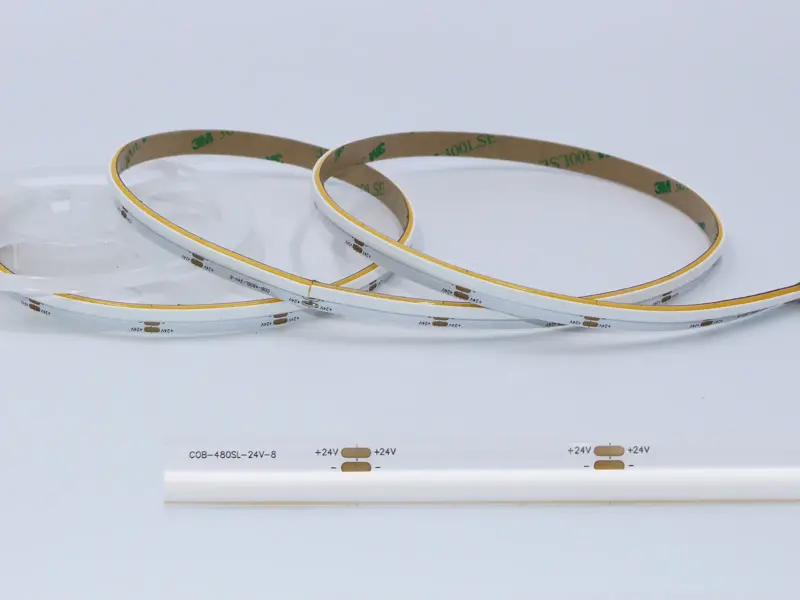

Side-view COB LED strip coil emitting a continuous line of light from its edge

48V & Long-Run COB

48V and 24V constant-current designs feed up to 65 ft (20 m) from a single end — one driver, no mid-run injection, no visible voltage drop. The constant-current (CC) models need a constant-current driver.

Model LEDs/m PCB width Voltage Power W/ft (W/m) Output lm/ft (lm/m) CRI
480 8mm 48V 2.4 W/ft (8 W/m) — Ra≥90
480 8mm 24V CC 2.3 W/ft (7.5 W/m) — Ra≥90
420 8mm 24V CC 2.9 W/ft (9.6 W/m) 237–263 lm/ft (778–864 lm/m) Ra≥90
420 10mm 24V CC 2.9 W/ft (9.6 W/m) 237–263 lm/ft (778–864 lm/m) Ra≥90

Tap a row to add that model to your quote list

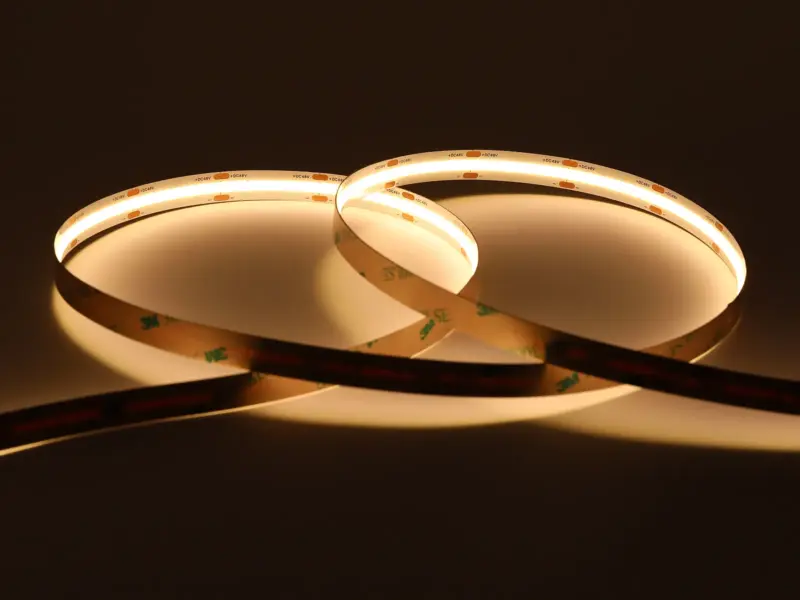

48V COB LED strip lit in a long coil for extended single-feed runs

IP67 silicone-extruded COB

COB strip sealed in a solid silicone extrusion for damp and wet locations, rated IP67 — no separate sleeve or end-cap kit to assemble on site. The 480 LEDs/m version sits in a 12 mm extrusion and the 512 LEDs/m version in 10 mm. The sauna version is built for heat and steam: IP67, Ra≥90, 95 to 100 lm/W, and rated to operate from -22 °F to 248 °F (-30 °C to 120 °C).

Model LEDs/m PCB width Voltage Power W/ft (W/m) Output lm/ft (lm/m) CRI
480 10mm in 12mm silicone extrusion 24V 3.7 W/ft (12 W/m) 321–364 lm/ft (1,054–1,194 lm/m) Ra≥90
512 10mm silicone extrusion 24V 3.7 W/ft (12 W/m) 313–347 lm/ft (1,026–1,140 lm/m) Ra≥90
480 10mm in 12mm silicone extrusion · -30 to 120 °C 24V 3.0 W/ft (10 W/m) 290–305 lm/ft (950–1,000 lm/m) Ra≥90

Tap a row to add that model to your quote list

IP67 silicone-extruded COB LED strip in a clear sleeve, curled into a spiral on a white background
Specifications

Master spec table

Representative models across all nine series. Full photometric files and IES data ship with your quote.

Specs reviewed

How to read our model numbers: UT-C{LEDs per m}-{PCB width mm}; UT-D = DOB; suffixes: FC free-cut · SF solder-free · SV side-view · SS S-shape · CC constant current · 48V long-run · D dual-row · LV 5V low-voltage · IP67 silicone extrusion · SAUNA heat-rated · RGB color · RD/GN/BL/IB/VT/PK colors.

Tap a row for full specs.

Model LEDs/m PCB width Power W/ft (W/m) Output lm/ft (lm/m) Efficacy CRI CCT Voltage Cut increment Max run IP
312 8mm 3.4 W/ft (11 W/m) — — Ra≥90 2700-6000K 12V/24V 0.76 in (19.23 mm) @12V / 1.51 in (38.46 mm) @24V 32 ft (10 m) no voltage drop IP20
320 8mm 2.4 W/ft (8 W/m) — — Ra≥90 2700-6000K 12V/24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20
384 8mm 3.0 W/ft (10 W/m) — — Ra≥90 2700-6500K 24V 1.23 in (31.25 mm) 32 ft (10 m) no voltage drop IP20
480 8mm 3.2 W/ft (10.5 W/m) — — Ra≥90 2700-6000K 12V/24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20
280 10mm 2.4 W/ft (8 W/m) 214–238 lm/ft (702–780 lm/m) 88–98 lm/W Ra≥90 2700-6000K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
320 10mm 3.0 W/ft (10 W/m) 210–232 lm/ft (690–760 lm/m) 86–95 lm/W Ra≥90 2700-6000K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
420 10mm 3.7 W/ft (12 W/m) 313–347 lm/ft (1,026–1,140 lm/m) 86–95 lm/W Ra≥90 2700-6000K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
480 10mm 3.7 W/ft (12 W/m) 329–366 lm/ft (1,080–1,200 lm/m) 90–100 lm/W Ra≥90 2700-6000K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
512 10mm 3.7 W/ft (12 W/m) @24V 329–366 lm/ft (1,080–1,200 lm/m) 90–100 lm/W Ra≥90 2700-6000K 12V/24V 2.46 in (62.5 mm) @24V 16 ft (5 m)/feed @24V IP20
960 15mm 7.6 W/ft (25 W/m) — — Ra≥90 2700-6500K 24V 1.97 in (50 mm) 10 ft (3 m)/feed IP20
1600 30mm 12.2 W/ft (40 W/m) — — Ra≥90 2700-6500K 24V 0.98 in (25 mm) 10 ft (3 m)/feed IP20
600 12mm dual-row 7.3 W/ft (24 W/m) — — Ra≥90 2700-6500K 24V 0.79 in (20 mm) 16 ft (5 m)/feed IP20
1328 10mm 3.7 W/ft (12 W/m) @12V 213–237 lm/ft (699–776 lm/m) 58–65 lm/W Ra≥90 2700-6000K 12V/24V 0.12 in (3.02 mm) @12V 16 ft (5 m)/feed @12V IP20
400 2.7/3mm 2.1 W/ft (7 W/m) — — Ra≥90 2700-6500K 12V/24V 0.39 in (10 mm) @12V / 0.79 in (20 mm) @24V 16 ft (5 m)/feed IP20
400 5mm 1.8 W/ft (6 W/m) @12V 179–194 lm/ft (588–636 lm/m) 98–106 lm/W Ra≥90 2700-6000K 12V/24V 0.79 in (20 mm) @12V 16 ft (5 m)/feed @12V IP20
420 4mm 1.8 W/ft (6 W/m) 148–165 lm/ft (486–540 lm/m) 81–90 lm/W Ra≥90 2700-6500K 24V 0.66 in (16.67 mm) 16 ft (5 m) IP20
400 5mm 2.4 W/ft (8 W/m) — — Ra≥90 3000-6500K 5V 0.39 in (10 mm) 6.5 ft (2 m)/feed IP20
528 3mm 1.8 W/ft (6 W/m) 165–183 lm/ft (540–600 lm/m) 90–100 lm/W Ra≥90 2700-6500K 12V 0.89 in (22.73 mm) 16 ft (5 m) IP20
528 8mm 4.0 W/ft (13 W/m) — — Ra≥90 2700-6000K 12V/24V free cut (any point) 16 ft (5 m)/feed IP20
544 10mm 3.7 W/ft (12 W/m) 339–399 lm/ft (1,113–1,308 lm/m) 93–109 lm/W Ra≥90 2700-6500K 24V 0.29 in (7.353 mm) 16 ft (5 m)/feed IP20
480 8mm 3.4 W/ft (11 W/m) 175–196 lm/ft (573–643 lm/m) 52–58 lm/W Ra≥90 2700-6000K 24V 0.16 in (4.17 mm) 16 ft (5 m)/feed IP20
320 6.6mm solder-free 2.1 W/ft (7 W/m) — — Ra≥90 3000-6500K 12V 0.49 in (12.5 mm) 10 ft (3 m)/feed IP20
280 10mm 2.9 W/ft (9.6 W/m) 343–403 lm/ft (1,124–1,322 lm/m) 117–138 lm/W Ra≥90 2700-6500K 24V 0.98 in (25 mm) 49 ft (15 m)/feed IP20
280 10mm 4.4 W/ft (14.4 W/m) 223 lm/ft (730 lm/m) RGB 51 lm/W — RGB 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP20
480 8mm 3.2 W/ft (10.5 W/m) — — — Red 620±5nm 12V / 24V 0.98 in (25 mm) @12V / 1.97 in (50 mm) @24V 16 ft (5 m)/feed IP20
320 6mm side-view 2.4 W/ft (8 W/m) — — Ra≥90 2700-6500K 12V 0.25 in (6.25 mm) 10 ft (3 m)/feed IP20
480 8mm 2.4 W/ft (8 W/m) — — Ra≥90 2700-6500K 48V 1.97 in (50 mm) 65 ft (20 m) single feed IP20
480 8mm 2.3 W/ft (7.5 W/m) — — Ra≥90 2700-6500K 24V CC 1.97 in (50 mm) 65 ft (20 m) constant current IP20
420 8mm 2.9 W/ft (9.6 W/m) 237–263 lm/ft (778–864 lm/m) 81–90 lm/W Ra≥90 2700-6000K 24V CC 1.97 in (50 mm) 65 ft (20 m) constant current IP20
420 10mm 2.9 W/ft (9.6 W/m) 237–263 lm/ft (778–864 lm/m) 81–90 lm/W Ra≥90 2700-6000K 24V CC 1.97 in (50 mm) 65 ft (20 m) constant current IP20
480 10mm in 12mm silicone extrusion 3.7 W/ft (12 W/m) 321–364 lm/ft (1,054–1,194 lm/m) 88–99 lm/W Ra≥90 2700-6000K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP67
512 10mm silicone extrusion 3.7 W/ft (12 W/m) 313–347 lm/ft (1,026–1,140 lm/m) 85–95 lm/W Ra≥90 2700-6000K 24V 2.46 in (62.5 mm) 16 ft (5 m)/feed IP67
480 10mm in 12mm silicone extrusion · -30 to 120 °C 3.0 W/ft (10 W/m) 290–305 lm/ft (950–1,000 lm/m) 95–100 lm/W Ra≥90 2700-6500K 24V 1.97 in (50 mm) 16 ft (5 m)/feed IP67

Tap a row to add that model to your quote list

Output and efficacy span the CCTs tested, warm to cool; a dash means the figure is confirmed with your quote. On 12V/24V rows, figures marked @12V or @24V are for the standard build; the other voltage is made to order.

Waterproof versions

IP options

The same strip, sealed for damp, wet or submerged locations. Pick the rating and we build the sealed version to order.

Cross-sections are illustrative; the same IP code can be built more than one way. Most models in the tables are IP20 and the silicone-extruded series is IP67; the other sealed versions are built on request. Sealing adds width and height and can shift color slightly, so the sealed size is confirmed with your quote.
Applications

Where dotless strip earns its keep

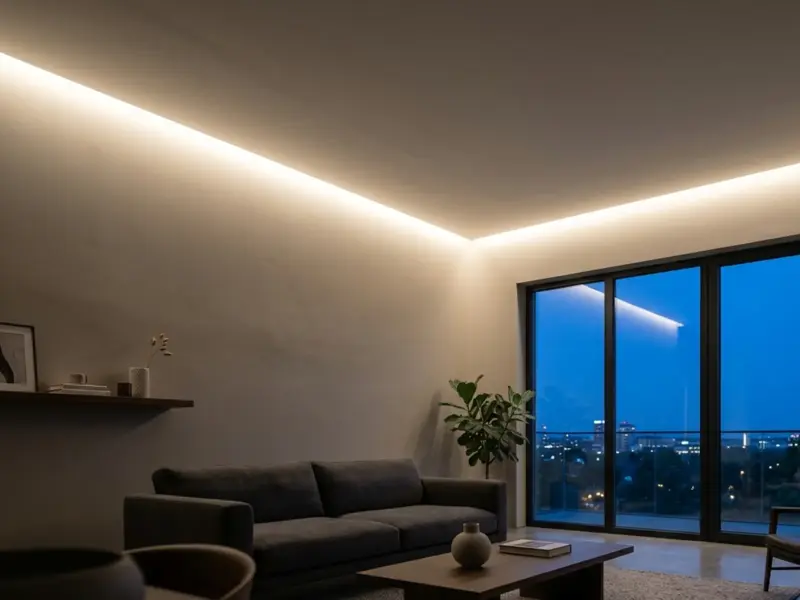

Ceiling cove washed by one continuous line of warm COB LED strip light

Coves & Ceiling Details

A continuous, dot-free line across ceiling returns and reveals — no diffuser needed to hide LED hotspots.

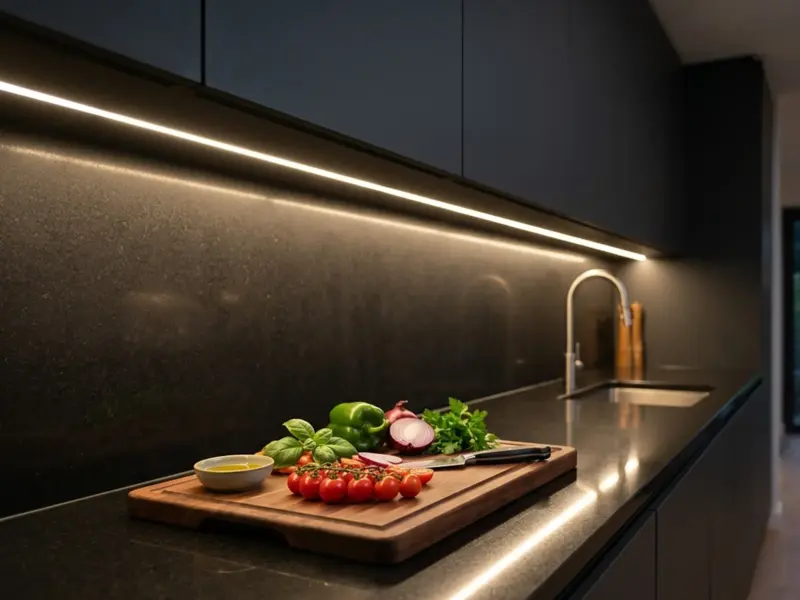

COB LED strip under kitchen cabinets casting continuous shadow-free task light on the counter

Under-Cabinet & Task

Shadow-free task light with no dotting reflected in stone or gloss surfaces; 90+ CRI renders food and finishes true.

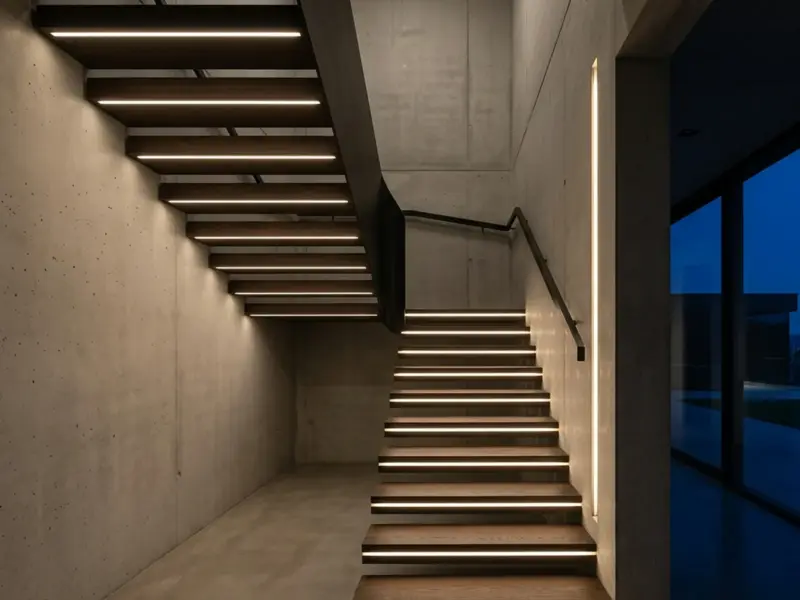

Modern staircase with COB LED strip lighting each stair nosing as one clean line

Architectural Reveals

Slots, reveals, handrails, and stair nosings lit as one clean line, spec'd to the foot at 95 CRI and ±2 SDCM.

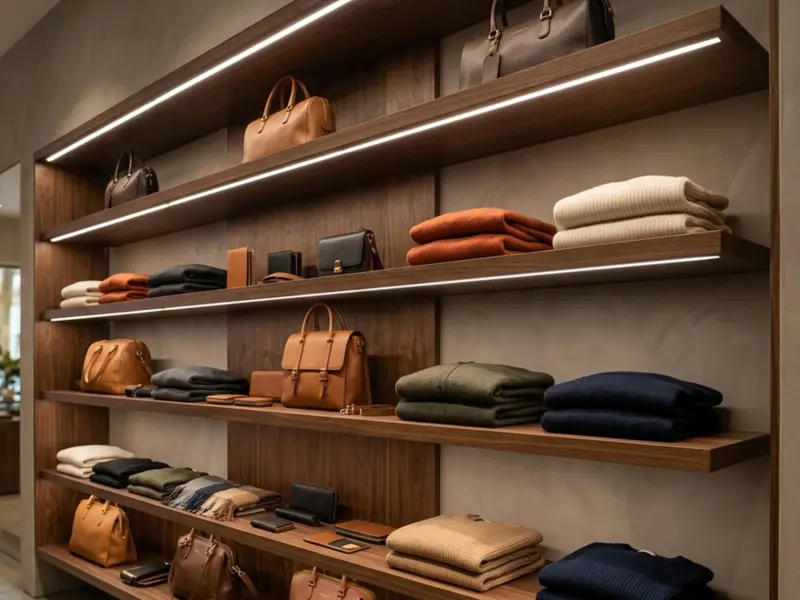

Boutique display shelves edge-lit by COB LED strip for even merchandise lighting

Retail & Display

Shelf edges, display cases, and millwork where merchandise color must read true under close, even light.

Compliance

Certifications

Products are sourced from qualified manufacturing partners, are CE Marked, and are available with UL Listed, ETL Listed, FCC compliant, RoHS compliant and other applicable configurations. Certification coverage varies by model. Certification is held by the original manufacturing partner. Documentation and listing information are available upon request.

UL ETL LM-80 CE RoHS

Projects outside North America: products are CE Marked, with RoHS compliant options and drivers matched to local mains. International orders

FAQ

COB LED strip questions

Should I choose 12V or 24V COB LED strip?

Choose 24V for most architectural work: it halves the current for the same wattage, so wire and connectors carry less and long runs need fewer feed points. 12V suits short runs under 16 ft (5 m) and systems that already run on 12V. For runs past 32 ft (10 m), our 48V series feeds up to 65 ft (20 m) from a single end.

Read the 12V, 24V and 48V guide

How do I cut COB LED strip — and where?

Cut only at the marked cut points, straight across the printed cut line with sharp shears. Standard 24V COB cuts every 25–62.5 mm; our mini-cut series steps down to 12.5 mm, the free-cut 10 mm strip to 7.35 mm and the 8 mm strip to 4.17 mm, and the free-cut series cuts at any point along the run. Re-seal IP65+ strip with an end cap after cutting.

Read the LED strip installation guide

How do I read the COB spec table above?

Read the voltage, the cut increment and the max run together. The max run column means different things on different rows: per feed on the standard rows, no voltage drop on UT-C384-8, a single feed on the 48V rows, and constant current on the CC rows. Watts per foot sizes the driver; keep the load at or below 80% of the driver rating.

Read the LED strip spec sheet guide

What is the difference between COB and SMD LED strip?

COB strip mounts bare chips under a continuous phosphor layer for a dot-free line of light; SMD strip uses discrete packaged LEDs that can show hotspots. A typical COB strip carries 280–800 chips per meter; standard SMD strip carries 60–120 packages per meter, and high-density SMD reaches 480. For channels without diffusers and edge-lit details, COB is the safer spec.

Read the COB vs SMD cove lighting guide

How long do COB LED strips last?

Rated life is L70 ≥ 50,000 hours — the point where output falls to 70% of initial. That is more than 17 years at 8 hours per day. Proper heat sinking in an aluminum channel is the single biggest factor in reaching rated life.

Read the LED strip lifespan guide

Do COB LED strips get hot?

They run warm, not hot. Mounting in an aluminum channel lowers the operating temperature and protects lumen maintenance, and series above 800 LEDs/m should always be channel-mounted. Check the model's datasheet for its thermal limits.

How many meters can I run on a single feed?

It depends on the series, and the spec table lists the limit for every model. The standard 12V/24V rows, such as UT-C320-8 and UT-C480-8, take 16 ft (5 m) per feed; UT-C384-8 lists 32 ft (10 m) with no voltage drop; the high-density rows take 10 ft (3 m) per feed; the DOB strip is rated for an even line over 49 ft (15 m); and the 48V and constant-current series feed up to 65 ft (20 m) from a single end. Longer runs use more feed points or feed from both ends.

Read the LED strip voltage drop guide

Are COB LED strips dimmable?

Yes — every white COB series dims smoothly to below 1% with a compatible driver. Pair with a TRIAC, 0-10V, or DALI dimmable driver depending on the control system; we match the driver at quote time. All pairings are verified flicker-free before shipment.

Read the LED strip dimming guide

Which COB strip suits a jewelry or retail display case?

A high-CRI COB strip, CRI 95 or above with a strong R9, in a narrow channel with an opal diffuser so the line is dotless and the stones show their color. 3000K to 4000K suits gold and warm metals, 4000K to 5000K diamonds and silver, and a tunable white strip lets one case do both.

Read the display case guide

Should I specify 3000K or 4000K COB LED strip?

Choose by what people do in the space: 3000K where they dwell, such as apartments, and 4000K where they work, such as offices and retail. Changing Kelvin changes the color of the light, not the output, watts per foot, driver or channel, so take output from the model row. Standard COB such as UT-C384-8 is listed at 2700–6500K, Ra≥90. Order each white as its own line item so the reels never mix.

Read the 3000K vs 4000K guide

More answers in our guides (1)
Request a quote

Spec your COB project

Send your project details — an engineer replies with matched strip, drivers, and documentation.

main-inquiry

We typically respond within 24 hours. No spam, ever.
