To pair LED tape with a Lutron dimmer, pick the driver from the dimmer, not the other way round: a phase dimmer needs a phase-dimmable driver set to the same phase, wired with the neutral the dimmer expects and loaded above its minimum. A 0-10V Lutron control needs a 0-10V driver. Then test one run before you install the rest.
The tape is new, the Lutron dimmer is new, and at 30 percent the cove shimmers. The usual reaction is to blame the tape or to swap the dimmer for another model. Neither touches the cause, which almost always sits in the pairing between the dimmer and the driver. The steps below follow the order a contractor meets them on a job, each with a check before the next one.
Start With the Dimmer Already Specified
On most jobs the dimmer is chosen before anyone thinks about the tape. The designer specifies a Lutron line for the whole building, the keypads match, and the tape has to work with what is on the wall. So start there and write down three things from the dimmer’s spec sheet:
- Control type. Phase (it cuts the line voltage), 0-10V (it sends a low-voltage signal to the driver), or a system module.
- Phase setting. Forward phase, reverse phase, or selectable.
- Load limits. The minimum load and the maximum load for LED drivers, which are usually much lower than the incandescent rating printed on the box.
LED tape never connects to the dimmer directly. It connects to a driver, and the driver is the load the dimmer sees. Everything below is about making that driver look like the load the dimmer was built for.
Checkpoint: you know the control type, the phase and the load limits before you choose a driver.
Forward or Reverse Phase: What the Driver Expects
Phase dimmers come in two families. Forward phase dimmers cut the front of each half-cycle. Lutron and others market many of them as MLV, for magnetic low-voltage transformers. Reverse phase dimmers cut the back of each half-cycle and are marketed as ELV, for electronic low-voltage transformers. According to Restrepo Innovations, MLV dimmers are meant for inductive loads and ELV dimmers for capacitive ones, and LED drivers with electronic front ends usually look capacitive.
That is why a dimmable LED driver is not automatically a match. A driver can be dimmable on one phase and unstable on the other. Its datasheet should say which: forward, reverse, or both. Our TRIAC driver UT-D60-24-TRC, for example, is rated for forward and reverse phase dimming on a 120 V input with 60 W of 24V output.
Lutron’s newer smart dimmers often let you choose. According to distributor listings for the Caseta PD-5NE, the dimmer ships set to reverse phase for ELV and incandescent loads and can be switched to forward phase for MLV loads and some LED loads. Lutron publishes a white paper on dimming MLV and ELV transformers with separate best practices for each, which is worth reading before a large order.
A Mike Holt forum thread shows what happens when the families are mixed: a contractor ran DC tape from a magnetic driver on an MLV dimmer, and it flickered at almost any setting below full. Treat the thread as one account, but the lesson matches the rule: match the driver to the dimmer’s phase first.
Checkpoint: the driver’s datasheet names the same phase the dimmer is set to.
Neutral, Minimum Load and Headroom
Neutral. Many reverse phase dimmers need a neutral in the box to power their electronics. According to listings for the Caseta PD-5NE, a neutral connection is required for all load types; listings for the Diva ELV+ say it is needed only for ELV loads. Models differ, so check the exact model number, and pull a neutral to every dimmer location on new work anyway.
Minimum load. A dimmer that is too lightly loaded cannot regulate well, and the low end flickers or drops out. The same PD-5NE listings give a 10 W minimum for all load types. Remember that the dimmer sees the driver’s input, not the strip’s rating: a short under-cabinet run of 4 ft at 1.5 W/ft is 6 W of strip, below that minimum before you even count driver losses. Combine short runs on one dimmer where the design allows, or move them to a 0-10V system.
Headroom. Keep each driver at or below 80 percent of its rating, the same rule our guide on how to size an LED strip power supply uses. In the forum thread above, the contractor reported that the driver maker’s support told him a 60 W driver was good for only 80 percent of its rating when dimmed. That is a secondhand account, but it is also the margin we plan on anyway.
Checkpoint: the dimmer has a neutral if its model needs one, the load sits between the dimmer’s LED minimum and maximum, and each driver is at or below 80 percent.
Lutron System Modules and Purpose-Built Drivers
On larger Lutron systems the dimmer on the wall may not be the thing that dims at all. Keypads send commands to power modules or panels in an electrical room, and those modules do the phase cutting or produce the 0-10V signal. The pairing rule does not change, it just moves: read the module’s spec sheet instead of the keypad’s, and match the driver to the module’s output type and phase.
Lutron also sells drivers designed for its own controls. According to Diode LED’s product page, the Lutron Hi-lume 1% driver for 12V and 24V tape is built for Lutron’s MLV dimmers and dims to 1 percent. When a specification names such a driver, the pairing question has already been answered by the maker, and the job is to keep the load, the wiring and the phase setting inside its instructions.
When the specification leaves the driver open, ask two questions before ordering. Does the dimmer or module maker publish a compatibility report that lists the driver? If not, has someone tested the pair? A driver that dims well on one manufacturer’s reverse phase dimmer can still misbehave on another’s, because low-end behavior depends on both designs. The test run in the next section is cheap insurance against that.
Checkpoint: you know which device does the dimming, and the driver matches that device, not the keypad.
Wire It the Way the Dimmer Expects
Most flicker that survives a correct pairing is wiring.
- One dimmer, one kind of load. Do not put a phase-dimmed driver and incandescent or fan loads on the same dimmer leg.
- Line side to the dimmer, then the driver. The dimmer switches the driver’s input. Never put a phase dimmer on the low-voltage side between the driver and the tape.
- Short secondary runs. Long 24V runs from the driver to the tape add voltage drop that shows up first at low dim levels, where the strip has the least margin.
- Multi-gang boxes. Derate the dimmers as the maker requires when they sit side by side; the fins come off and the rating drops.
Checkpoint: each dimmer feeds only drivers of the matching type, on the line side.
Test One Run Before the Rest

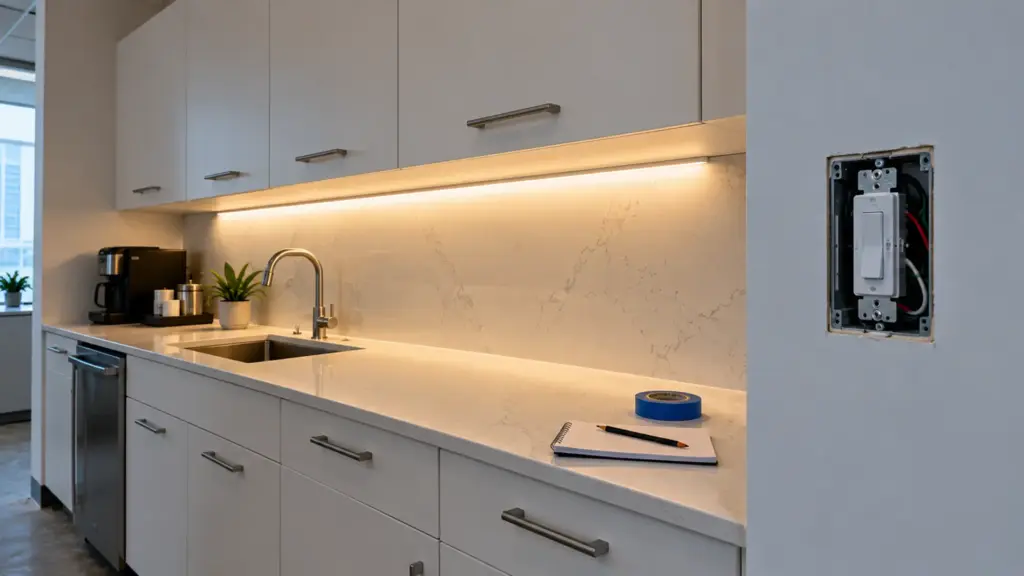

Order one driver and one length of the specified tape before the release, wire it to the actual dimmer model with a neutral, and run the full range. Our driver and dimmer compatibility test describes the bench steps; on a Lutron job the short version is:
- Set the dimmer’s phase and low-end trim to factory, then dim from full to off slowly.
- Watch for shimmer, steps or a sudden drop near the bottom.
- Switch off and look for a faint glow in a dark room.
- Raise from off to 5 percent and check that the strip comes on without popping.
- If the dimmer has a low-end trim, set it just above the point where the flicker starts.
Checkpoint: the test run dims smoothly to the trimmed low end and goes fully dark.
Symptoms and Fixes
| Symptom | Likely cause | Fix |
|---|---|---|
| Shimmer at low levels only | Low-end trim too low, or load near the minimum | Raise the low-end trim; combine runs |
| Flicker at every level | Driver and dimmer on different phases | Change the dimmer’s phase or the driver |
| Buzz at the dimmer | Wrong phase for the load, or a magnetic driver on a reverse phase dimmer | Match the phase; replace the driver |
| Faint glow when off | Leakage through the dimmer’s electronics | Add a neutral; see LED tape that glows when off |
| Pops on at 20 percent | Driver needs a minimum signal to start | Set the low-end trim to the start point |
| Drops out near the bottom | Load below the dimmer’s LED minimum | Add load or move to 0-10V |
When to Move to 0-10V Instead
Phase dimming is the right tool for retrofits where only two wires reach the box. On new work, or where the dimming has to be deep and smooth, 0-10V is easier to get right. The driver takes full line power and a separate two-wire signal sets the level, so the dimmer’s phase, neutral and minimum load stop mattering.
Lutron sells 0-10V controls as part of its lines, and any 0-10V driver can follow them as long as both sides are set to the same sink or source convention. Our 0-10V drivers, UT-D60-24-C2-010 and UT-D96-24-010, take 120 to 277 V and 100 to 277 V input. The trade-off is the extra pair of control wires, which has to be run and kept separate as the code requires. For the wider comparison, read 0-10V vs TRIAC vs DALI. If the design wants the tape to warm as it dims, look at dim-to-warm strip, which follows an ordinary dimming signal.
Final Checks
- The dimmer’s control type, phase and LED load limits are written down.
- The driver’s datasheet names the dimmer’s phase.
- A neutral reaches every dimmer that needs one.
- Load per dimmer sits above its LED minimum; drivers stay at or below 80 percent.
- Dimmers switch only the line side of matching drivers.
- One run was tested on the real dimmer model before release.
- The low-end trim is set and recorded for the commissioning sheet.
