Outdoor neon flex fails at five points: the blind end cap, the feed end, a field joint, a bend or cut unit under stress, and a feed that runs too far. Where the dark or dim stretch starts, and whether it follows rain, tells you which point failed, and the fix is often one piece, not the whole run.
The call usually comes after the first heavy rain. The canopy outline on a shopping center has a dark stretch at one end, or a hotel’s entry sign flickers for an hour and is fine again by noon. Replacing the whole run or waiting both cost more than reading the pattern first.
Read the Pattern First
Before opening anything, note where the fault starts, how far it reaches, and when it shows. Then match it:
| What you see | When it shows | Likely point | First check |
|---|---|---|---|
| Dark from the blind end back, growing over weeks | After rain, then stays | 1. Blind end cap | Open the cap: water, green or black pads |
| Whole piece flickers or drops out, back when dry | During or after rain | 2. Feed end and lead exit | Lead exit, connector, drip loop at the feed |
| Dark from a joint onward, or a warm, brown connector | Any time, worse when wet | 3. Field joint | Voltage on both sides of the joint |
| One cut unit dark, or a bright crease at a curve | Soon after install, or after movement | 4. Bend, cut unit or clip | A kink, a bend against the rated direction, a clip pressing |
| Far end dimmer, steady | Any weather | 5. Feed length | Voltage at the feed and the far end |
| Whole run off, driver ticking | Often after rain | A short at points 1 to 3, or the driver | The driver alone, then pieces one by one |
The readings themselves are the ones in our LED strip troubleshooting guide: driver first, then feed, joint and strip. Outdoors, water and movement decide where the fault sits.
Point 1: The Blind End Cap
The far, unfed end of each piece is an easy place for water to sit, because nobody looks at it after the install. When the seal there fails, water does not stop at the cap. As our guide to sealing a cut end explains, it wicks into the jacket and along the board, so the dark stretch starts at the end and creeps back one section at a time over weeks.
Three things break that seal:
- No cure before weather. A cap that got rain before its sealant cured was never sealed.
- The wrong sealant. Our pages call for a matching silicone end cap and adhesive. As general electronics practice, avoid vinegar-smelling silicone, which releases acid as it cures and can attack copper; one maker’s neon datasheet also warns against any acid or alkaline adhesive on the light, glass glue included.
- Movement at the end. The same datasheet says not to flex the profile side to side within about 6 in (150 mm) of the end cap. An end left hanging past its last clip moves in the wind and works the seal loose.
Open the cap and look at the last pads. Clean copper and a wet cap means the seal failed but the board survived. Green or black pads mean the water has been there a while and has moved further in.
With clean pads, dry the end, fit a new matching cap with the sealant the maker specifies, and let it cure before power and weather. With corroded pads, cut back on the next mark to clean copper and re-cap there, if the piece can give up that length. If it cannot, the piece is replaced; the table below sorts the cases.
Point 2: The Feed End and Lead Exit
The feed end carries the lead, and the lead carries water. According to Signlite, rainwater can travel along the power cable and collect near the connector, and connectors that face upward hold water longer after rain. The symptom is the most confusing one: the whole piece flickers or drops out during rain and is fine again once it dries.
Check how the lead leaves the piece. A lead pulled tight across a parapet edge strains the cap seal whenever the profile moves. A connector lying face up in a gutter fills with water. A drip loop just before the cap sends water off the bottom of the loop instead of into the end. On new work, the exit can be chosen: our assemblies leave from the end cap, the back or the side, depending on the profile, and where the profile allows it, a back exit through the mounting surface keeps the lead out of the weather.
Point 3: Field Joints and Connectors
Every joint made on site is a seal made on a ladder. One neon maker’s installation manual tells installers to use dielectric grease and shrink tube at all power connections, end cap included, when the product goes outdoors. Joints made without that let moisture into the contacts.
Moisture in a joint shows two ways. Corroded contacts can add resistance, so the joint warms up and the connector browns: a hot spot you can feel, which can also come from too much current through too small a contact. Or water bridges the contacts and shorts the run. GlowLab’s troubleshooting guide lists water ingress and misaligned connector pins among the causes of shorts, and notes that a shorted fixture may make the supply tick.
Take the reading on both sides of the joint. If the voltage drops across it, the joint is the fault. Replace the joint rather than cleaning it, and make the new one at least as sealed as the profile. Our connector guide explains why: our connectors reach IP65, so a joint on IP67 neon is soldered and sealed or moved into a junction box, or to the dry side of the wall where you can.
Point 4: Bends, Cut Units and Clips
A single dark cut unit, 3.94 in (100 mm) on our standard profiles, usually points to mechanical damage. GlowLab traces broken cutting units mostly to bending and handling, with water a less common cause, and shows four units broken by bending a fixture’s end against its rated bending direction. Our rule is the same: bend only in the rated direction and never below the rated radius, 2.36 to 3.94 in (60 to 100 mm) on most top-bend profiles and 4.72 to 5.91 in (120 to 150 mm) on side-bend ones. A bright crease at a curve is the same fault seen from outside. Our neon selection guide matches the bend type to the shape.
A profile that sags between clips moves in wind and heat, and the movement concentrates at the clip and the next bend. Follow the clip spacing on the profile’s install sheet, and add a clip close to both sides of every corner and every end, as our neon installation guide shows. A clip that pinches the profile can damage the board under it, and the result looks like a bend fault.
Heat is the quieter cause. One maker’s 10×10 mm silicone neon datasheet lists a maximum ambient of 55°C at 5 W/m but only 45°C at 10 W/m. Our UT-N1010-TB runs at 3.0 W/ft (10 W/m). Our pages give no ambient rating per model, so for neon on a dark, sun-facing fascia, ask for it with the quote.
Point 5: Feed Length and the Driver
A far end that is dimmer in every kind of weather is not a water fault. It is a piece longer than its rated run per feed. Our standard 24V profiles run 16 ft (5 m) per feed; the constant-current profiles run 49 to 98 ft (15 to 30 m) on one feed, 49 ft (15 m) on UT-N1212-TB and 82 ft (25 m) on UT-N1616-SB, for example. A reel is a supply length, not a run, as our reel vs run guide explains. The fix is a second feed or a split, not a new reel.

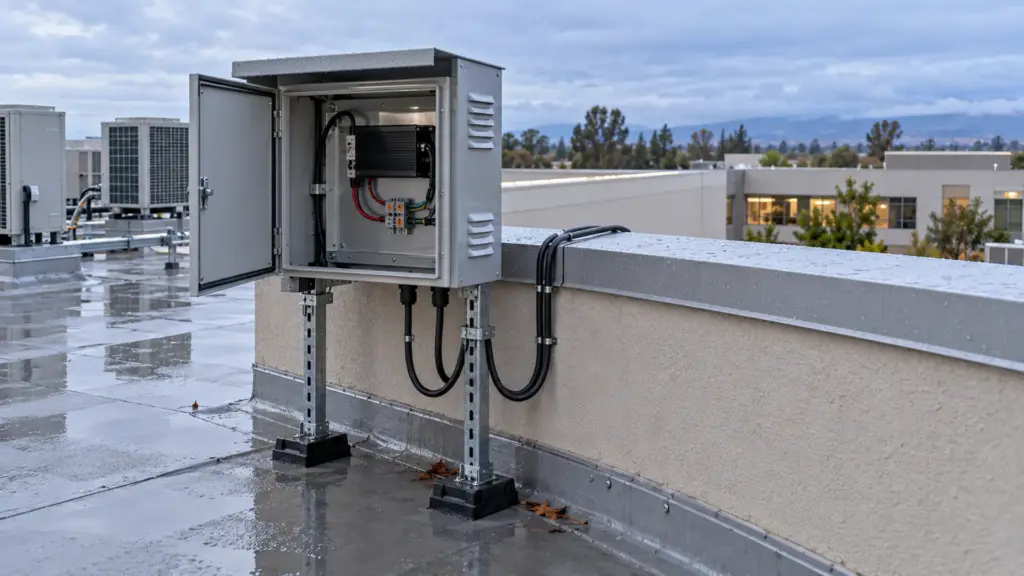

The driver can fail with the weather too. A driver that cuts out on hot afternoons points to heat at the driver; one that drops out after rain points to water at the driver or a short downstream. Test the driver alone first, as our driver troubleshooting guide shows. Outdoors, it belongs in a dry, ventilated place or in a potted IP67 housing, out of the sun and the runoff, and it must match the profile: a 24V constant-voltage supply such as the potted UT-D100-24-67 for the standard profiles, and a constant-current driver for the constant-current ones, never a 24V constant-voltage supply.
Dry-Out Is a Diagnosis, Not a Repair
A section that comes back once it dries has told you water got in. It will get in again with the next rain, and the corrosion it started keeps working in between. Signlite notes that damage from snow and freeze-thaw may not appear until weeks after winter, as corrosion develops inside connections.
Treat recovery as evidence. Before changing anything, photograph the dark stretch lit, the end cap, the lead exit and every joint, and note the piece and its location. That record matters: our warranty excludes “cut ends not sealed as instructed” and moisture exposure beyond the product’s IP rating, so the claim depends on showing what failed. Our guide to documenting a strip failure lists the photos and readings.
Repair or Replace the Piece
| Point | A field repair works when | Replace the piece when |
|---|---|---|
| 1. Blind end cap | Pads are clean; re-cap with a matching cap and the specified sealant, then cure | Pads are corroded, or water has moved past the last cut unit you can give up |
| 2. Lead exit | Water stayed in the connector, the jacket is intact | Water has run into the piece |
| 3. Field joint | Always replace the joint itself | A pad next to the joint is burnt |
| 4. Bend or cut unit | Only when the broken unit is at an end that can be cut off and re-capped | Any broken unit or kink inside the lit length |
| 5. Feed length | Add a feed or split the piece | Rarely needed |
Cutting back to clean board shortens the lit length by whole cut units, so check the piece still covers its run. A replacement piece from a later production can show a color step next to the old ones, which our color mismatch guide explains; order spare pieces with the original job where the outline is long and visible.
Final Checks After the Repair
- Every repaired end cured for the time on the sealant’s sheet before power and before water.
- The piece powered end to end, at full output and at the dim level it runs at.
- Every end clipped close to the cap, every lead in a drip loop, every connector facing down or in a box.
- Voltage at the feed and the far end recorded with the photos.
Replacement pieces we build to a drawing come cut on the mark, wired, sealed, cured and tested end to end; our custom neon assemblies page covers what to send, and the LED neon flex range lists the profiles.
